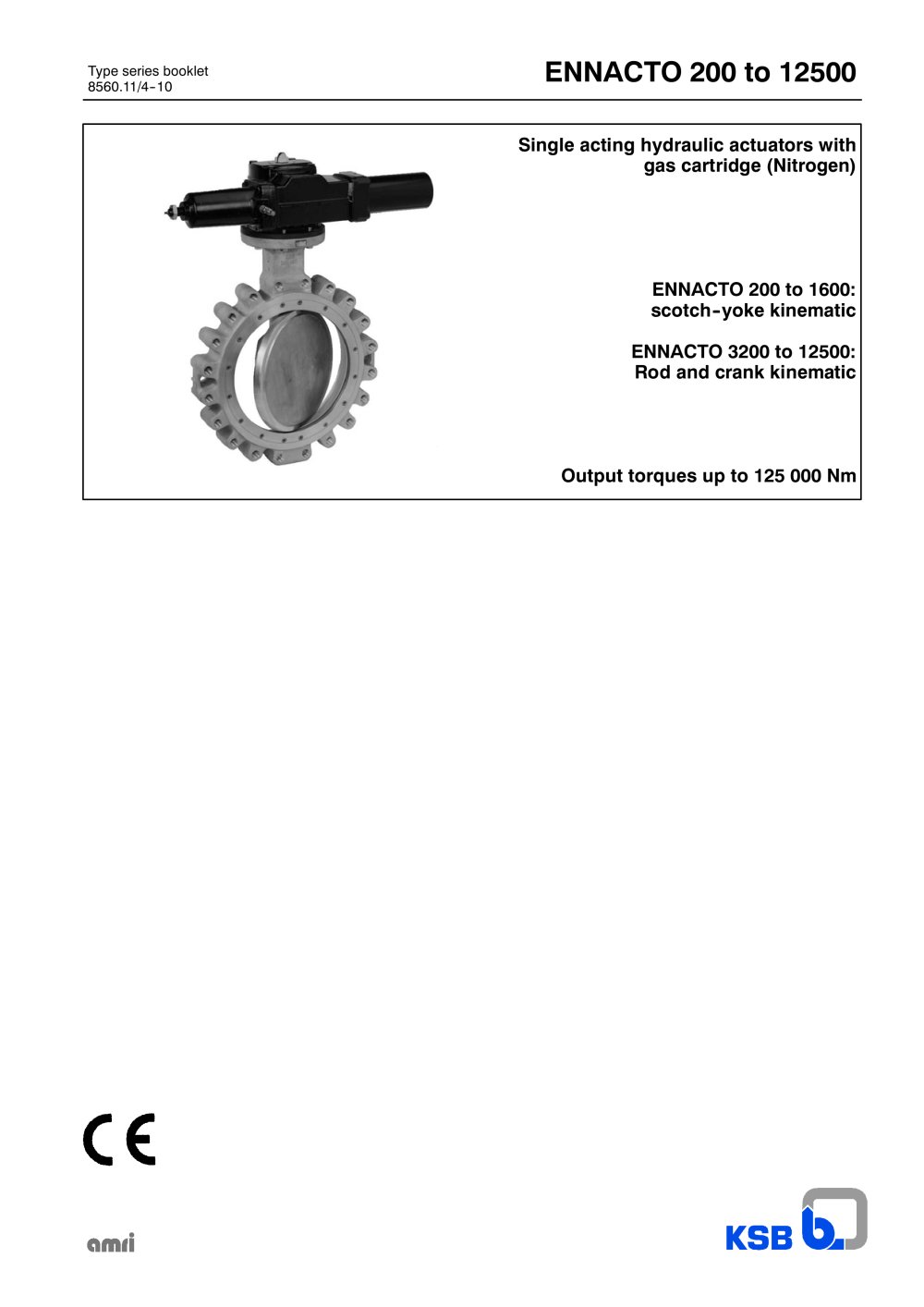

Type series booklet 8560.11/4--10 ENNACTO 200 to 12500 Single acting hydraulic actuators with gas cartridge (Nitrogen) ENNACTO 200 to 1600: scotch--yoke kinematic ENNACTO 3200 to 12500: Rod and crank kinematic Output torques up to 125 000 Nm

Open the catalog to page 1

ENNACTO 200 to 12500 2 General features Designed for the operation of ¼ turn valves (butterfly valves, ball valves, …), the ENNACTO series of single acting hydraulic actuators with gas cartridge (Nitrogen) develop output torques up to 125 000 Nm. The production range consist of 7 units: -- ENNACTO 200, ENNACTO 400, ENNACTO 800 and ENNACTO 1600, based on scotch--yoke kinematics, -- ENNACTO 3200 , ENNACTO 6400 and ENNACTO 12500, based on rod and crank kinematics. The energy accumulator is a compressed gas cartridge (Nitrogen). In the standard version, these actuators are hose and fine dust...

Open the catalog to page 2

ENNACTO 200 to 12500 4 Operation ENNACTO 200 to 1600: yoke and slide kinematics The yoke and slide kinematics develops variable output torque very well suited to the operation of¼turn valves with hydrodynamic torque. The movement transmission is achieved by means of the piston system .., the slide operating nut .., the rolling pad .. and the yoke ... The translation of the piston .. secured by the pressure in the actuator cylinder causes the linear travel of the operating nut ... This movement drives the sliding of the pads .. in the 2 slides of the operating nut .. and allows the rotation...

Open the catalog to page 4

ENNACTO 200 to 12500 5 ENNACTO 200 to 1600 Version with closing upon missing oil pressure Opening by control oil pressure Actuator/Valve closed Actuator/Valve open Actuator/Valve open Actuator/Valve closed Closing operation with nitrogen cartridge Opening operation with nitrogen cartridge Closing by control oil pressure Version with opening upon missing oil pressure Actuator/Valve open Actuator/Valve closed Actuator/Valve closed Actuator/Valve open P P P P E E E E Nitrogen cartridge Hydraulic actuator Hydraulic actuator Nitrogen cartridge

Open the catalog to page 5

ENNACTO 200 to 12500 6 ENNACTO 3200 to 12500: Rod and crank kinematics The rod and crank kinematics develops variable output torque very well suited to the operation of ¼ turn valves. The translation of hydraulic actuator .. causes the translation of arm ... This translation movement is converted into a ¼ turn rotational movement of chuck .., integral with the valve shaft. This conversion movement is effected via the connecting rods whose length defines an exact and invariable position of the chuck during the closing operation. The control fluid pressure ensures at once the valve operation...

Open the catalog to page 6

ENNACTO 200 to 12500 7 ENNACTO 3200 to 12500 Version with closing upon missing oil pressure Opening by control oil pressure Actuator/Valve closed Actuator/Valve open Actuator/Valve open Actuator/Valve closed Closing operation with nitrogen cartridge Opening operation with nitrogen cartridge Closing by control oil pressure Version with opening upon missing oil pressure Actuator/Valve open Actuator/Valve closed Actuator/Valve closed Actuator/Valve open P P P P E E E E Nitrogen cartridge Hydraulic actuator Hydraulic actuator Nitrogen cartridge

Open the catalog to page 7

ENNACTO 200 to 12500 9 ENNACTO 200 to 1600 – Construction Item Designation Materials 103 Housing JS 1030 ductile iron 141.1 Cylinder ASTM A536 gr.60--40--18 ductile iron 141.2 .. Cylinder ASTM A536 gr.60--40--18 ductile iron 142 Cover JS 1030 ductile iron 310.1 Self--lubricating bearing Stainless steel + PTFE 310.2 .. Self--lubricating bearing Stainless steel + PTFE 310.3 Self--lubricating bearing Stainless steel + PTFE 310.4 .. Self--lubricating bearing Stainless steel + PTFE 310.5 Self--lubricating bearing Stainless steel + PTFE 412.1 O--Ring Nitrile 412.2 .. O--Ring Nitrile 412.3 .....

Open the catalog to page 9

ENNACTO 200 to 12500 11 ENNACTO 3200 – Construction Item Designation Materials 103 Housing JS 1030 ductile iron 141 Cylinder ASTM A536 gr.60--40--18 ductile iron 160 Cover JS 1030 ductile iron 210 Shaft Steel 300 Bearing Stainless steel + PTFE 310.1 Self--lubricating bearing Stainless steel + PTFE 310.2 Self--lubricating bearing Stainless steel + PTFE 310.3 Self--lubricating bearing Stainless steel + PTFE 314 Thrust bearing Stainless steel 32--1 Needle Treated steel 412.1 .. O--Ring Nitrile 412.2 .. O--Ring Nitrile 412.3 .. O--Ring Nitrile 412.4 .. O--Ring Nitrile 412.5 .. O--Ring Nitrile...

Open the catalog to page 11

ENNACTO 200 to 12500 13 ENNACTO 6400 and 12500 – Construction Item Designation Materials 103 Housing JS 1030 ductile iron 141 Cylinder ASTM A536 gr.60--40--18 ductile iron 160 Cover ASTM A536 gr.60--40--18 ductile iron 210 Shaft Bronze 300 Bearing Bronze 310 Self--lubricating bearing Stainless steel + PTFE 314 Thrust bearing Stainless steel type 304 321 Ball bearing Treated steel 412.1 .. O--Ring Nitrile 412.2 .. O--Ring Nitrile 412.3 .. O--Ring Nitrile 412.4 .. O--Ring Nitrile 415 .. Leap seal ring Nitrile 486 .. Ball Stainless steel 540.1 Bush Phosphated steel 540.2 Bush Phosphated steel...

Open the catalog to page 13

ENNACTO 200 to 12500 15 Mounting on valves The actuator can be positioned in four positions, at intervals of 90° . When the actuator is supplied on a valve and unless otherwise stated on the order, the actuator is mounted according to the arrangement N position1. If the actuator is equipped with a declutchable manual override, the actuator is mounted in accordance with the arrangement M position 2. ENNACTO 400 to 1600 Arrangement N Arrangement M Position 1 Position 2 Position 1 Position 2 Flow pressure direction on the valve ENNACTO 3200 to 12500 Arrangement N Arrangement M Position 1...

Open the catalog to page 15

ENNACTO 200 to 12500 16 External coating -- Protection Standard protection: • anti--corrosion primary coating (cataphoresis), thickness 20--25 ìm. • anti--corrosion secondary coating by polyurethane paint, thickness 80--100 ìm, colour dark grey RAL 7016. This protection has been tested in our laboratories for use in saline fog, according to NFX 41--002 standard. Submersible actuators: • anti--corrosion primary coating (cataphoresis), thickness 20--25 ìm. • anti--corrosion finition touch by bituminous epoxy paint, thickness 80--100 ìm, colour black. This protection has been tested in our...
