Product catalog summary

Product Introduction
The document introduces the CTN series of chemical shaft-driven sump pumps, designed for handling chemically aggressive liquids, including those slightly contaminated or with low solids content. The CTN-H variant is suitable for liquids that require warm or hot conditions for pumping.

Fields of Application
These pumps are applicable in the chemical and petrochemical industries.

Design Specifications
The CTN pumps are vertical, radially split shaft-driven sump pumps with a double volute casing. They can be installed in wet or dry conditions and feature a radial impeller, available in single-flow, single- and double-stage configurations. The shaft seal is designed to avoid contact with the pumped product.

Operating Data

Capacities: Up to 220 l/s (800 m3/h)
Heads: Up to 93 m
Pump sizes: DN 25 to 250
Operating pressures: Up to 16 bar
Operating temperatures: -70°C to +300°C

Certification
The pumps are certified under ISO 9001 quality management standards.

Materials
The document lists materials used for various components of the CTN and CTN-H pumps, including options for different material variants depending on the pumped liquid.

Design Features

Thrust bearing with minimal axial movement, adjustable rotor.
Discharge pipe designed for easy installation.
Pressure-retaining components manufactured with corrosion allowance.
Shaft seal options include gland packing or mechanical seal.
Interchangeable soleplate design for certain pump sizes.
Modular design allows variable installation depth.
Product-lubricated plain bearings.
Replaceable casing wear rings.
Double volute design reduces load on bearings.

Contact Information
KSB Aktiengesellschaft, P.O. Box 1361, 91253 Pegnitz, Germany. Tel: +49 9241 71-0, Fax: +49 9241 71-1791, Website: www.ksb.com

Catalog excerpts

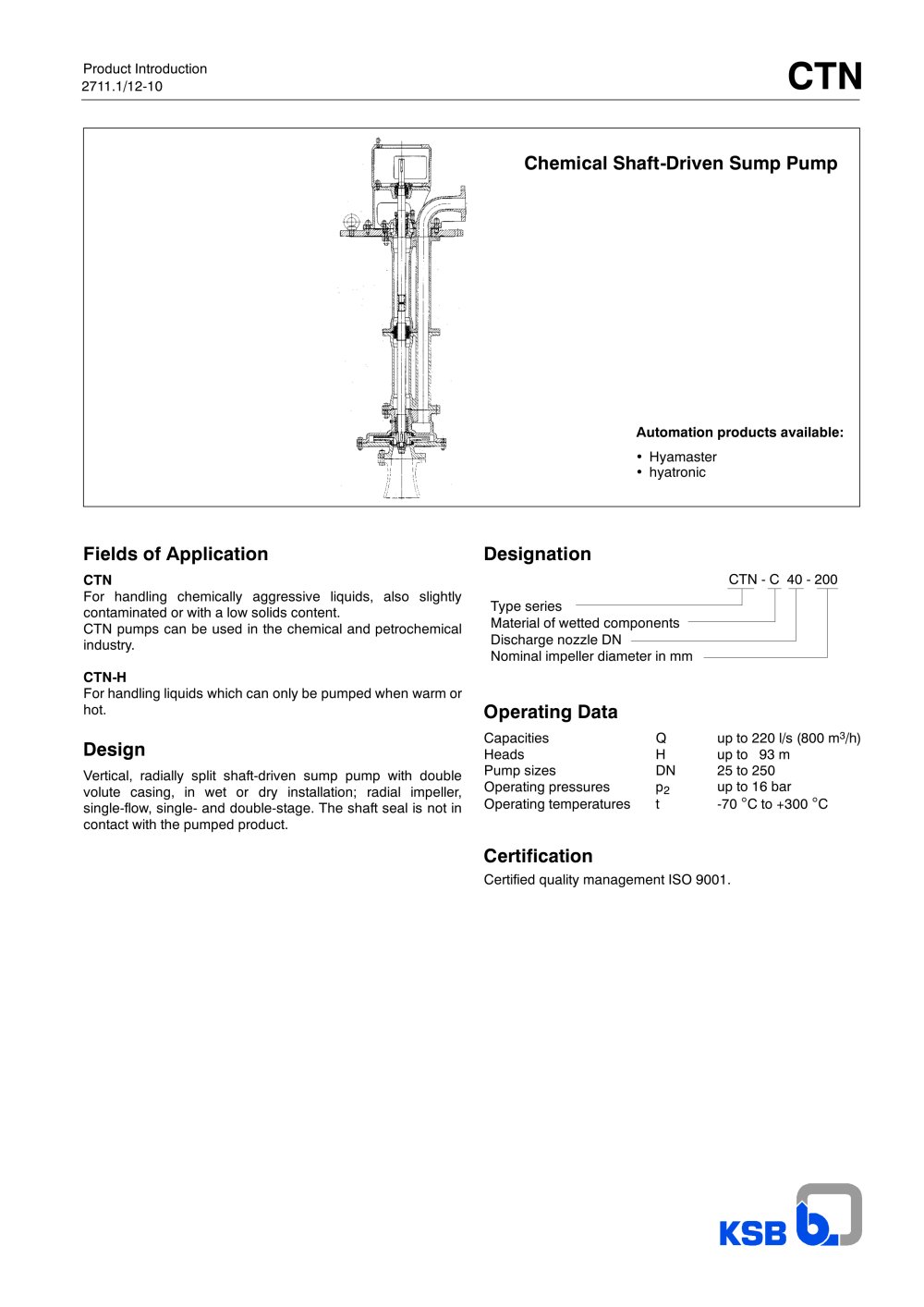

Automation products available: Hyamaster hyatronic CTN - C 40 - 200 Type series Material of wetted components Discharge nozzle DN Nominal impeller diameter in mm Product Introduction 2711.1/12-10 CTN Chemical Shaft-Driven Sump Pump Fields of Application CTN For handling chemically aggressive liquids, also slightly contaminated or with a low solids content. CTN pumps can be used in the chemical and petrochemical industry. CTN-H For handling liquids which can only be pumped when warm or hot. Design Vertical, radially split shaft-driven sump pump with double volute casing, in wet or dry installation; radial impeller, single-flow, single- and double-stage. The shaft seal is not in contact with the pumped product. Designation Operating Data Capacities Q up to 220 l/s (800 m3/h) Heads H up to 93 m Pump sizes DN 25 to 250 Operating pressures p2 up to 16 bar Operating temperatures t -70 C to +300 C Certification Certified quality management ISO 9001.

Open the catalog to page 1

-70 -30 0 80 120 200 250 300 16 13 11 9,5 0 11,5 Product temperature in C Max. pump discharge pressure in bar 1.4408 GG-25 CTN 3 Pressure and Temperature Limits Materials Part No. Description CTN/CTN-H Material G Material C 102 108 153 162 210 230 341 344 350.04 452.02 454.02 458.02 502.01 bis .04 529.01/.03 545.01/.03 71-9.01/.02 72-1 852 893.02 Volute casing Stage casing Suction nozzle Suction cover Shaft Impeller Motor stool Bearing bracket lantern Guide bearing housing 3) Gland cover Stuffing box ring Lantern ring Casing wear ring Bearing sleeve Bearing bush Pipe assembly Flanged elbow Threaded...

Open the catalog to page 3

2711.1/12-10 1.12.2005 Subject to technical modification without prior notice. Thrust bearing little axial movement of the rotor; held in position by the shaft nut. Rotor adjustable on mounted pump Discharge pipe raised above the sole- plate, easy and quick installation without drain- ing the tank Pressure-retaining components selected in well-proven calculation procedure, manu- factured as quality casting with corrosion allowance Shaft seal not in contact with the pumped product, gland packing or mechanical seal possible Soleplate round, interchangeable among certain pump sizes, odour- and gasproof...
