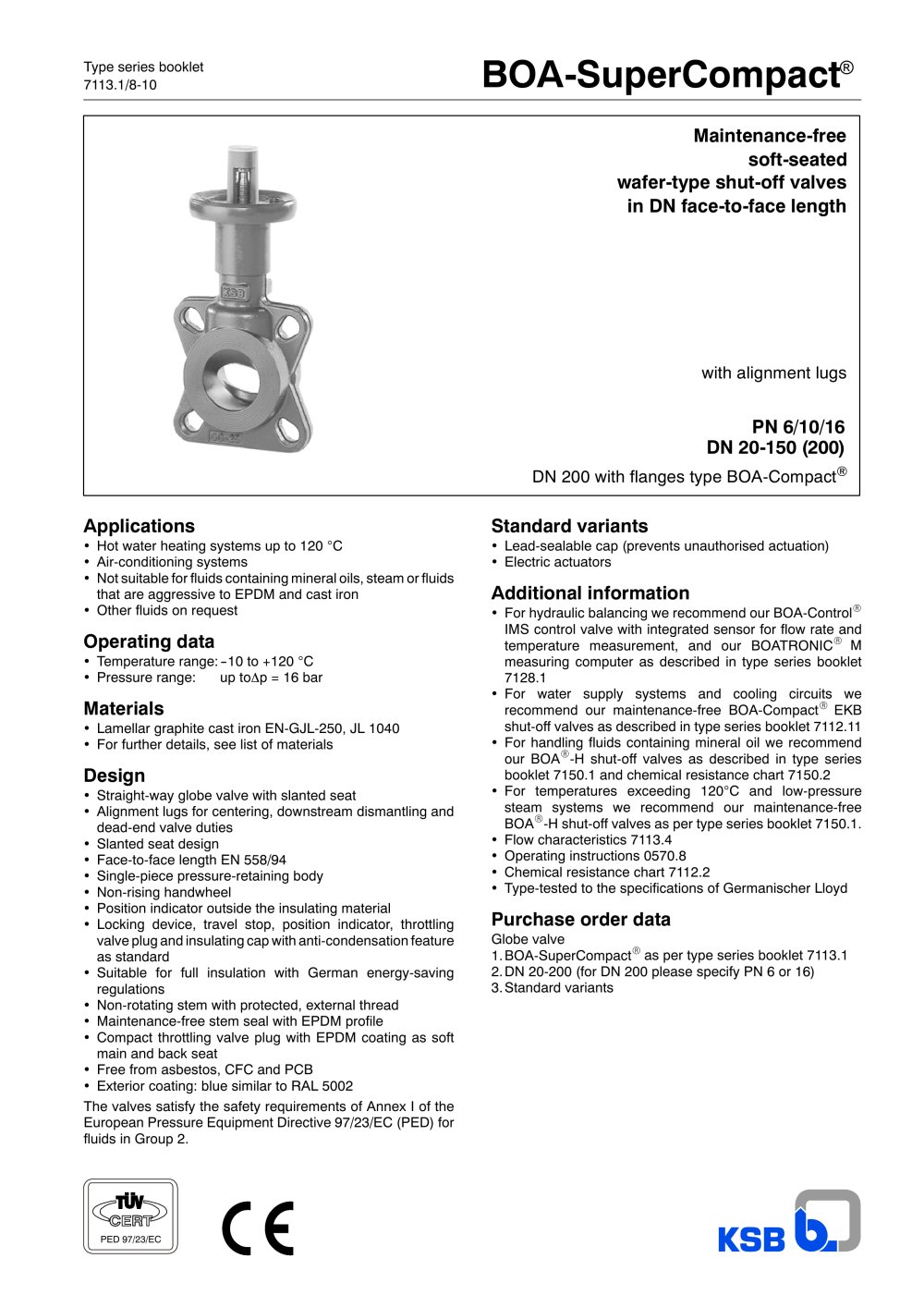

Type series booklet 7113.1/8-10 BOA-SuperCompact® wafer-type shut-off valves PN 6/10/16 DN 20-150 (200) with alignment lugs soft-seated Maintenance-free in DN face-to-face length DN 200 with flanges type BOA-Compact® Applications • Hot water heating systems up to 120 °C • Air-conditioning systems • Not suitable for fluids containing mineral oils, steam or fluids that are aggressive to EPDM and cast iron • Other fluids on request Operating data • Temperature range: --10 to +120 °C • Pressure range: up toÄp = 16 bar Materials • Lamellar graphite cast iron EN-GJL-250, JL 1040 • For further details, see list of materials Design • Straight-way globe valve with slanted seat • Alignment lugs for centering, downstream dismantling and dead-end valve duties • Slanted seat design • Face-to-face length EN 558/94 • Single-piece pressure-retaining body • Non-rising handwheel • Position indicator outside the insulating material • Locking device, travel stop, position indicator, throttling valve plug and insulating cap with anti-condensation feature as standard • Suitable for full insulation with German energy-saving regulations • Non-rotating stem with protected, external thread • Maintenance-free stem seal with EPDM profile • Compact throttling valve plug with EPDM coating as soft main and back seat • Free from asbestos, CFC and PCB • Exterior coating: blue similar to RAL 5002 The valves satisfy the safety requirements of Annex I of the European Pressure Equipment Directive 97/23/EC (PED) for fluids in Group 2. Standard variants • Lead-sealable cap (prevents unauthorised actuation) • Electric actuators Additional information • For hydraulic balancing we recommend our BOA-ControlR IMS control valve with integrated sensor for flow rate and temperature measurement, and our BOATRONICR M measuring computer as described in type series booklet 7128.1 • For water supply systems and cooling circuits we recommend our maintenance-free BOA-CompactR EKB shut-off valves as described in type series booklet 7112.11 • For handling fluids containing mineral oil we recommend our BOAR-H shut-off valves as described in type series booklet 7150.1 and chemical resistance chart 7150.2 • For temperatures exceeding 120°C and low-pressure steam systems we recommend our maintenance-free BOAR-H shut-off valves as per type series booklet 7150.1. • Flow characteristics 7113.4 • Operating instructions 0570.8 • Chemical resistance chart 7112.2 • Type-tested to the specifications of Germanischer Lloyd Purchase order data Globe valve 1.BOA-SuperCompactR as per type series booklet 7113.1 2.DN 20-200 (for DN 200 please specify PN 6 or 16) 3.Standard variants PED 97/23/EC

Open the catalog to page 1

BOA-SuperCompactR 2 Test and operating pressures Nom. pressure Nom. diam. Shell/Body pressure test Leak test Max. permissible with water operating pressures P10, P11 P12 PN DN bar 1) bar 2) bar 3) 4) 16 20/25-200 24 17.6 16 1) DIN EN 12266-1 (P10, P11) 2) DIN EN 12266-1 (P12, leakage rate A) 3) up to a fluid temperature of 120 °C 4) Static load DN 20-150 DN 200 *) shown offset by 90° *) *) Materials Part No. Description Material Comments 100 Body EN-GJL-250 (JL1040) 200 Stem Stainless steel, min. 13 % Cr 350 Valve plug Cast iron/EPDM 410 Profile joint Elastomer EPDM 412 O-ring 431 Gland...

Open the catalog to page 2

BOA-SuperCompactR 4 Bolt dimensions Hex. head bolts used on Threaded rods/stud bolts used on Rated Rated Qty. Thread steel flanges DIN EN cast iron flanges DIN EN steel flanges DIN EN cast iron flanges pressure diameter size DIN EN 1092-1 1092-2 1092-1 1092-2 PN DN Standardised bolt length (mm) Length (mm) PN 6 20 M10 80 90 25 32 90 105 40 4 M12 100 110 50 110 120 65 120 130 135 80 150 160 100 180 180 125 8 M16 200 210 150 220 240 200 16 70 80 90 PN 10 / PN 16 20 M12 90 95 25 32 4 100 110 40 110 120 50 120 135 65 M16 140 150 80 160 170 100 8 180 190 125 200 220 220 150 M20 240 255 PN 16 200...

Open the catalog to page 4

BOA-SuperCompactR 5 Body with DN face-to-face length (face-to-face length to EN 558/94) Your benefits: • Savings in shipping costs • Easy to install • Low space requirement • Easy to remember. Single-piece pressure-retaining body Your benefits: • Zero leakage to atmosphere • No retightening of bonnet bolts • No spare parts costs for bolts and bonnet gasket • Suitable for full insulation in acc. with German energy-saving regulations Product Features -- to Our Customers’ Benefit (1) Well-proven compact valve technology -- now also in wafer-type design Stem seal with EPDM profile proven a...

Open the catalog to page 5

BOA-SuperCompactR 6 Cap with position indicator outside the insulating material as standard Your benefits: • Valve disc position can always be checked • Travel stop protection Locking device as standard Your benefits: • Lower inventory costs • No retrofitting required Fully EPDM coated corrosion-proof throttling valve plug as standard Your benefits: • One model for shut-off and throttling means inventory costs are reduced • Linear flow characteristic Product Features -- to Our Customers’ Benefit (2) All features built into a single valve as standard: Tight-fitting insulating cap with...

Open the catalog to page 6

KSB Aktiengesellschaft Johann-Klein-Strasse 9 • 67227 Frankenthal (Germany) Tel.: +49 6233 86-0 • fax: +49 6233 86-3439 E-mail: valves@ksb.com • www.ksb.com Subject to technical 7113.1/8-10 01.08.2009 modification without prior notice. BOA-SuperCompactR
