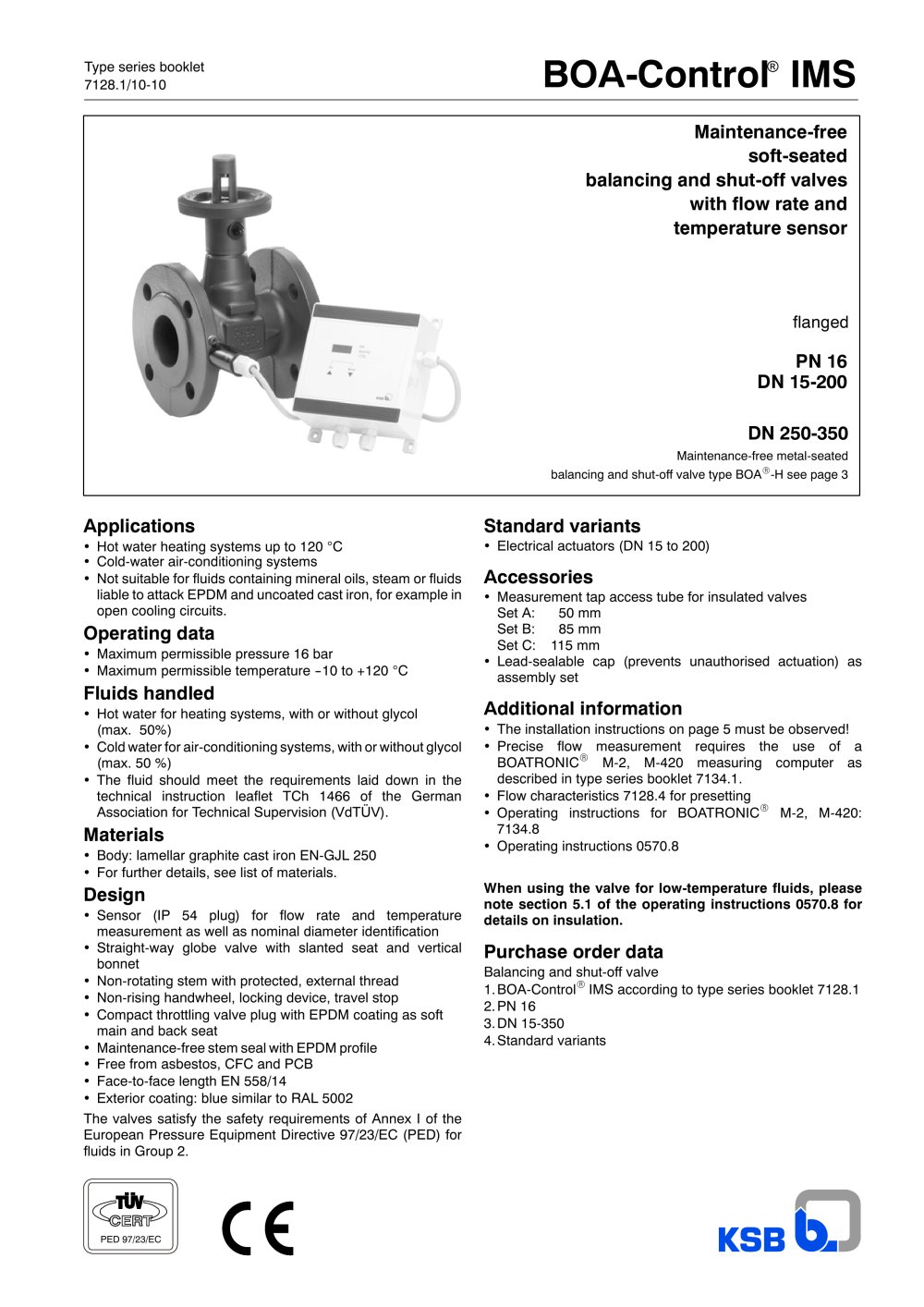

Type series booklet 7128.1/10-10 BOA-Control® IMS PN 16 DN 15-200 flanged Maintenance-free soft-seated balancing and shut-off valves with flow rate and temperature sensor DN 250-350 Maintenance-free metal-seated balancing and shut-off valve type BOAR-H see page 3 Applications • Hot water heating systems up to 120 °C • Cold-water air-conditioning systems • Not suitable for fluids containing mineral oils, steam or fluids liable to attack EPDM and uncoated cast iron, for example in open cooling circuits. Operating data • Maximum permissible pressure 16 bar • Maximum permissible temperature --10 to +120 °C Fluids handled • Hot water for heating systems, with or without glycol (max. 50%) • Cold water for air-conditioning systems, with or without glycol (max. 50 %) • The fluid should meet the requirements laid down in the technical instruction leaflet TCh 1466 of the German Association for Technical Supervision (VdTÜV). Materials • Body: lamellar graphite cast iron EN-GJL 250 • For further details, see list of materials. Design • Sensor (IP 54 plug) for flow rate and temperature measurement as well as nominal diameter identification • Straight-way globe valve with slanted seat and vertical bonnet • Non-rotating stem with protected, external thread • Non-rising handwheel, locking device, travel stop • Compact throttling valve plug with EPDM coating as soft main and back seat • Maintenance-free stem seal with EPDM profile • Free from asbestos, CFC and PCB • Face-to-face length EN 558/14 • Exterior coating: blue similar to RAL 5002 The valves satisfy the safety requirements of Annex I of the European Pressure Equipment Directive 97/23/EC (PED) for fluids in Group 2. Standard variants • Electrical actuators (DN 15 to 200) Accessories • Measurement tap access tube for insulated valves Set A: 50 mm Set B: 85 mm Set C: 115 mm • Lead-sealable cap (prevents unauthorised actuation) as assembly set Additional information • The installation instructions on page 5 must be observed! • Precise flow measurement requires the use of a BOATRONICR M-2, M-420 measuring computer as described in type series booklet 7134.1. • Flow characteristics 7128.4 for presetting • Operating instructions for BOATRONICR M-2, M-420: 7134.8 • Operating instructions 0570.8 When using the valve for low-temperature fluids, please note section 5.1 of the operating instructions 0570.8 for details on insulation. Purchase order data Balancing and shut-off valve 1.BOA-ControlR IMS according to type series booklet 7128.1 2.PN 16 3.DN 15-350 4.Standard variants PED 97/23/EC

Open the catalog to page 1

BOA-ControlR IMS 2 Test and operating pressures Nominal pressure Nominal diameter Material Shell/Body pressure test Leak test Max. permissible operating pressures in bar at temperatures Permissible differential pressure with water in °C, to EN 1092-2 P10, P11 P12 PN DN bar 1) bar 2) --10 to +120 °C 3) DN Äp in bar 16 15-300 EN-GJL-250 24 17 6 16 250 9 350 EN-GJS-400-18-LT 17.6 16 300/350 6 1) DIN EN 12266-1 (P10, P11) 2) DIN EN 12266-1 (P12 Leakage rate A) 3) Static load BOA-ControlR IMS, type BOAR-Compact, DN 15-200 DN 15-150 DN 200 Measurement tap access tube for insulated valves Set A, B...

Open the catalog to page 2

BOA-ControlR IMS 3 BOA-ControlR IMS, type BOAR-H, DN 250-350 Materials Part No. Description DN Material Material No. 100 Body 250-300 EN-GJL-250 JL1040 350 EN-GJS-400-18-LT JS1025 161 Bonnet 250-300 EN-GJL-250 JL1040 350 EN-GJS-400-18-LT JS1025 314 Thrust bearing Stainless steel/PTFE 352 Throttling valve plug C22+N-NP 411 Joint ring CrNiSt graphite 440 Bellows set consisting of: 200 Stem Stainless steel, min. 13 % Cr 401 Weld ring Stainless steel 442 Bellows X 6 CrNi 18 10 1.4541 454 Stuffing box ring Stainless steel 45-6 Stuffing box screw Galvanised steel 461 Gland packing Pure graphite...

Open the catalog to page 3

BOA-ControlR IMS 4 Dimensions and installation variants Dimensions a2, d2 and d3: Clearance for insulation With access tube for insulated valves 50 mm Minimum distance from adjoining building structure DN 15-200 DN 250-350 Sensor Insulation Set A, B or C (access tube) Minimum distance from adjoining building structure with electric actuator DN 15-200 Dimensions (mm) Weight Insulation thickness in mm / Set variant 1) PN DN I h1 d1 d2 a1 a2 D k n x d3 b approx. kg 0--10 11--20 21--30 31--40 41--50 16 15 115 95 65 14 2.3 Set A Set A Set A Set A Set B 20 120 156 80 105 105 75 4 x 14 16 2.7 Set...

Open the catalog to page 4

BOA-ControlR IMS 5 Installation instructions CAUTION Non-compliance with the following installation instructions may result in failure of the measuring functions. For measuring purposes, the direction of the flow through BOA-ControlR IMS balancing and shut-off valves of type BOA-CompactR must correspond to that of the arrow embossed on the valve body. An alternating direction of flow is permissible for the shut-off function. Flow through valve type BOAR-H must be in the direction indicated by the embossed arrow on the valve body. Vertical installation position: For installation in vertical...

Open the catalog to page 5

Subject to technical 7128.1/10-10 01.12.2009 modification without prior notice. BOA-ControlR IMS 6 Integrated calorimetric sensor Your benefits: • Direct indication of flow, temperature and nominal diameter, with insulation intact, by means of BOATRONICR M-2 • Independent of minimum differential pressures and valve travel position • Constant accuracy across the entire measuring range • Direct display of flow rate inm3/h whenever valve travel position changes Standard throttling/control valve plug Your benefits: • One model for shut-off and throttling • Fewer system components • Fewer parts...

Open the catalog to page 6

Type series booklet 7134.1/4-10 BOATRONIC® M-2, M-420 7 Measuring computer for BOA-ControlR IMS valves BOATRONICR M-2 BOATRONICR M-420 Applications • Directmeasurement of the current flow rate and temperature of the fluid in BOA-ControlR IMS valves, for example, for the purpose of flow regulation and balancing (BOATRONICR M-2) • Permanent measurement of flow rate and fluid temperature as well as measured value transmission, for example for visualisation and control of system conditions (BOATRONICR M-420) Operating data In-service ambient temp.: +5 °C to 50 °C In-storage ambient temp.: --20...
