Axially split volute casing pump

Product catalog summary

Overview: The RDLO axially split volute casing pump is designed for various applications including water works, irrigation, power stations, industrial water supply, petrochemical industry, marine engineering, and seawater desalination. It is suitable for pumping pure, raw, industrial, and seawater.

Key Features:

High Operating Reliability: Equipped with a double volute and double-entry impeller to minimize radial and axial forces, ensuring a theoretical operating life of at least 100,000 hours.
Low Maintenance Costs: Features solid bearing brackets, a rigid shaft, and corrosion-resistant materials, leading to low vibrations and extended service life of components.
Service-Friendly Design: The self-centering upper casing and spring-loaded rotor allow for easy assembly and maintenance, with accessible internal components.
Optimal Tightness: The solid casing split flange ensures reliable sealing between the upper and lower casing halves.

Technical Data:

Pump Sizes: DN350 – 700 (14 – 28 inches)
Max Capacity: 10,000 m³/h (44,030 gpm)
Max Discharge Head: 1,240 m (787 ft)
Max Operating Pressure: 25 bar (363 psi)
Max Temperature: 70°C (158°F), with options up to 140°C (284°F) on request

Materials:

Volute Casing: Grey cast iron, nodular cast iron, duplex cast steel
Impeller: CrNi steel, bronze, duplex cast steel
Shaft: Cr steel, duplex steel
Shaft Protecting Sleeve: Cr steel, bronze, duplex steel
Casing Wear Rings: Bronze, duplex
Impeller Wear Rings (optional): Bronze, duplex

Compliance: Meets Directive 94/9/EC (ATEX 100a) standards for safety.

Catalog excerpts

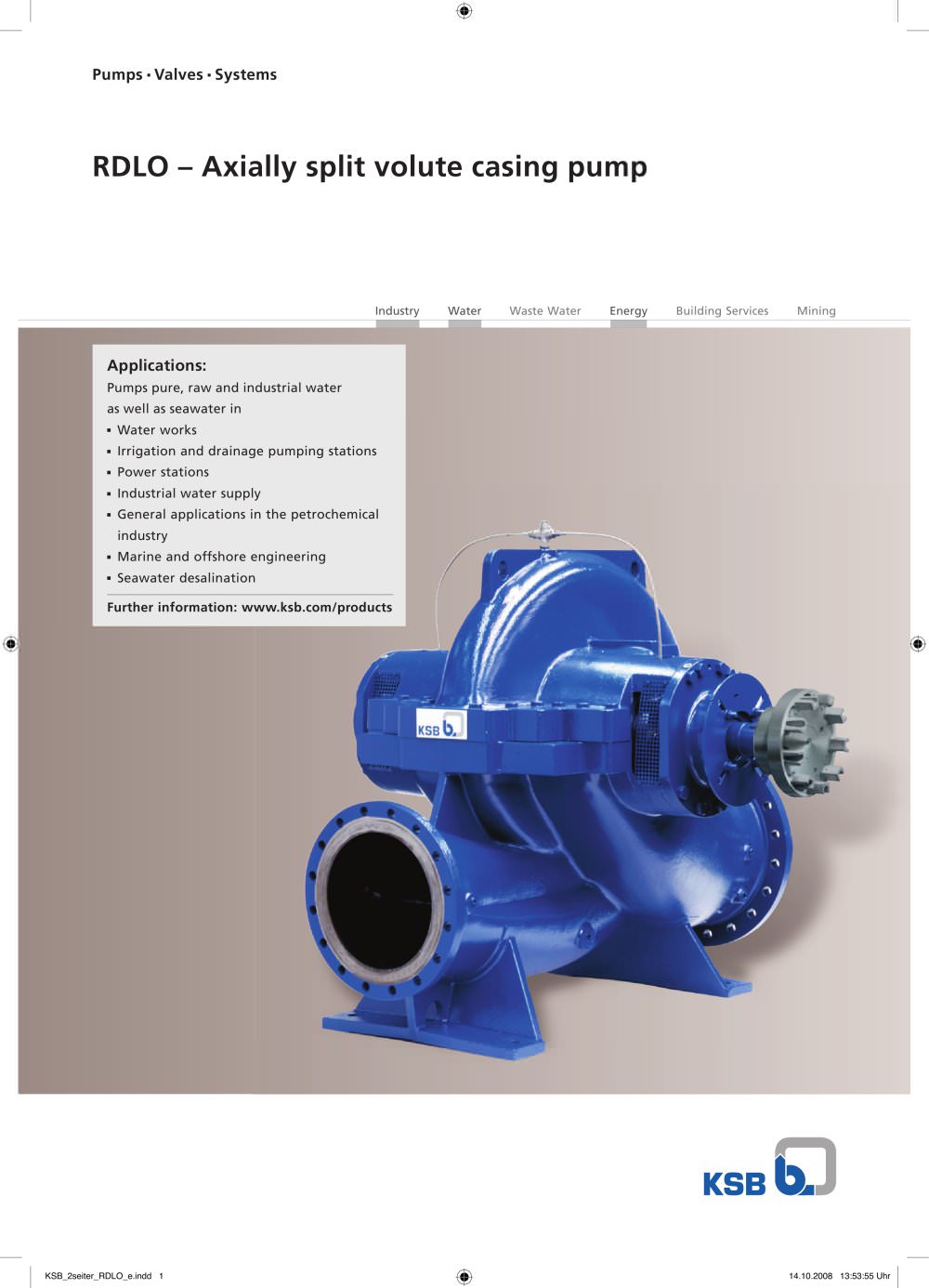

Industry Water Waste Water Energy Building Services Mining RDLO – Axially split volute casing pump Pumps ¡ Valves ¡ Systems Applications: Pumps pure, raw and industrial water as well as seawater in ¡ Water works ¡ Irrigation and drainage pumping stations ¡ Power stations ¡ Industrial water supply ¡ General applications in the petrochemical industry ¡ Marine and offshore engineering ¡ Seawater desalination Further information: www.ksb.com/products KSB_2seiter_RDLO_e.indd 1 14.10.2008 13:53:55 Uhr

Open the catalog to page 1

1387.021/3-10 / 10/08 / Subject to technical modifications. / © KSB Aktiengesellschaft 2008 RDLO – Axially split volute casing pump 1 High operating reliability Since the casing is equipped with a double volute (compensating the radial forces) and a double-entry impeller (compensating the axial forces) the bearings only experience a minimum load. The theoretical operating life L10 for all sizes is at least 100,000 hours. 2 Low maintenance costs The combination of solid bearing brackets, which are bolted to the upper casing part, the rigid shaft and the casing with double volute, guarantees low...
