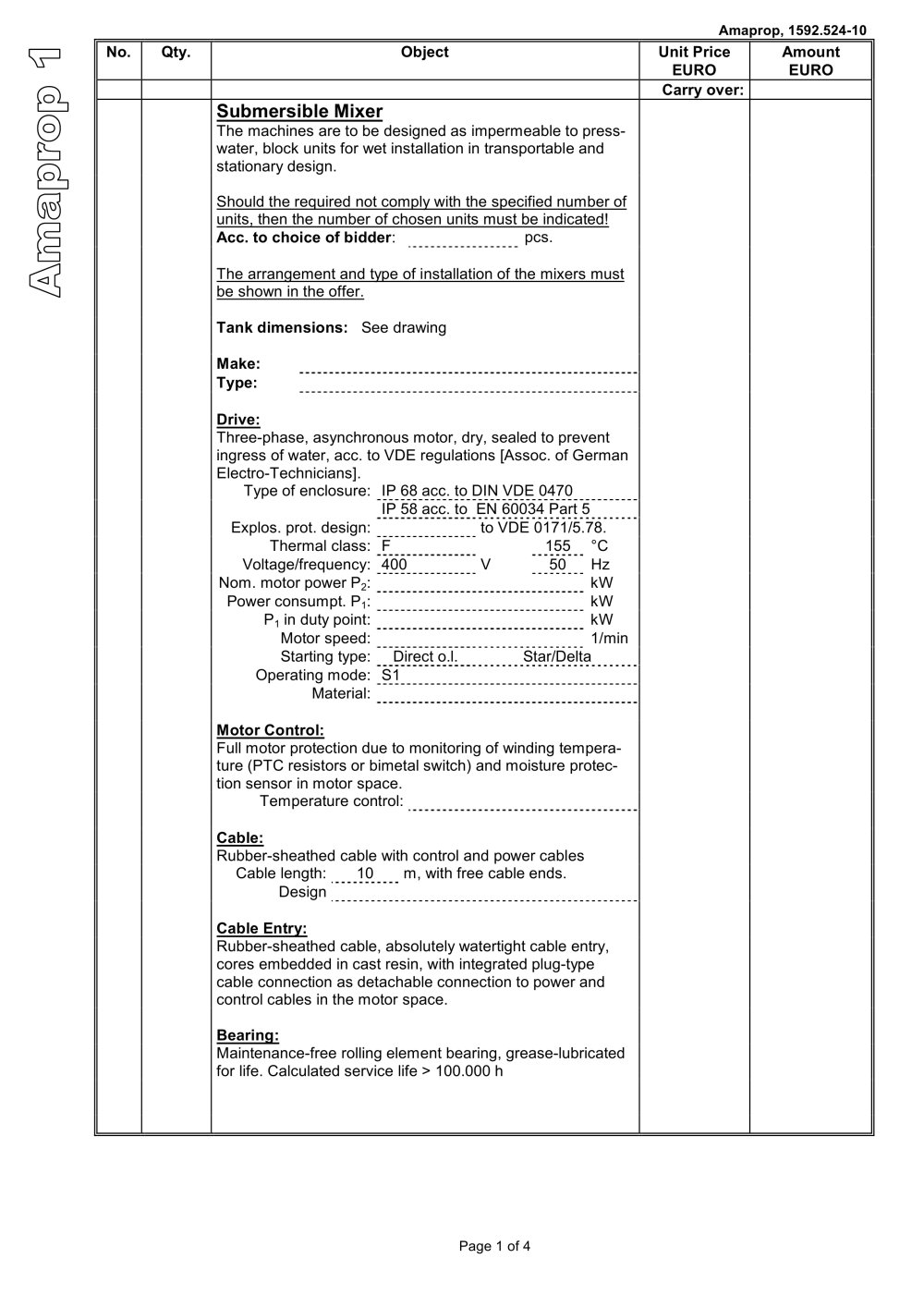

Amaprop, 1592.524-10 Page 1 of 4 No. Qty. Object Unit Price EURO Amount EURO Carry over: Submersible Mixer The machines are to be designed as impermeable to presswater, block units for wet installation in transportable and stationary design. Should the required not comply with the specified number of units, then the number of chosen units must be indicated! Acc. to choice of bidder: pcs. The arrangement and type of installation of the mixers must be shown in the offer. Tank dimensions: See drawing Make: Type: Drive: Three-phase, asynchronous motor, dry, sealed to prevent ingress of water, acc. to VDE regulations [Assoc. of German Electro-Technicians]. Type of enclosure: IP 68 acc. to DIN VDE 0470 IP 58 acc. to EN 60034 Part 5 Explos. prot. design: to VDE 0171/5.78. Thermal class: F 155 °C Voltage/frequency: 400 V 50 Hz Nom. motor power P2: kW Power consumpt. P1: kW P1 in duty point: kW Motor speed: 1/min Starting type: Direct o.l. Star/Delta Operating mode: S1 Material: Motor Control: Full motor protection due to monitoring of winding temperature (PTC resistors or bimetal switch) and moisture protection sensor in motor space. Temperature control: Cable: Rubber-sheathed cable with control and power cables Cable length: 10 m, with free cable ends. Design Cable Entry: Rubber-sheathed cable, absolutely watertight cable entry, cores embedded in cast resin, with integrated plug-type cable connection as detachable connection to power and control cables in the motor space. Bearing: Maintenance-free rolling element bearing, grease-lubricated for life. Calculated service life > 100.000 h

Open the catalog to page 1

Amaprop, 1592.524-10 Page 2 of 4 No. Qty. Object Unit Price EURO Amount EURO Carry over: Gear Unit: Designed as dimensionally stable block housing. The bearing is integrated in the block housing. Bearing and spur gears (helical gear) are made of highly wear-resistant, alloyed steels, smooth running, with oil filling done at the factory. Gear design: Oil quantity: l Oil type: ISO VG 320 Material - casing: JL 1040 (GG-25) Material . drive shaft: 1.4122 Seal Housing: Flanged directly to the drive unit, with separate oil and leakage chamber. Oil chamber filled with ecologically harmless oil at...

Open the catalog to page 2

Amaprop, 1592.524-10 Page 3 of 4 No. Qty. Object Unit Price EURO Amount EURO Carry over Factory Painting: GG - parts Sand blasting: SA 2,5 1 x primer: Iron oxide (dipped) 35 up to 40 µm 1 x top coat: 2 comp. epoxy resin approx. 70 µm Maintenance: Maintenance expenditure hours Maintenance interval: hours Remarks: Total Amoun- tEURO:

Open the catalog to page 3

Amaprop, 1592.524-10 Page 4 of 4 No. Qty. Object Unit Price EURO Amount EURO Carry over Factory Painting: GG - parts Sand blasting: SA 2,5 1 x primer: Iron oxide (dipped) 35 up to 40 µm 1 x top coat: 2 comp. epoxy resin approx. 70 µm Maintenance: Maintenance expenditure hours Maintenance interval: hours Remarks: Total Amoun- tEURO:
