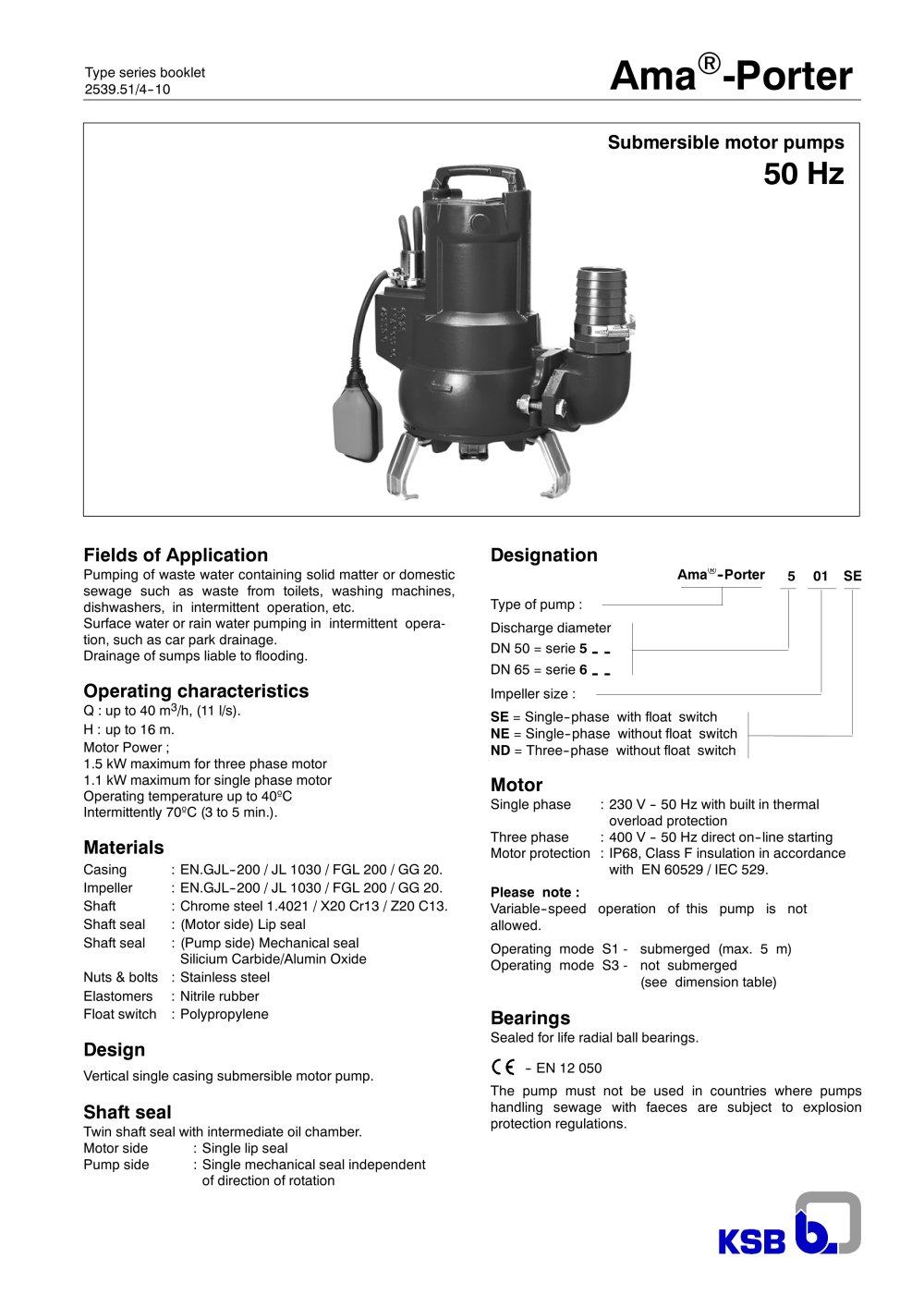

Type series booklet Ama®-Porter 2539.51/4--10 Submersible motor pumps 50 Hz Fields of Application Pumping of waste water containing solid matter or domestic sewage such as waste from toilets, washing machines, dishwashers, in intermittent operation, etc. Surface water or rain water pumping in intermittent operation, such as car park drainage. Drainage of sumps liable to flooding. Operating characteristics Q : up to 40 m3/h, (11 l/s). H : up to 16 m. Motor Power ; 1.5 kW maximum for three phase motor 1.1 kW maximum for single phase motor Operating temperature up to 40ºC Intermittently 70ºC (3 to 5 min.). Materials Casing : EN.GJL--200 / JL 1030 / FGL 200 / GG 20. Impeller : EN.GJL--200 / JL 1030 / FGL 200 / GG 20. Shaft : Chrome steel 1.4021 / X20 Cr13 / Z20 C13. Shaft seal : (Motor side) Lip seal Shaft seal : (Pump side) Mechanical seal Silicium Carbide/Alumin Oxide Nuts & bolts : Stainless steel Elastomers : Nitrile rubber Float switch : Polypropylene Design Vertical single casing submersible motor pump. Shaft seal Twin shaft seal with intermediate oil chamber. Motor side : Single lip seal Pump side : Single mechanical seal independent of direction of rotation Designation Type of pump : Discharge diameter DN 50 = serie 5 -- -- DN 65 = serie 6 -- -- Impeller size : SE = Single--phase with float switch NE = Single--phase without float switch ND = Three--phase without float switch Ama®--Porter 5 01 SE Motor Single phase : 230 V -- 50 Hz with built in thermal overload protection Three phase : 400 V -- 50 Hz direct on--line starting Motor protection : IP68, Class F insulation in accordance with EN 60529 / IEC 529. Please note : Variable--speed operation of this pump is not allowed. Operating mode S1 - submerged (max. 5 m) Operating mode S3 - not submerged (see dimension table) Bearings Sealed for life radial ball bearings. -- EN 12 050 The pump must not be used in countries where pumps handling sewage with faeces are subject to explosion protection regulations.

Open the catalog to page 1

2539.51/3--10 09/2008 Subject to technical modifications. Ama®-Porter KSB S.A. 128, rue Carnot -- 59320 Sequedin (Lille) B.P. 60095 -- 59482 Haubourdin Cedex -- France D Phone : +33 3 20 22 70 00 D Fax : +33 3 20 22 71 47 D http:/www.ksb.com

Open the catalog to page 2

Ama®-Porter 3 Scope of Supply Pump complete ready for installation with either stationary or transportable mounting kits. The SE versions are fitted with an integral float switch. Details -- Manufactured in cast iron construction EN.GJL--200 / JL 1030 / FGL 200 / GG 20. -- Non--flameproof motor. -- Unique resin imbedded, plug connection. -- Single phase version are supplied with a 10 m electrical cable and plug. -- Three phase version supplied with a 10 m electrical cable. -- Integral cast handle for easy hanging or lifting. -- Paint coating: Surface treatment: SA 21/2, Sis 055900 Primer :...

Open the catalog to page 3

Ama®-Porter 4 Advantages offered by the Ama®-Porter pump. Resin impregnated cable connection plug. Your benefit: Absolutely water tight cable entry. Side cable entry position ensures the cable is protected against damage. Your benefit: Safe and easy transport handling. Chrome steel shaft. Your benefit: No corrosion, long lifetime. Hard wearing mechanical seal independent of rotation direction. Your benefit: Long service life. Freeflow vortex impeller. Your benefit: Casing with F impeller ensuring maximum solids passage without blockage. Stainless steel nuts and bolts. Your benefit:...

Open the catalog to page 4

Ama®-Porter 7 Dimensions Ama®-Porter size 5 _ _ Transportable version (1) lowest switch off level For flexible hose inner diameter Ø 63mm Ama®-Porter size 6 _ _ Transportable version (1) lowest switch off level For flexible hose inner diameter Ø 80mm

Open the catalog to page 7

Ama®-Porter 8 Dimensions Ama®-Porter size 5 _ _ Duckfoot bend DN 50/50 Stationary version with guide wire lifting system Stationary version with guide hoop ISO 7005 PN 16 DN 50 PN 16 ASME 2” Flange of duckfoot bend (1) lowest switch off level Guide hoop 138 Ama®-Porter size 6 _ _ Duckfoot bend DN 65/65 Stationary version with guide wire lifting system Stationary version with guide hoop ISO 7005 PN 16 DN 65 PN 16 ASME 2”1/2 Flange of duckfoot (1) lowest switch off level bend Guide hoop 183

Open the catalog to page 8

Ama®-Porter 9 Dimensions Ama®-Porter size 5 _ _ Duckfoot bend DN 50/50 Stationary version with guide rail lifting system 1 rail ISO 7005 PN 16 DN 50 PN 16 ASME 2” (1) lowest switch off level Flange of duckfoot bend 138 Pipe Ø 33.7 x 3.2 183 Ama®-Porter size 6 _ _ Duckfoot bend DN 65/65 Stationary version with guide rail lifting system 1 rail ISO 7005 PN 16 DN 65 PN 16 ASME 2”1/2 Flange of duckfoot bend Pipe Ø 33.7 x 3.2 (1) lowest switch off level

Open the catalog to page 9

Ama®-Porter 10 Dimensions Pipe Ø 33.7 x 3.2 Ama®-Porter size 5 _ _ Duckfoot bend DN 50/50 Stationary version with guide rail lifting system -- 2 rails (1) lowest switch off level Flange of duckfoot bend (1) lowest switch off level Ama®-Porter size 6 _ _ Duckfoot bend DN 65/65 Stationary version with guide rail lifting system -- 2 rails Pipe Ø 33.7 x 3.2 Flange of duckfoot bend

Open the catalog to page 10

Ama®-Porter 11 Dimensions Ama®-Porter size 5 _ _ Horizontal pedestal installation G 2” Stationary version with guide wire lifting system Stationary version with guide hoop (1) lowest switch off level Guide hoop 138 Ama®-Porter size 6 _ _ Horizontal pedestal installation G 2” 1/2 Stationary version with guide wire lifting system Stationary version with guide hoop Guide hoop (1) lowest switch off level 183

Open the catalog to page 11

Ama®-Porter 12 Dimensions 138 Ama®-Porter size 5 _ _ Horizontal pedestal installation G 2” Stationary version with guide rail lifting system 1 Rail Pipe Ø 33.7 x 3.2 (1) lowest switch off level Ama®-Porter size 6 _ _ Horizontal pedestal installation G 2” 1/2 Stationary version with guide rail lifting system 1 Rail (1) lowest switch off level 183 Pipe Ø 33.7 x 3.2

Open the catalog to page 12

Ama®-Porter 13 On Off Installation in a sump mini Dimensions in mm A B C D Ama--Porter 5 _ _ 600 x 600 160 190 450 Ama--Porter 6 _ _ 600 x 600 170 190 480
