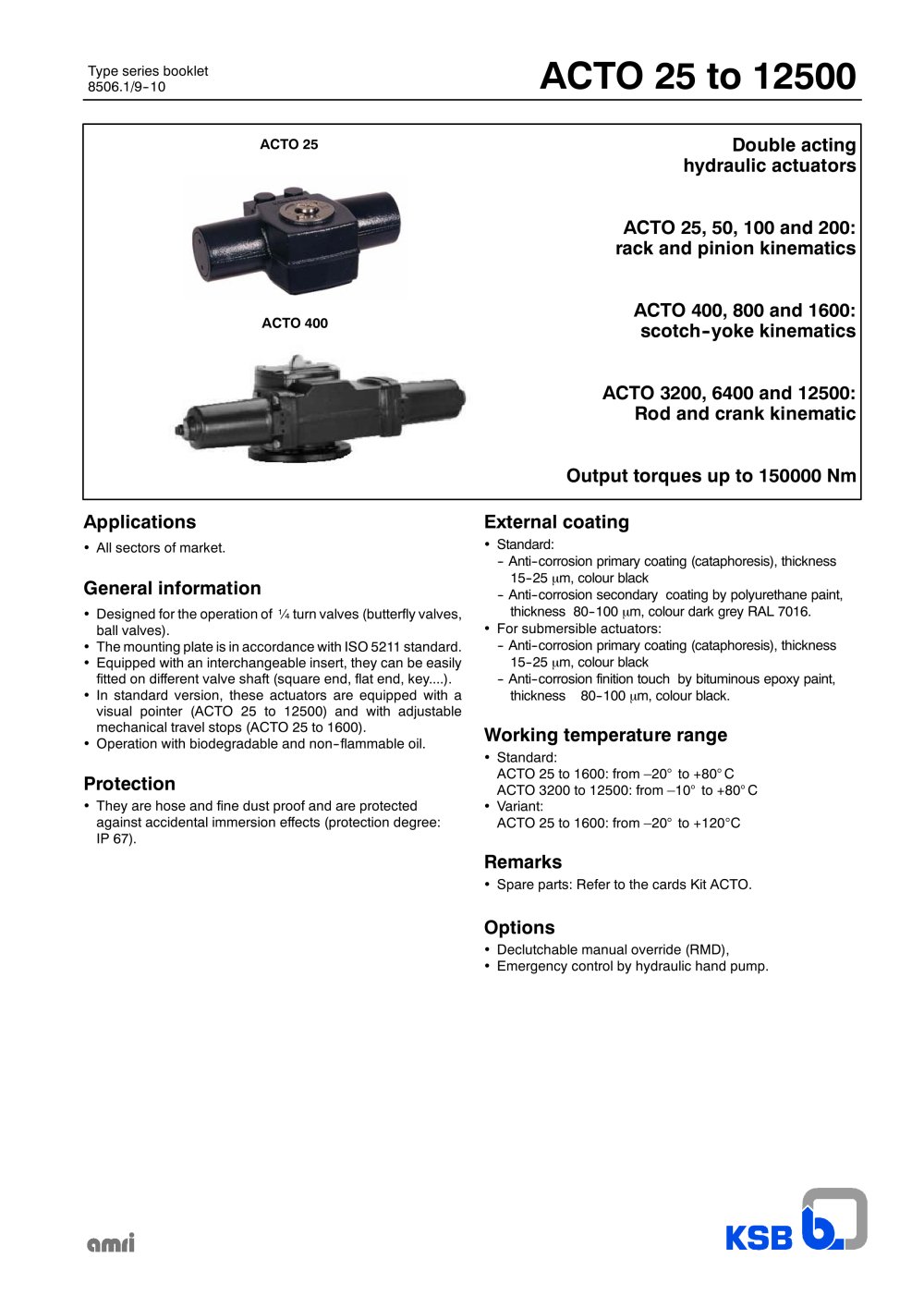

ACTO 25 to 12500 hydraulic actuators 2 General features Designed for the operation of¼turn valves (butterfly valves, ball valves, …), the ACTO series of double acting hydraulic actuators develop output torques up to 150000 Nm. The production range consists of 10 units: -- ACTO 25, ACTO 50, ACTO 100 and ACTO 200, based on rack and pinion kinematics, developing constant output torque, throughout the stroke, -- ACTO400, ACTO800 and ACTO1600 based on scotch--yoke kinematics, developing variable torque well suited for operation of ¼ turn valves of larger size with significant hydrodynamic torque....

ACTO 25 to 12500 hydraulic actuators 3 Operation In standard version, the ACTO actuators are designed to ensure clockwise valve closure. ACTO 25 to 200: rack and pinion kinematics The rack and pinion kinematics develops constant output torque throughout the stroke. Opening operation Closure operation Actuator/Valve closed Actuator/Valve open Actuator/Valve open Actuator/Valve closed E P E P P E P E ACTO 400 to 1600: yoke and slide kinematics The yoke and slide kinematics develops variable output torque very well suited to the operation of¼turn valves with hydrodynamic torque. The movement transmission...

ACTO 25 to 12500 hydraulic actuators 4 ACTO 3200 to 12500: Rod and crank kinematic The rod and crank kinematics develops variable output torque very well suited to the operation of ¼ turn valves. The translation of hydraulic actuator .. causes the translation of arm ... This translation movement is converted into a ¼ turn rotational movement of chuck .., integral with the valve shaft. This conversion movement is effected via the connecting rods whose length defines an exact and invariable position of the chuck during the closing operation. F 30° 60° Open Closed .. .. F .. F F Curve of the rod...

ACTO 25 to 12500 hydraulic actuators 5 ACTO 25 to 200 – Construction Section A--A 932 412.4 412.3 310.2 310.4 310.3 412.2 970.2 415.2 901 486.1 629 900.2 916.4 877 970.1 310.1 415.1 412.1 916.1 916.3 412.5 411 904 103 87--15 916.2 554.1 950 486.2 903.2 Version with ball check valve Version with quick coupling 731.1 See versions below Item Designation Materials 103 Housing ASTM A536 gr.60--40--18 * ductile iron 310.1 Self--lubricating bearing Steel + bronze + PTFE 310.2 Self--lubricating bearing Stainless steel + PTFE 310.3 Self--lubricating bearing Stainless steel + PTFE (ACTO 25, 50 and 100...

ACTO 25 to 12500 hydraulic actuators 6 ACTO 400 to 1600 – Construction Section A--A 412.5 916.1 554 553 412.2 310.1 932 553 412.2 554 916.1 920.2 141 595 415 412.1 901.2 310.1 932 103 970.1 920.1 412.1 901.2 415 595 141 920.2 81--68 412.6 59--40 310.4 310.3 142 310.2 412.4 486.1 970.2 901.1 629 900.2 916.2 903.2 950 486.2 Version with ball check valve Version with quick coupling 731.1 See versions below Item Designation Materials 103 Housing JL 1040(1) cast iron or JS 1030(2) ductile iron 141 Cylinder ASTM A536 gr.60--40--18 ductile iron 142 Cover JL 1040(1) cast iron or JS 1030(2) ductile iron...

ACTO 25 to 12500 hydraulic actuators 8 ACTO 3200 to 12500 – Construction Item Designation Materials 103 Housing JS 1030 ductile iron 141 Cylinder ASTM A536 gr.60--40--18 ductile iron 160 Cover JS 1030 ductile iron 176 Bottom Steel 210 Shaft Steel 300 Bearing Stainless steel + PTFE 310.1 Self--lubricating Stainless steel + PTFE 310.2 Self--lubricating Stainless steel + PTFE 310.3 Self--lubricating Stainless steel + PTFE 314 Thrust bearing Stainless steel 32--1 Needle Treated steel 412.1 O--Ring Nitrile 412.2 O--Ring Nitrile 412.3 O--Ring Nitrile 415.1 Leap seal ring Nitrile 415.2 Leap seal ring...

ACTO 25 to 12500 hydraulic actuators 10 Dimensions (mm) and weight (kg) ACTO 3200 to 12500 C G D A B diamètre de perçage Ød1 n trous équidistantsØd2 E F Type A B C D E F G ISO 5211 interface ref. ø d1 ø d2 n Weight ACTO 3200 1292 415 176 200 220 407 593 F30 248 20 4 F35 356 30 4 580 ACTO 6400 1769 575 235 300 280 538 810 F40 406 36 8 F48 483 36 12 1240 ACTO 12500 Please, consult us

ACTO 25 to 12500 hydraulic actuators 11 Mounting on valves The actuator can be positioned in four positions, at intervals of 90° . When the actuator is supplied on a valve and unless otherwise stated on the order, the actuator ismounted according to the arrangement N position1. If the actuator is equipped with a declutchable manual override, the actuator is mounted in accordance with the arrangement M position 2. ACTO 25 to 200 Arrangement N Arrangement M Position 1 Position 2 Position 1 Position 2 Flow pressure direction on the valve ACTO 400 to 1600 Arrangement N Arrangement M Position 1 Position...

ACTO 25 to 12500 hydraulic actuators 12 Device adjustable travel stops, purging and hand pump connection: ACTO 25 to 1600 application The ACTO hydraulic actuators are equipped, at each cylinder end, with a special device allowing the three following functions : -- mechanical adjustable travel stops on open and closed positions. The adjustment range is ± 2° for ACTO 25 to 200 actuators and ± 2,5° for ACTO 400 to 1600 actuators. These travel stops are factory adjusted during the fitting of the actuator on the valve, -- purging of the cylinder chambers, -- connection of an emergency control by hydraulic...

ACTO 25 to 12500 hydraulic actuators 13 Hydraulic connections Standard version: direct connection The oil connection is done directly onto the housing: -- ACTO 25 to 200: by means of two 1/4’’ Gas threaded ports, -- ACTO 400 to 1600: by means of two ’’ Gas threaded ports. -- ACTO 3200 to 12500: by means of two 1/2’’ Gas threaded ports. Caution : In this case, the position holding of the actuator is achieved by the oil pressure holding. If the piloting accessories cannot ensure this function, the use of a distribution plate with piloted check valves (BSP) is recommended. See below. Optional version...
