TIDALFLUX 2300 – Electromagnetic flowmeter with integrated non-contact level measurement and conductivity measurement

Product catalog summary

Overview
The TIDALFLUX 2300 is an electromagnetic flowmeter designed for accurate flow measurement in partially filled pipes, suitable for municipal, industrial wastewater, stormwater, and other applications involving effluent brine or sea/well water injection. It offers a closed measuring solution with high accuracy and low total cost of ownership.

Specifications
- Reliable measurements with fill levels from 10% to 100% of the pipe's inner diameter.
- Nominal sizes range from DN 200 to DN 1600.
- Integrated conductivity and level measurement.
- Measuring accuracy is 1% of full scale.
- Outputs include current, pulse, and status.
- Communication options: HART®, Modbus, PROFINET.
- Wetted velocity measurement with two hastelloy electrodes.
- Factory calibrated with both static and dynamic calibration processes.
- Durable polyurethane lining suitable for abrasive environments.
- Optional stainless steel housing.

Features
- No corrosion risk due to non-contact with residues or particles.
- Closed piping ensures a safe and clean environment.
- Ex approvals for ATEX and IECex Zone 1 available.
- Burial installation capability (IP68).
- No on-site calibration required; on-site verification possible with OPTICHECK service tool.

Applications
- Suitable for surface and cooling water, biological and chemical wastewater.
- Cost-effective alternative to siphon tube constructions.

Measurement Principle
The flow velocity is measured using the electromagnetic flow measurement principle. The filling level is determined using capacitive non-wetted level sensors, and the flow rate is calculated based on the flow velocity and cross-section.

Installation Recommendations
- Recommended inlet and outlet sections: at least 5 DN and 3 DN respectively.

Contact Information
KROHNE Messtechnik GmbH, Ludwig-Krohne-Str. 5, 47058 Duisburg, Germany. Tel.: +49 203 301 0, Fax: +49 203 301 103 89, Email: [email protected]

Catalog excerpts

TIDALFLUX 2300 – Electromagnetic flowmeter with integrated non-contact level measurement and conductivity measurement-1

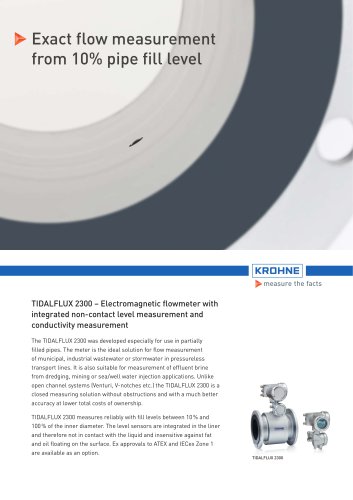

Exact flow measurement from 10% pipe fill level TIDALFLUX 2300 – Electromagnetic flowmeter with integrated non-contact level measurement and conductivity measurement The TIDALFLUX 2300 was developed especially for use in partially filled pipes. The meter is the ideal solution for flow measurement of municipal, industrial wastewater or stormwater in pressureless transport lines. It is also suitable for measurement of effluent brine from dredging, mining or sea/well water injection applications. Unlike open channel systems (Venturi, V-notches etc.) the TIDALFLUX 2300 is a closed measuring solution without obstructions and with a much better accuracy at lower total costs of ownership. TIDALFLUX 2300 measures reliably with fill levels between 10 % and 100 % of the inner diameter. The level sensors are integrated in the liner and therefore not in contact with the liquid and insensitive against fat and oil floating on the surface. Ex approvals to ATEX and IECex Zone 1 are available as an option.

Open the catalog to page 1

TIDALFLUX 2300 – Electromagnetic flowmeter with integrated non-contact level measurement and conductivity measurement-2

Measurement principle The flow velocity v is measured based on the electromagnetic flow measurement principle. The filling level h is determined using capacitive non-wetted level sensors. The filled flow cross section A is determined using on filling level h. Wetted velocity measurement The flow rate Qv is calculated by the IFC 300 PF converter based on the flow velocity v and the cross section A. The TIDALFLUX 2300 sensor is equipped with 2 hastelloy electrodes located at 10 % above the bottom of the pipe. Since the electrodes are covered with water most of the time there is virtually no risk...

Open the catalog to page 2
