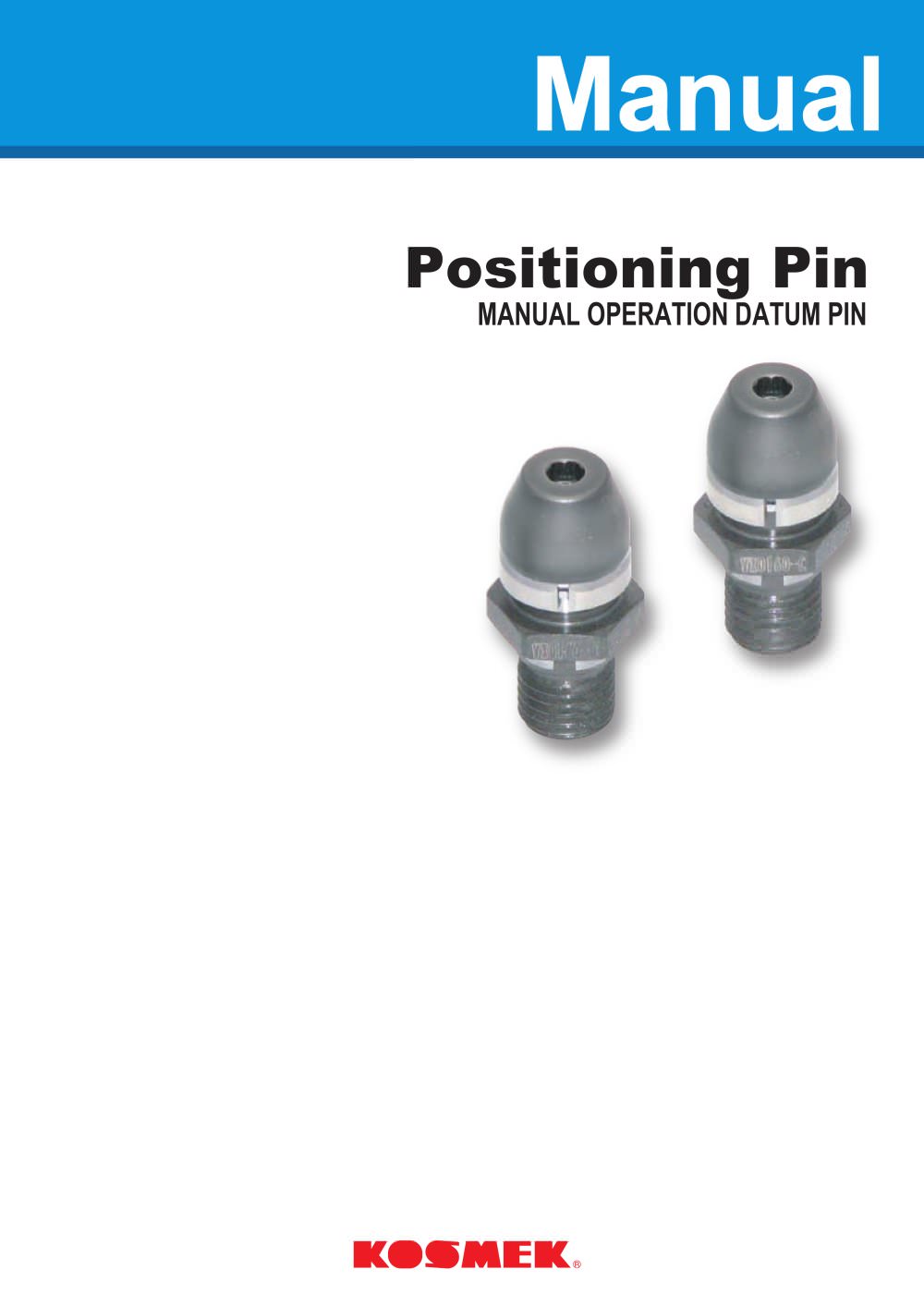

MANUAL OPERATION DATUM PIN Positioning Pin Manual

Positioning Pin 1 http://www.kosmek.co.jp model VX Manual Cross-sectional Structure Operating Instructions 1.Contracted (release position) When the cap is loosened the taper sleeve rises and contracts along the taper surface on the body. 2. Expanded (lock position) When the cap is tightened the taper sleeve lowers and expands along the taper surface on the body. High precision positioning of the workpiece (pallet) with repeat accuracy of 5ìm. Prevents deterioration of accuracy from repeat usage -Repeat accuracy of 5ìm. Prevents damage to datum hole -Comprised of two elements: the datum (round...

model VX KOSMEK LTD. 2 Manual expansion type model VX Model Code VX 012 0 - D D C 1 1 2 3 2 3 Workpiece hole diameter Design No. Function D: Datum (for positioning) C: Cut (for positioning in one direction) Workpiece hole diameter Features Applications -Repeat accuracy of 5 ìm with expansion of taper sleeve -Easy removal of workpiece with contraction of taper sleeve Workpiece can be positioned with a single wrench! Workpiece positioning Jig plate positioning

model VX KOSMEK LTD. 4 Manual expansion type model VX Outline Dimensions model A Bx By C D E F G H J K L M N(hexagon x depth) P(recommended clearance) Q R S VX0080 24 11 10 0.12 7 M6x1 9 3 12 1.6 2.5 7.9 4.7 2.5 x 2.5 0.5 ` 1 10 4 11 VX0100 28.3 15.5 14 0.16 9 M8x1 11.5 3.5 13.3 1.7 3 9.8 6 3 x 3 0.5 ` 1 14 5 13.5 VX0120 30 15.5 14 0.20 9 M8x1 11.5 3.5 15 2.2 3.5 11.8 6.5 3 x 3 0.5 ` 1 14 5 13.5 VX0160 37 19 17 0.24 13 M12x1.5 15 4 18 2.8 4.2 15.7 9 4 x 3.5 1 ` 1.5 17 5.6 17 VX0200 43.5 24.5 22 0.24 17 M16x1.5 18.5 5 20 2.5 5 19.7 12.4 5 x 4 1 ` 1.5 22 5.6 20.5 Dimensions Machining dimensions...

Positioning Pin Manual http://www.kosmek.5 co.jp Cautions Cautions for Mounting 1) Positioning in the directions of the X and Y axes. 3) VX-C (cut) phasing requirements 2) Datum plane for z-axis direction For VX0080, VX0100 and VX0120 For VX0160 and VX0200 Vertical X Y VX-D Datum VX-C Cut Cut mark Direction of expansion Part where shim is inserted (VX-C only) When the hexagonal flange cannot be embedded in the base plate Clearance Seat z-axis datum plane When the hexagonal flange is embedded in the base plate Z Hexagonal flange Datum plane for Z-axis direction Base plate Workpiece (pallet) Clearance...

KOSMEK LTD. 6 Cautions model VX Cautions Cautions for Design Warranty Cautions for Use 1) Check the specifications -The positioning (expansion) and release (contraction) operations are both performed manually. -When performing the operations use the hexagonal socket on the cap. -This product is a positioning pin and has no clamping mechanism. -The positioning (expansion) operation should be performed in the sequence of VX-D -> VX-C, and the tightening torque should be within the allowable range. When performing the release (contraction) operation, loosen the cap one turn. 1) The product should...
