CRIMPING TOOLS
1 / 1 PageView full catalog
CRIMPING TOOLS
Product catalog summary
Overview: This document provides specifications and descriptions for various crimping and cutting tools, as well as pneumatic pumps used in electrical and cable applications. The tools are designed for different types of terminals and cable sections.
Specifications:
- Crimping Tools: Various models are available for insulated and non-insulated terminals, with sections ranging from 0.25 mm2 to 16 mm2. Some models include a ratchet mechanism for ease of use.
- Cutting Tools: Designed for aluminum and copper cables, with maximum section capacities ranging from 38 mm2 to 500 mm2.
- Pneumatic Pump: A pedal-operated pneumatic pump with dimensions 190x99x92 mm and pressure range of 5.5 to 6 kg.
Key Tools and Their Uses:
- Dies for Pneumatic Pump: Available for non-insulated and pre-insulated connectors in various colors and sizes.
- Automatic Stripping Tool: Suitable for cables with sections from 0.5 mm2 to 6 mm2.
- Ratchet Mechanism Tools: Enhance efficiency for both insulated and non-insulated terminals.
Recommendations: Select tools based on the specific terminal type and cable section to ensure optimal performance and safety.
See more
Catalog excerpts

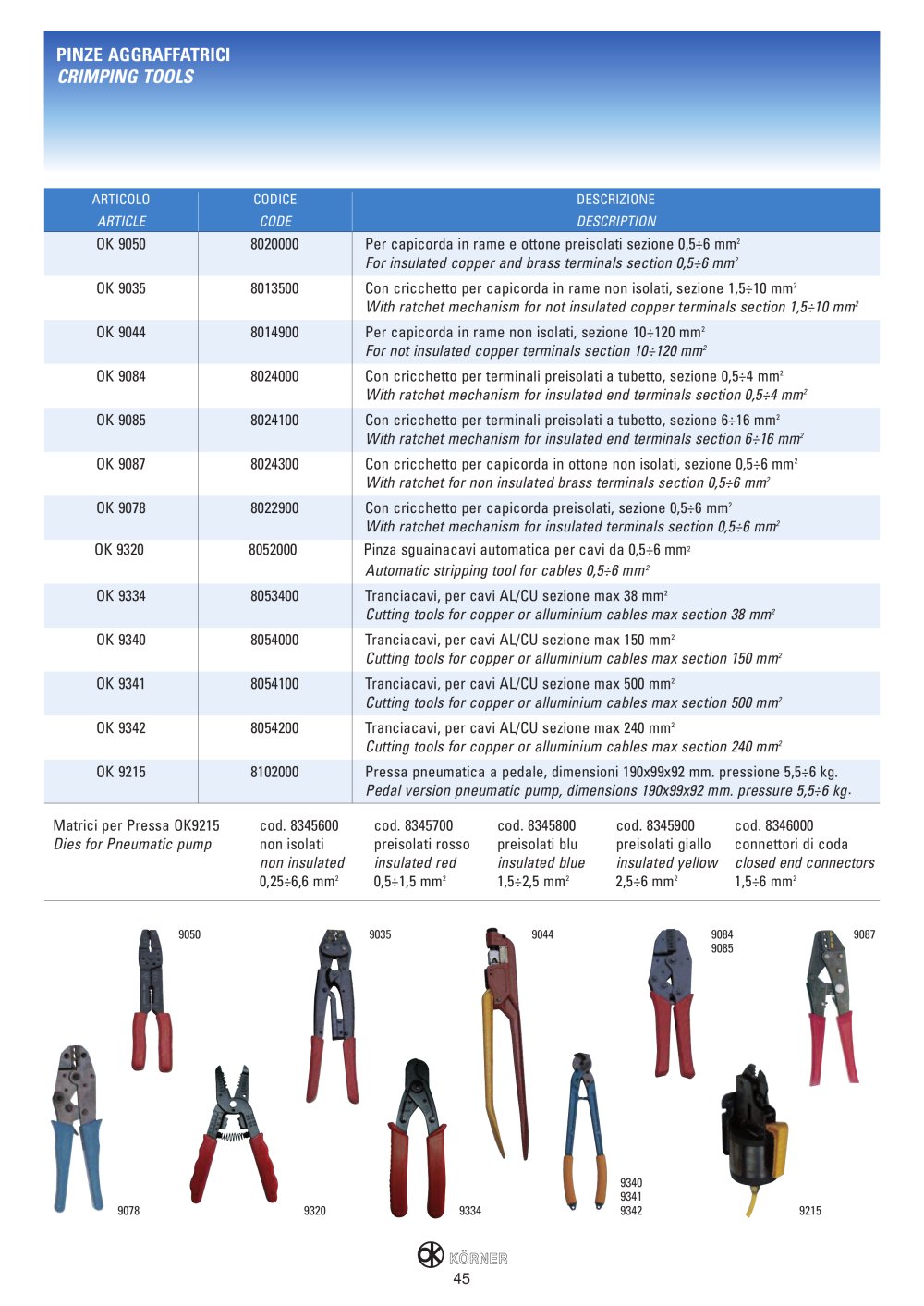

PINZE AGGRAFFATRICI CRIMPING TOOLS Dies for Pneumatic pump non isolati preisolati rosso preisolati blu preisolati giallo connettori di coda non insulated insulated red insulated blue insulated yellow closed end connectors
Open the catalog to page 1All KORNER catalogs and technical brochures
Electrical connection devices52 Pages
