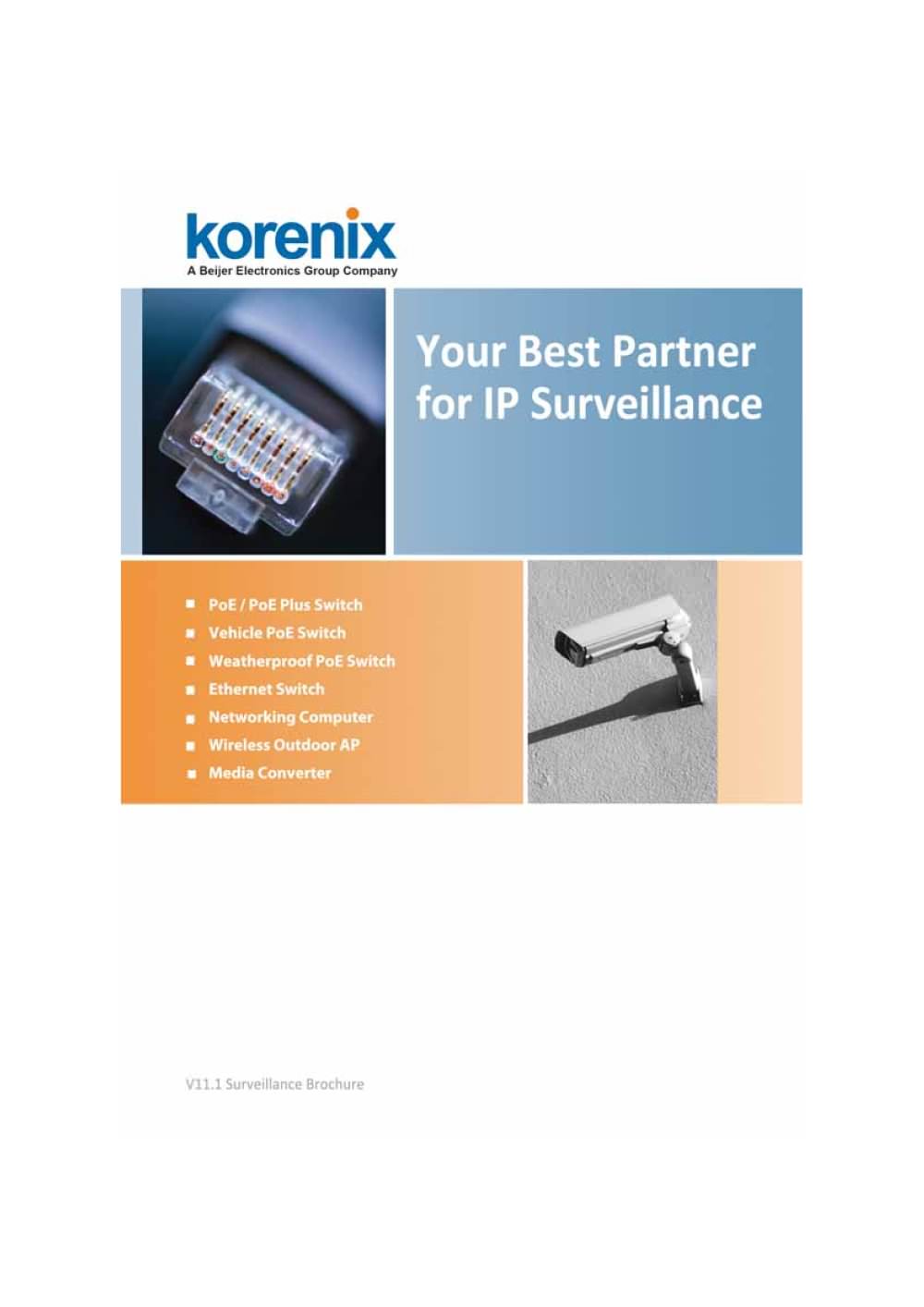

korenix A Beijer Electronics Group Company Your Best Partner for IP Surveillance ■ PoE/PoEPIusSwitch ■ Vehide PoE Switch ■ Weatherproof PoE Switch ■ Ethernet Switch ■ Networking Computer ■ Wireless Outdoor AP ■ Media Converter VI 1.1 Surveillance Brochure

1 www.korenixsecurity.com A Beijer Electronics Group Company Optimal IP Surveillance Network Technology Korenix PoE products comply with IEEE802.3af PoE standard and even achieve IEEE802.3at High Power PoE to deliver up to 30W power to high-end PoE-enabled devices. The 12V and 24V power boost technologies are able to bring PoE to vehicle, bus and railway applications, which make mobile IP surveillance more feasible and reliable. Network reliability is critical for IP surveillance. Since any single network link carries multiple video streams, a link failure can result in serious loss of video...

A Beijer Electronics Group Company www.korenixsecurity.com 2 Industrial Intelligent Networking & Embedded Platforms Worldwide Recognition & International Awards For excellence in products design and their outstanding performance, Korenix has achieved worldwide recognition and is continually winning international awards, including COMPUTEX Best Choice Award in Year 2007, 2008, and 2009, IF Design Award 2009, Automation-2009 Award of AISS-Automatica, Outstanding IT Products Award 2008, PRODUCT OF THE YEAR 2007 from Control Engineering, and Golden Penguin Award 2008. In 2009, Korenix JetBox is awarded...

3 www.korenixsecurity.com A Beijer Electronics Group Company IP Camera with PoE Standard 48V PoE ..Optimized QoS, VLAN & IGMP ..Multiple Ring Redundancy ..Enhanced Reliability by LPLD High power IEEE802.3at PoE Vehicle Surveillance 12~24V PoE JetCard 2215 JetBox 9560/9562 JetBox 9563G Programmable PoE Routing Platforms JetBox 9310 JetBox 9535 JetBox 9530 JetBox 9532 IP Camera without PoE Cost Effective Gigabit for Megapixel ..Optimized QoS, VLAN & IGMP ..Network Reliability with MSR Ring Redundancy / MSTP JetNet 5010G JetNet 4010 JetNet 4510 JetNet 2005 JetNet 2005f JetNet 3008G JetNet 3010G...

A Beijer Electronics Group Company www.korenixsecurity.com 4 IEEE 802.11b/g/n for up to 150Mbps net data rate JetWave 2450 By Wire JetNet 5010G 2 Connecting to the Central Room Core Switch 3 in Central Room Layer 2 Switch ..Security ..QoS, VLAN & IGMP ..Network Reliability with MSR Ring Redundancy and MSTP Layer 3 Switch ..Inter-VLAN Routing ..IP routing ..24 Full Gigabit ports JetNet 5428G / 5428G-DC / JetNet 5428G-2G-2FX JetNet 6524G / 6524G-DC By Wireless LAN IEEE 802.11a to more than 40km JetWave 2610 JetWave 2620 JetWave 2640 Dual Band 11a + 11b/g JetNet 4010 JetNet 4510 ..Optimized QoS,...

5 www.korenixsecurity.com A Beijer Electronics Group Company Chassis Switch Leased managed service E1/DS1/Metro Ethernet E1/DS1 MUX or EDGE switch Highway Traffic Monitoring of Vehicle Flow and Speed Limit on Toll Station Traditional Traffic monitoring systems are designed in a star network, then linked to a central switch. Any unexpected link failure can result in loss of video streams. By applying Korenix Redundant Ring technology through the rackmount and Dinrail managed switches, any link failure will be recovered in just few milliseconds. You will feel confident and assured with the time-saving...

A Beijer Electronics Group Company www.korenixsecurity.com 6 Oil Field Surveillance Efficient Multisite Surveillance by Advanced Multicast Routing A surveillance system in oil field helps to ensure safety and security. The administrator can take action immediately whenever emergency occurs. A client in USA required the customized security control and the real-time video monitored by both the factory and the local police department, which are separated at different Local Area Networks. Korenix JetBox 9535, featured with JamVM programming and the advanced multicast routing capability, fits the...

7 www.korenixsecurity.com A Beijer Electronics Group Company Weather Station Environmental Monitoring through the Internet Global warming, the most controversial environmental issue today, carries the hidden jeopardy for all human on earth. FAA takes actions to monitor environmental conditions and effects on deserts and glaciers in Alaska, where the temperature varies outrageously. Global scientists and technicians can then seek the method to challenge the severe conditions from the on-site weather stations. Why JetBox 9310-w 6-in-1 solution, compact size minimizes the installation cost NAT static...

www.korenixsecurity.com 8 Intelligent Network Management for Real-Time Surveillance JetView Pro, Korenix patented Industrial Intelligent Network Management System (i2NMS) provides a comprehensive platform for monitoring, configuring and maintaining mission-critical IP-based communication networks in large scale surveillance systems. The user-friendly software allows administrators to discover devices automatically and efficiently manage the surveillance network performance. Excellent Status Performance & Event Management To analyze the huge number of video streams, JetView Pro periodically monitors...

9 Innovation Beyond Just Power Feeding JetPoE series, the PoE and high power PoE switches with Korenix patented technologies, provide the most reliable and flexible solutions to the PoE surveillance market. The non-stop surveillance with JetPoE series is guaranteed through reliable power feeding of IP cameras and high quality video delivery. The world’s first 12 and 24V vehicle PoE design upgrades legacy transit CCTV surveillance to the most advanced digital IP megapixel solutions, while the innovative High Power PoE technologies allow transmitting over 500W high power to outstandingly fulfill...

A Beijer Electronics Group Company www.korenixsecurity.com 10 IP Surveillance PoE Switch JetPoE switches adopt thermal detector to ensure the reliable operation of DC booster under safe temperature by smartly checking DC booster temperature and adjusting to it available PoE output. When PoE is degrading due to ambient temperature, PD will shut down by priority. This makes PoE switch an intelligent power control device that helps users maintain PDs under specific temperatures. JetNet 3810G 12/24V Input 48V Output 12/24V to 48V Power Boost Global Exclusive 30W High Power PoE Compliant to IEEE 802.3at...
