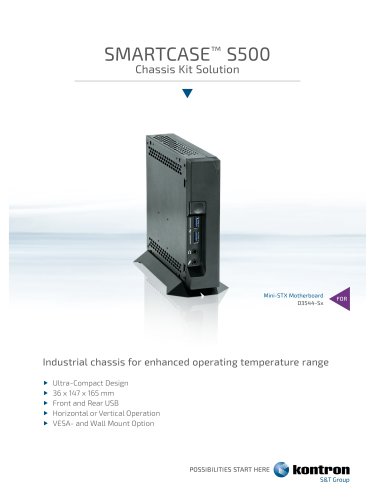

SMARTCASE™ S500
SMARTCASE™ S500
- Dimensions: 36 x 147 x 165 mm (W x H x D)
- Color: Black
- Weight: ~0.4 kg
- Supported Motherboards: D3544-S1, D3544-S2, D3544-S3
- Operating Temperature: 0 °C - 40 °C (passive heatsink), 0 °C - 50 °C (active heatsink)
- Humidity: 5% - 85% relative humidity (non-condensing)
- Approvals & Certifications: EMC CE Class B, Industrial Immunity (EN 61000-6-2), FCC Class B
- Theft Protection: Kensington lock support
- Mounting Options: Wall Mount Kit, VESA Kit, DC-In Holder
- Connectivity: Rear COM port, Rear USB Type-C connector (USB 3.1 gen1)
- Chassis prepared for optional features such as COM and USB Type-C connectors
- DC Input: 8 V - 24 V
- Chassis Kit Solution: Part No. F5000-J004 (10 pcs)
- Accessories include fanless and active heatsink kits, wall mount bracket, VESA kit, DC in holder, internal WLAN antenna kit, serial port cable, USB Type C cable, and external AC adapter.
Catalog excerpts
industrial chassis for enhanced operating temperature range ► Horizontal or Vertical Operation ► VESA- and Wall Mount Option
Open the catalog to page 1
CHASSIS DATA DIMENSIONS Aperture for optional COM connector with removable cover * SAMPLE CHASSIS CONFIGURATION ► Motherboard D3544-S ► M.2 2230 WLAN/Bluetooth (antenna not installed) ► Chassis prepared for optional features
Open the catalog to page 2
Kontron Europe GmbH Gutenbergstrafee 2 85737 Ismaning, Germany Tel.: + 49 821 4086-0 Fax: + 49 821 4086-111 [email protected] Copyright © 2022 Kontron. AH rights reserved. AH data is for information purposes only and not guaranteed for Legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Kontron and the Kontron logo and all other trademarks or registered trademarks are the property of their respective owners and are recognized. Specifications are subject to change without notice. SMARTCASE S500-20220420 -...
Open the catalog to page 3All Kontron catalogs and technical brochures

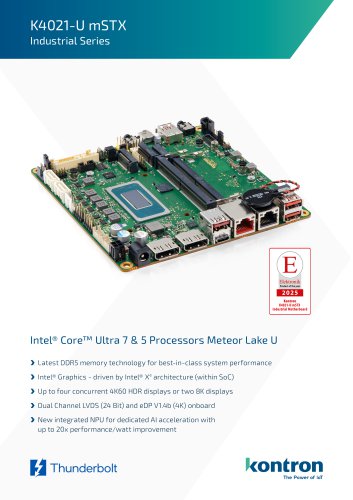

K4021-U mSTX5 Pages

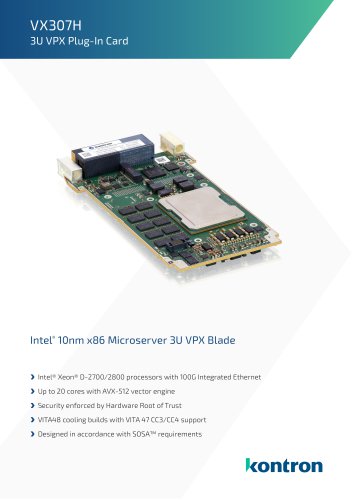

VX307H6 Pages

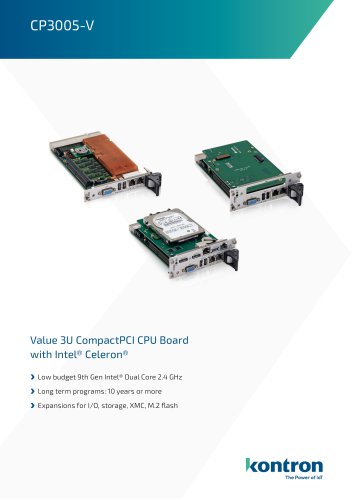

CP3005-V7 Pages
CP3422 Pages

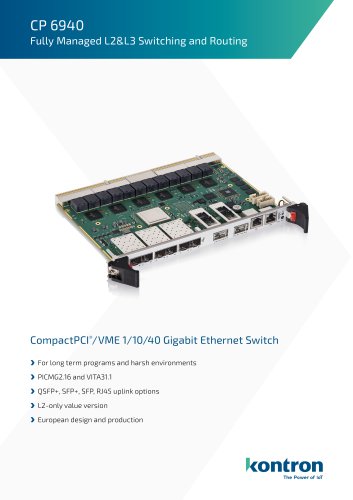

CP 69404 Pages

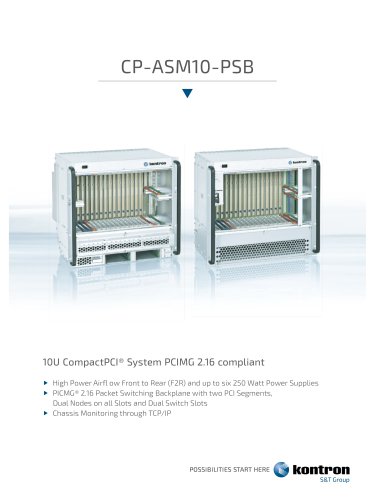

CP-ASM10-PSB4 Pages
CP-ASM63 Pages

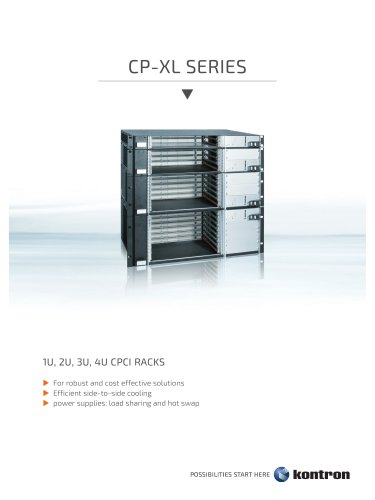

CP-XL SERIES2 Pages

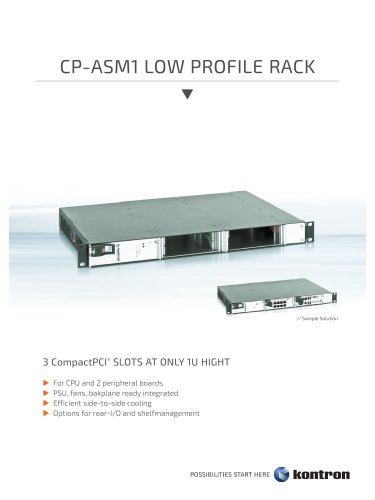

CP-ASM1 LOW PROFILE RACK2 Pages
CP-ASM 3, CP-ASM44 Pages

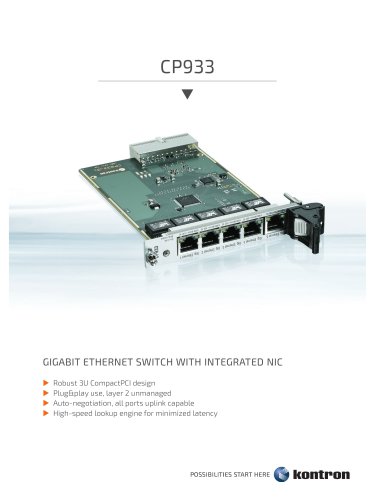

CP9332 Pages

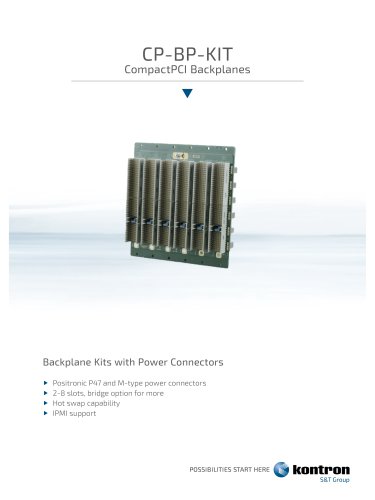

CP-BP-KIT2 Pages

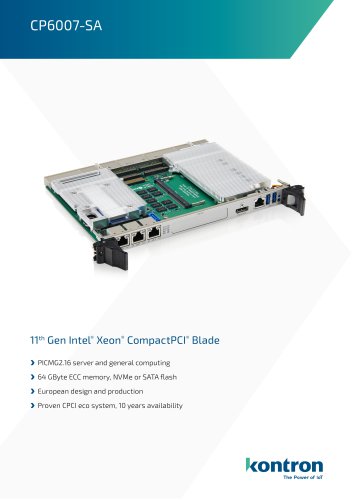

CP6007-SA4 Pages

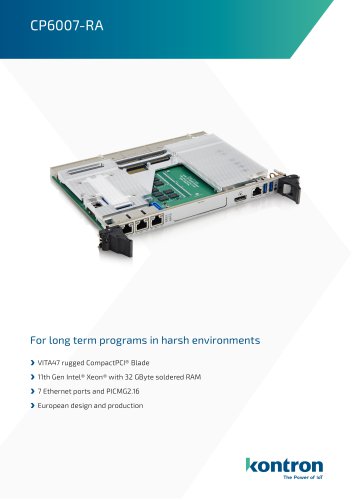

CP6007-RA4 Pages
CP3482 Pages

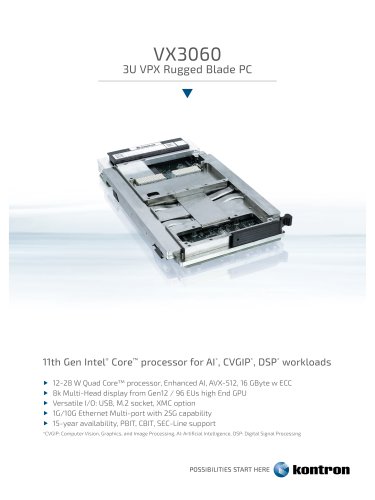

VX3060-S24 Pages
VX69404 Pages

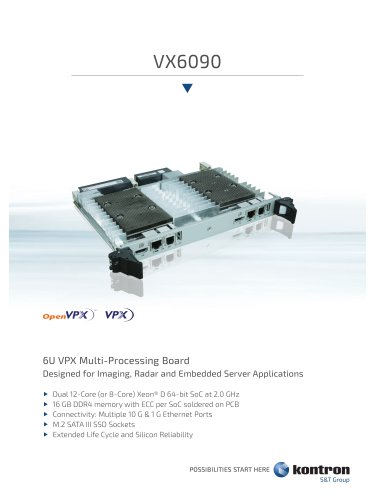

VX60904 Pages

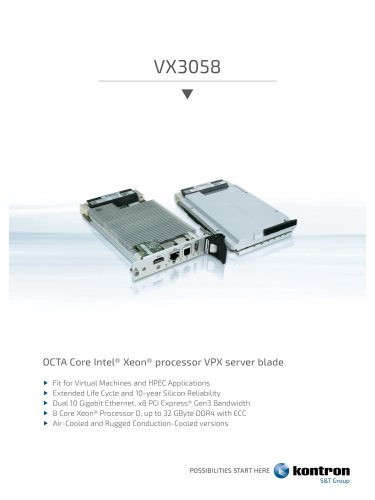

VX31062 Pages

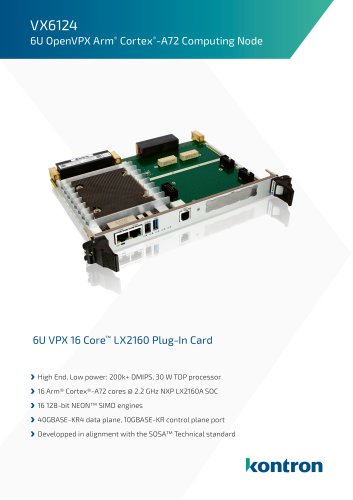

VX61245 Pages
VX30584 Pages

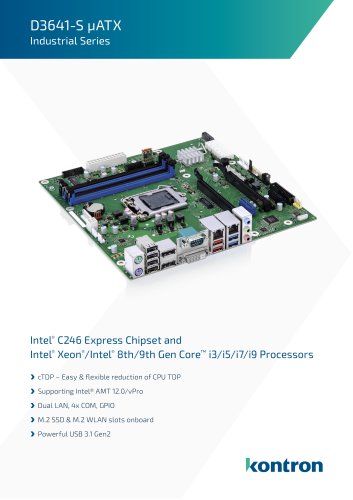

D3641-S μATX5 Pages

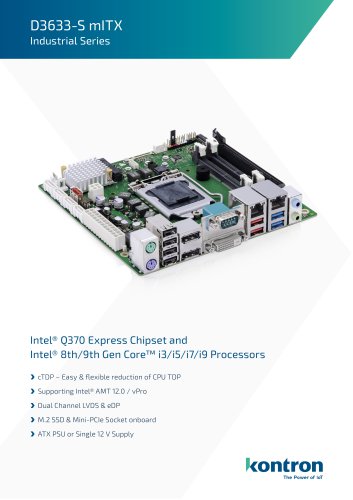

D3633-S mITX5 Pages
3.5”-SBC-TGL4 Pages

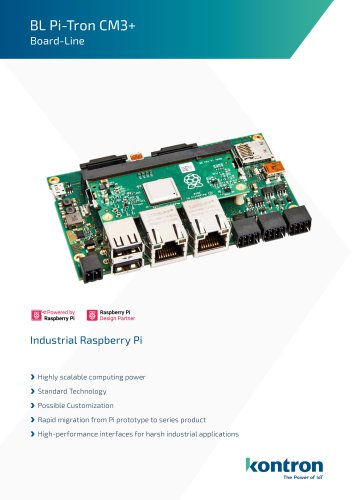

BL Pi-Tron CM3+4 Pages

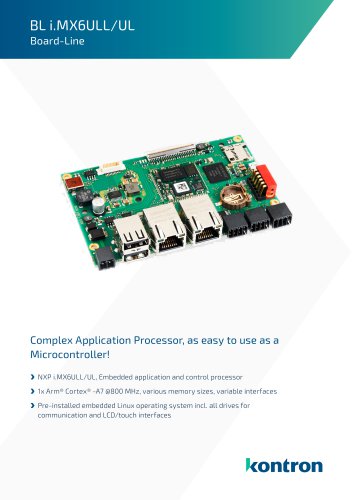

BL i.MX6ULL/UL4 Pages

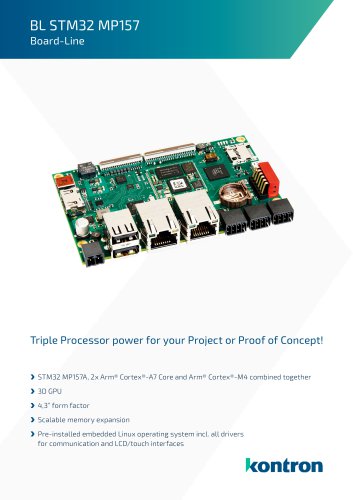

BL STM32 MP1574 Pages

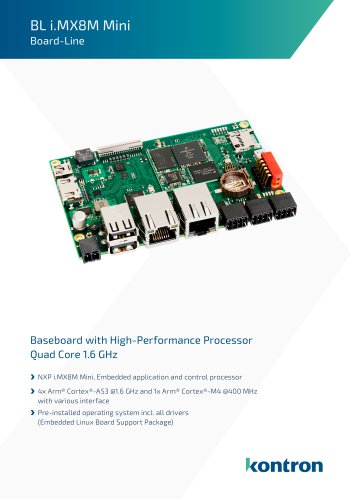

BL i.MX8M Mini4 Pages

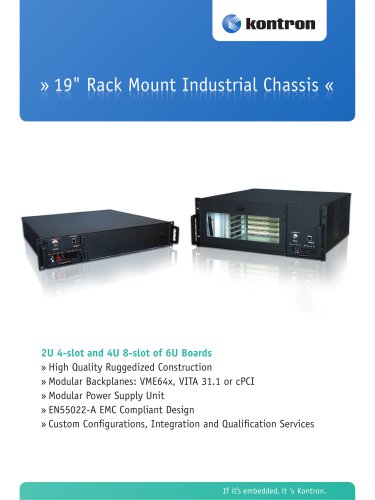

R4U8S/R4U8S4 Pages

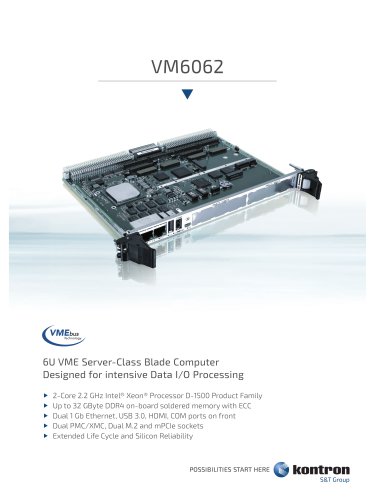

VM60624 Pages

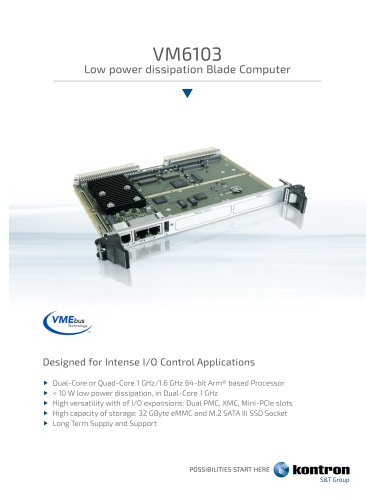

VM61035 Pages
OSM-S i.MX8M Mini4 Pages
CP3005-SA7 Pages

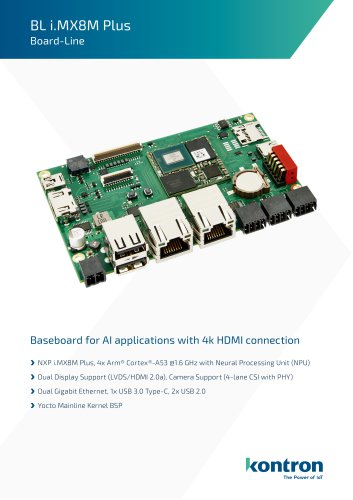

BL i.MX8M Plus3 Pages
3.5”-SBC-EKL4 Pages
BL Pi-Tron CM43 Pages

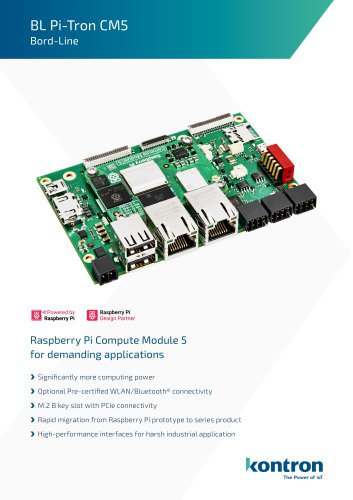

BL Pi-Tron CM53 Pages

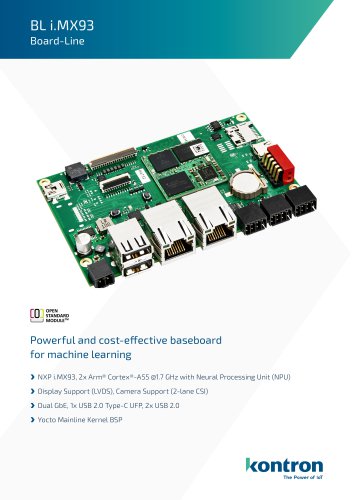

BL i.MX933 Pages
SMARTCASE™ S5024 Pages

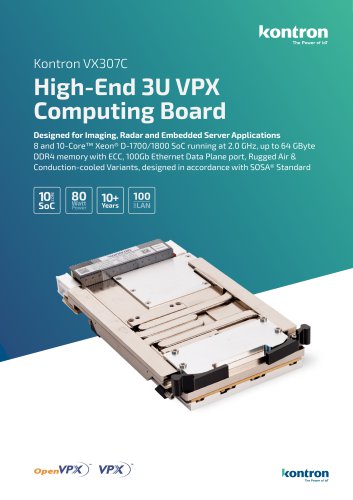

VX307C7 Pages

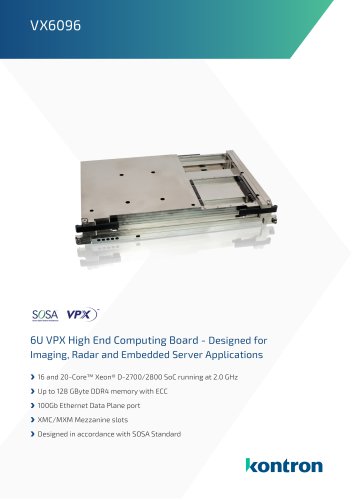

VX60964 Pages

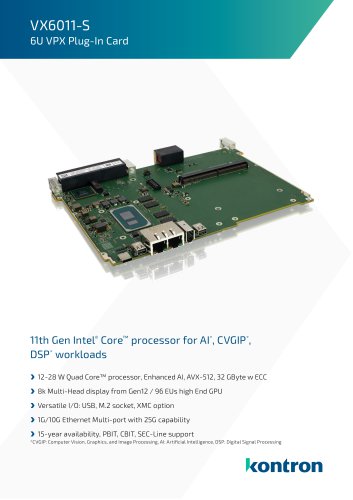

VX6011-S4 Pages
VX34063 Pages

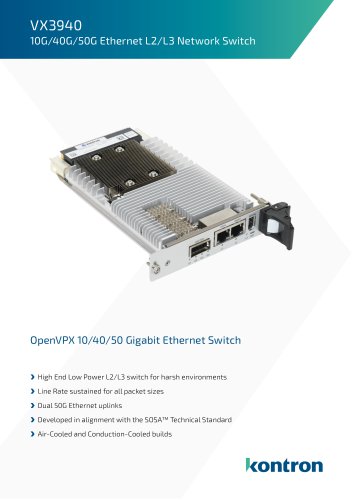

VX39403 Pages

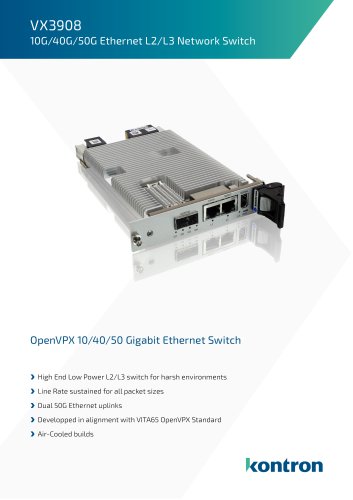

VX39083 Pages

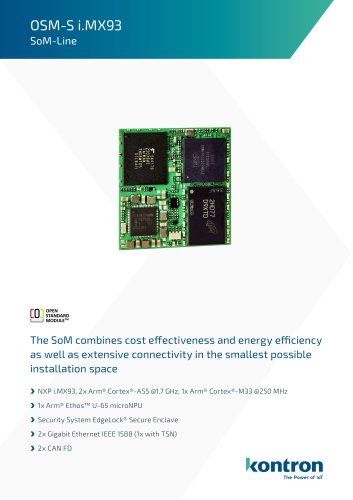

OSM-S i.MX933 Pages

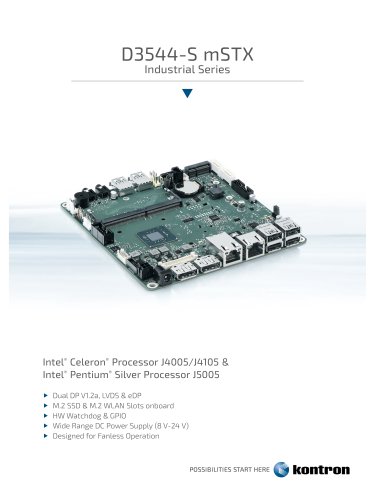

D3544-S mSTX5 Pages
CP3-SVE-M180AC6 Pages

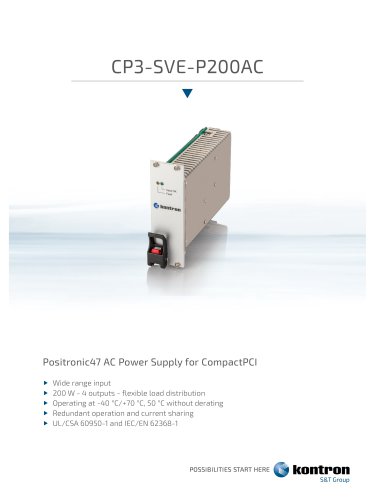

CP3-SVE-P200AC6 Pages

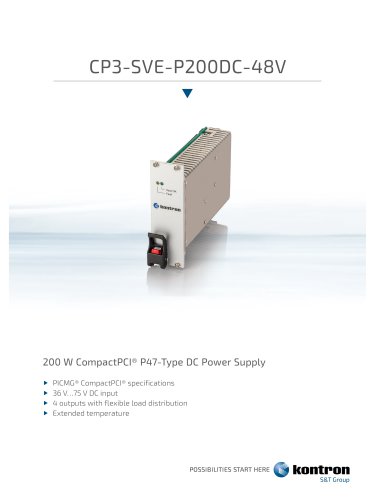

CP3-SVE-P200DC-48V5 Pages
3.5”-eIO-GPA4 Pages

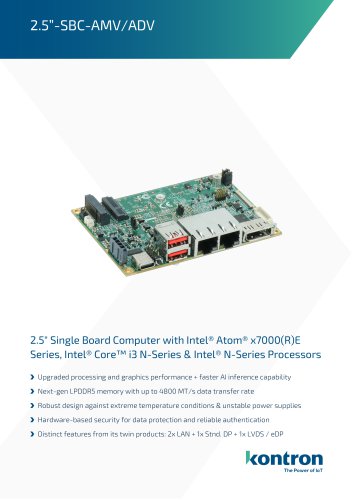

2.5”-SBC-AMV/ADV4 Pages

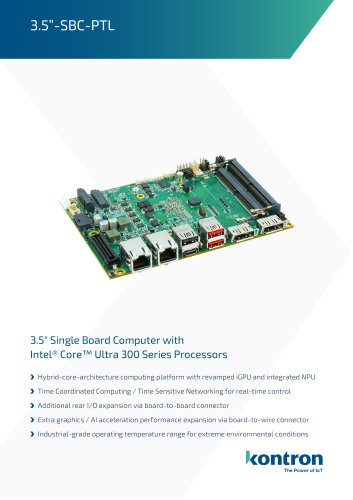

3.5”-SBC-PTL4 Pages

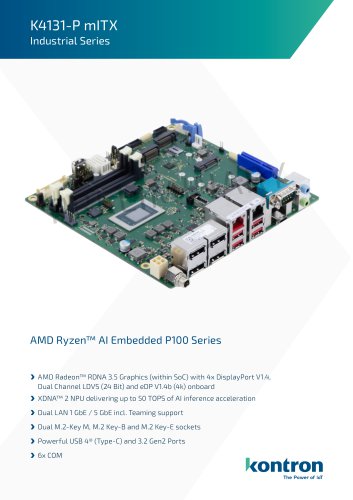

K4131-P mITX5 Pages

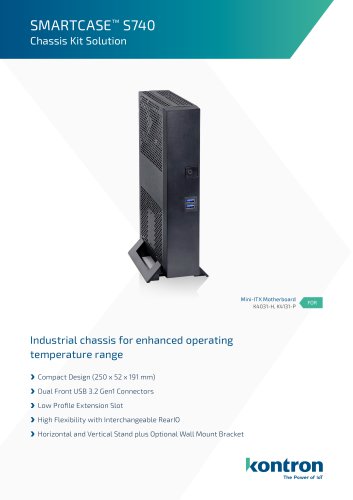

SMARTCASE™ S7403 Pages
OSM-S AM62L3 Pages

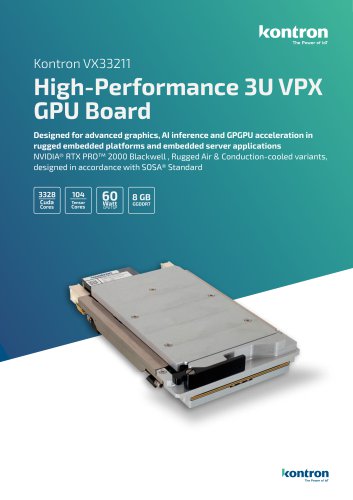

VX332116 Pages

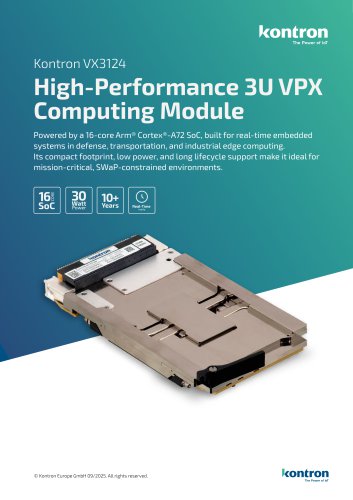

VX31246 Pages

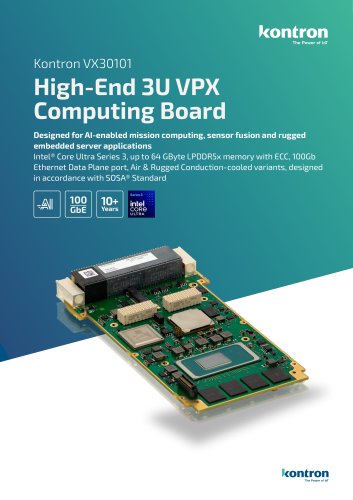

VX301016 Pages
CP6912 Pages
MARATON Hazardous HE3 Pages

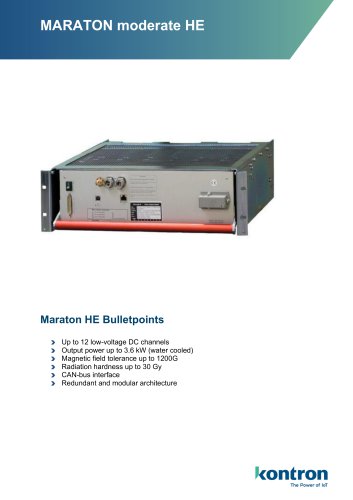

MARATON moderate HE3 Pages

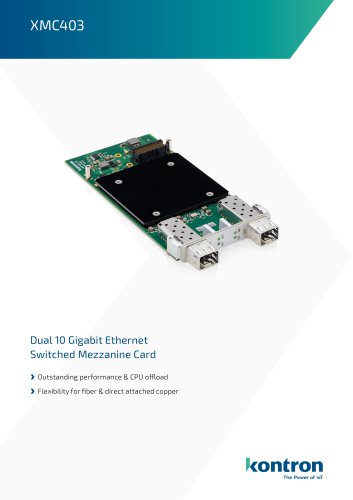

XMC4033 Pages

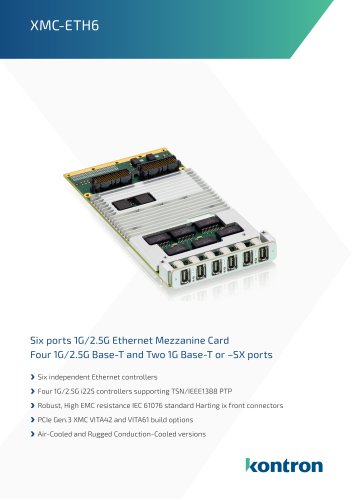

XMC-ETH63 Pages
VX30604 Pages

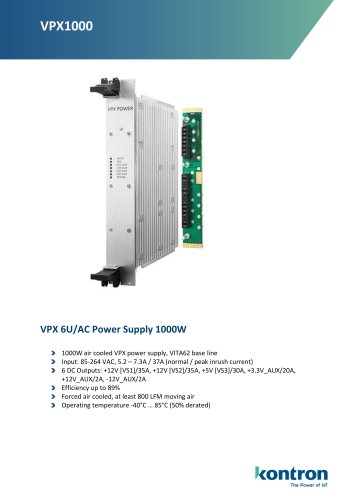

VPX10003 Pages

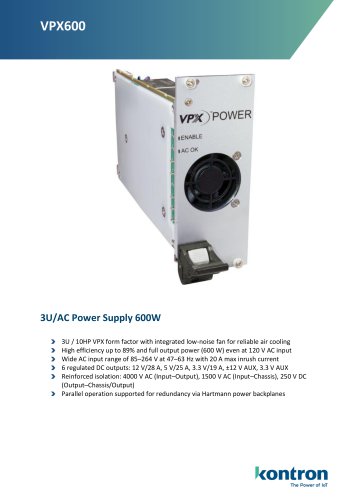

VPX6003 Pages
VPX 3606 Pages

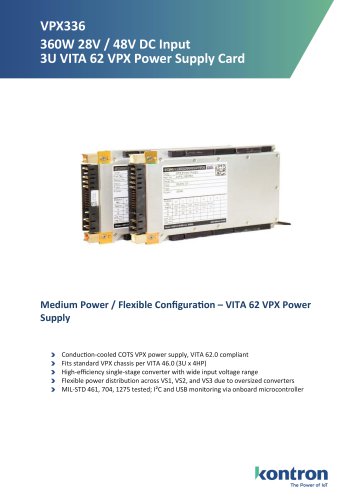

VPX3405 Pages

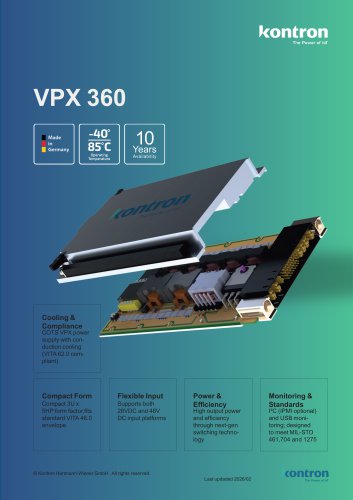

VPX3365 Pages
CMON-Line4 Pages
SEC-Line ELEMENTS4 Pages

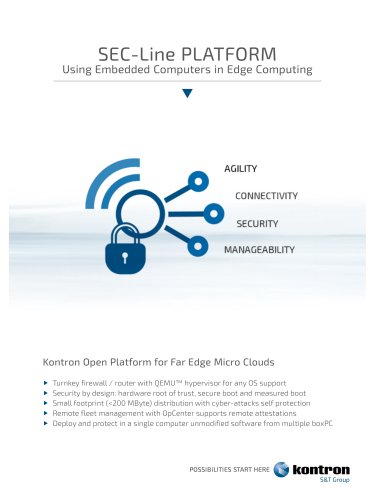

SEC-Line PLATFORM4 Pages
