KSwitch M20
KSwitch M20
The Kontron KSwitch M20 is a modular, fully managed L2/L3 Ethernet Switch module supporting 1/2.5/5/10 Gigabit speeds with Precision Time Protocol (PTP). It is designed for high-performance applications in military, avionics, and industrial sectors, offering precise timing synchronization and packet time stamping.
Key Features
- Scalable bandwidth from 44Gbps to 100Gbps.
- Flexible port configuration with up to 28 ports via 10x 10G SerDes interfaces.
- Supports IEEE1588v2 for precise timing and PoE PSE for intelligent power management.
- Robust design for extended temperature ranges and high reliability.
Bandwidth and Port Configuration
The switch supports a default configuration of 6x QSGMII (24x 10/100/1000BASE-T) and 4x 10G-USXGMII (4x 1/2.5/5G/10GBASE-T) with external PHYs. Custom configurations can support up to 28 x 1Gb/s ports or 10x 10GBASE-T.
Reliability and Management
Designed for rugged environments, the KSwitch M20 includes built-in test capabilities for maintenance. It supports SNMP, web-based management, and a command-line interface for comprehensive network management, including IPv6 support.
Technical Specifications
- Network Device OS: Microchip LAN969x TSN Switch Family.
- Operation Mode: Store and forward, full wire-speed, non-blocking switch core.
- Port Mapping: Initial mapping includes 6x QSGMII and 4x 10G-USXGMII, with other configurations available on request.
- Traffic Management: Supports IEEE 802.1p QoS with 8 queues per port and various scheduling schemes.
- Redundancy: Features IEEE 802.1CB for frame replication and elimination, and protection switching.
- Security: Includes IP and MAC-based access control, IEEE802.1X, and storm control.
Environmental and Compliance
- Operating Temperature: -40°C to +85°C.
- Compliance: RoHS, REACH, and WEEE compliant.
- Altitude: Up to 3000m.
Ordering Information
Available models include KSWITCH M20-64 and KSWITCH M20-100, with optional heat spreader.
Contact Information
Kontron Europe GmbH, Ismaning, Germany. For more details, visit www.kontron.com.
Catalog excerpts

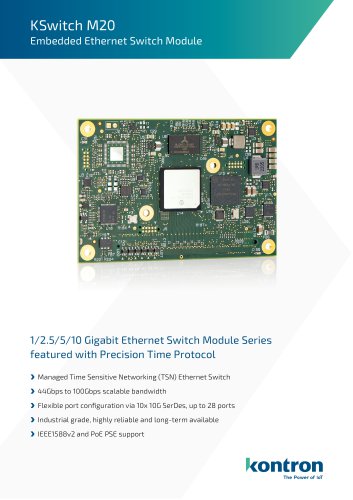

KSwitch M20Embedded Ethernet Switch Module 1/2.5/5/10 Gigabit Ethernet Switch Module Series featured with Precision Time Protocol * Managed Time Sensitive Networking (TSN) Ethernet Switch * Flexible port configuration via 10x 10G SerDes, up to 28 ports * Industrial grade, highly reliable and long-term available
