KBox A-151-RPL
KBox A-151-RPL
- Processor: Options include Intel® Core™ i3, i5, i7, and U300E processors with speeds up to 4.9 GHz.
- Memory: DDR5 technology with a maximum capacity of 96 GByte.
- Graphics: Intel® Iris® Xe or UHD Graphics supporting resolutions up to 7680 x 4320 @ 60Hz.
- Interfaces: Includes 2x DisplayPort, 4x USB 3.2, 2x 2.5 GbE Ethernet, and 2x COM ports RS232.
- Optional Interfaces: Options for WI-FI 6, LTE/5G, Ethercat, Dual CAN, additional GbE, DisplayPort, COM ports, GPIO/DIO, or Audio.
- Storage: Up to 2 TByte NVME via M.2 Key M.
- Expansion Slots: Includes M.2 Key M, E, and B sockets for various expansions.
- Software Support: Compatible with Windows 10/11 IoT Enterprise and Linux Debian, with additional toolsets like KontronOS, KontronGrid, and FabEagle®Connect.
- Mechanical Construction: Steel housing with DIN RAIL and Bookmount options, dimensions of 180 x 70 x 123 mm, and a weight of approximately 2.0 kg.
- Environmental: Fanless cooling, operating temperature range from 0 °C to +60 °C, with an extended range option from -40 °C to +60 °C, and 93% relative humidity at 40 °C non-condensing.
- Certifications: CE, UL 61010, CB, FCC, UKCA.
Catalog excerpts

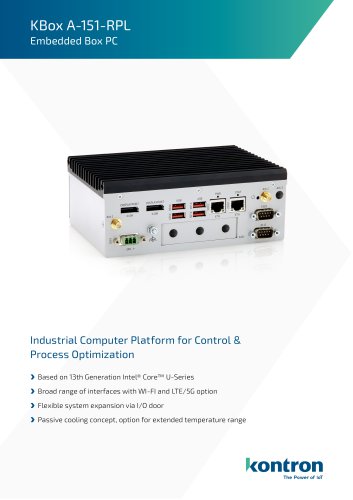

* Based on 13th Generation Intel® Core™ U-Series * Broad range of interfaces with WI-FI and LTE/5G option * Flexible system expansion via I/O door * Passive cooling concept, option for extended temperature range
Open the catalog to page 1
Technical Information PROCESSOR SPEED BIOS 13th Gen Intel® Core™ i3-1315UE / i3-1315URE / i5-1345UE / i5-1345URE / i7-1365UE / i7-1365URE or Intel® Processor U300E Deca-Core up to 1.7 GHz / 4.9 GHz (Burst) AMI® Aptio V5 GRAPHICS CORE MAX. RESOLUTION Intel® Iris® Xe Graphics or Intel® UHD Graphics 7680 x 4320 @ 60Hz GRAPHICS PORTS USB ETHERNET SERIAL PORTS BUTTONS/LED 2x DisplayPort 4x USB 3.2 2x 2.5 GbE 2x COM ports RS232 Power Button & LED, Standby LED OPTIONAL INTERFACES WIRELESS TECHNOLOGY EXPANSION VIA I/O DOOR Option for WI-FI 6 or LTE/5G Option for Ethercat, Dual CAN, additional GbE and...
Open the catalog to page 2
EXPANSION SLOT KBox A-151-RLA KBox A-151-RPL with Automotive Battery Intel® CoreTM i3-1315UE (6C, 1.2/4.5 GHz) Intel® CoreTM i3-1315URE (6C, 1.2/4.5 GHz) Intel® CoreTM i5-1345UE (10C, 1.4/4.6 GHz) Intel® CoreTM i5-1345URE (10C, 1.4/4.6 GHz) Intel® CoreTM i7-1365UE (10C, 1.7/4.9 GHz) Intel® CoreTM i7-1365URE (10C, 1.7/4.9 GHz) Empty M.2 128 GByte M.2 NVME 256 GByte M.2 NVME 512 GByte M.2 NVME 1 TByte M.2 NVME -W WI-FI 6 only (w/o LTE, Dual CAN, Ethercat or Dual LAN) -D WI-FI 6 with additional M.2 (LTE, Dual CAN, Ethercat or Dual LAN) 8x channel DIO/GPIO Module (via USB) Audio Line-Out (via audio...
Open the catalog to page 4
GLobaL Headquarters Kontron Europe GmbH Gutenbergstrafee 2 85737 Ismaning, Germany TeL.: + 49 821 4086-0 [email protected] Copyright © 2024 Kontron. ALL rights reserved. ALL data is for information purposes onLy and not guaranteed for LegaL purposes. Information has been carefuLLy checked and is beLieved to be accurate;however, no responsibility is assumed for inaccuracies. Kontron and the Kontron Logo and a LL other trademarks or registered trademarks are the property of their respective owners and are recognized.Specifications are subject to change without notice. KBox A-151-RPL-20241025 - bmy...
