CP342
CP342
- Number of Ports: 2 ports with Gigabit Ethernet
- Form Factor: 3U CPCI, 100 x 160 mm, Frontpanel 4 HP
- Connection Options: CP342: 2x RJ45; CP342-E2: 2x RJ45; CP342-SFP: 2x SFP
- Weight: 140 g
- Controller: Intel® 82546 GBit Ethernet controller
- Data Rate: 10/100/1000 Mbit/s (only 1000 Mbit/s for SFP)
- VLAN Support: IEEE 802.1Q VLAN support, 4096 VLAN tags
- Operating Temperature: 0 °C to +60 °C, -40 °C to +85 °C with E2 version
- Climatic Humidity: Non-condensing 93% at 40 °C (according to IEC60068-2-78)
- CP342: Part No. 33328, Dual Gigabit Ethernet NIC with 2x RJ45
- CP342-SFP: Part No. 33329, Dual Gigabit Ethernet NIC with 2x SFP
- CP342-E2: Part No. 35150, Dual Gigabit Ethernet NIC with 2x RJ45 for E2 temperature range
- KIT-CP342: Part No. 35118, Windows® 2000 and XP Board Support Package
- VXW-DRV-CP342: Part No. 35205, VxWorks® 6.4 Board Support Package
- WXPE-BSP-CP342: Part No. 1022-2328, Windows® XP embedded Board Support Package
Catalog excerpts

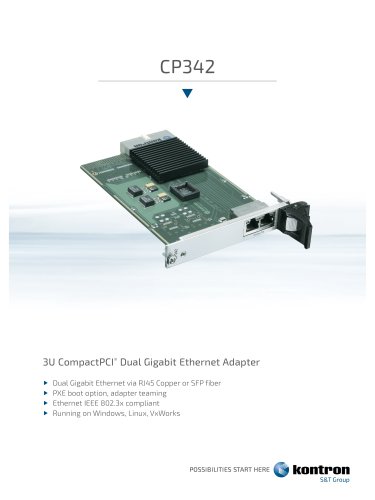

3U CompactPCI® Dual Gigabit Ethernet Adapter ► Dual Gigabit Ethernet via RJ45 Copper or SFP fiber ► PXE boot option, adapter teaming ► Ethernet IEEE 802.3x compliant ► Running on Windows, Linux, VxWorks
Open the catalog to page 1
CP342 is a Dual Gigabit Ethernet controller board, based around the Intel® 82546 Gigabit chip, designed for operation in CompactPCI systems off ering versatile connectivity to your application either on copper on Fiber with SFP. The optional flash device provides the ability to boot remotely via PXE from a diff erent operating system via the connected network. The Intel® 82546 Gigabit controller supports Jumbo frames with up to 16KB for large data transfers and high throughput. IP, TCP and UDP checksum off-loading capabilities increase the throughput even more. Furthermore the CP342 provides...
