Konica Minolta Sepctrodensitometer FD-7 / FD-5

Konica Minolta Sepctrodensitometer FD-7 / FD-5

Product catalog summary

Introduction
The document introduces the FD-7 and FD-5 spectrodensitometers by Konica Minolta, designed for measuring color, color density, and light. These devices incorporate advanced technology to accurately account for the UV component in light, crucial for assessing optical brighteners in paper.

Specifications
The FD-7 and FD-5 models are lightweight, with the FD-7 weighing 350g and 430g with the target mask. They feature a 45°a:0° illumination/viewing system, conforming to various international standards such as CIE 15:2004 and ISO 7724-1. The devices cover a wavelength range of 380 to 730 nm for reflection and 360 to 730 nm for illuminance, with a resolution of 10 nm.

Technological Features
The spectrodensitometers utilize Virtual Fluorescence Standard (VFS) technology for UV calibration according to ISO 13655 M1. They support multiple measurement modes (M0, M1, M2, M3) and can use any light source for measurement. The devices ensure excellent visual perception alignment and offer standalone, scanning, and light measurement capabilities.

Performance and Calibration
These instruments perform automatic wavelength correction during each white calibration, addressing drift due to temperature fluctuations. They provide high precision with a repeatability of σ0.01 density units and device agreement within ΔE00 0.3.

Measurement Capabilities
The FD-7 and FD-5 can display colorimetric data, color difference values, color density values, and more. They support various color space measurements and indices, including L*a*b*, ΔE*ab, and ISO brightness.

Usability and Accessories
Both models feature a built-in display for direct result viewing and can connect to a PC for scan mode measurements. They come with standard accessories like a USB cable, white calibration standard, and optional PC software.

Safety and Contact Information
The document includes safety instructions for device operation and contact information for Konica Minolta offices worldwide.

Catalog excerpts

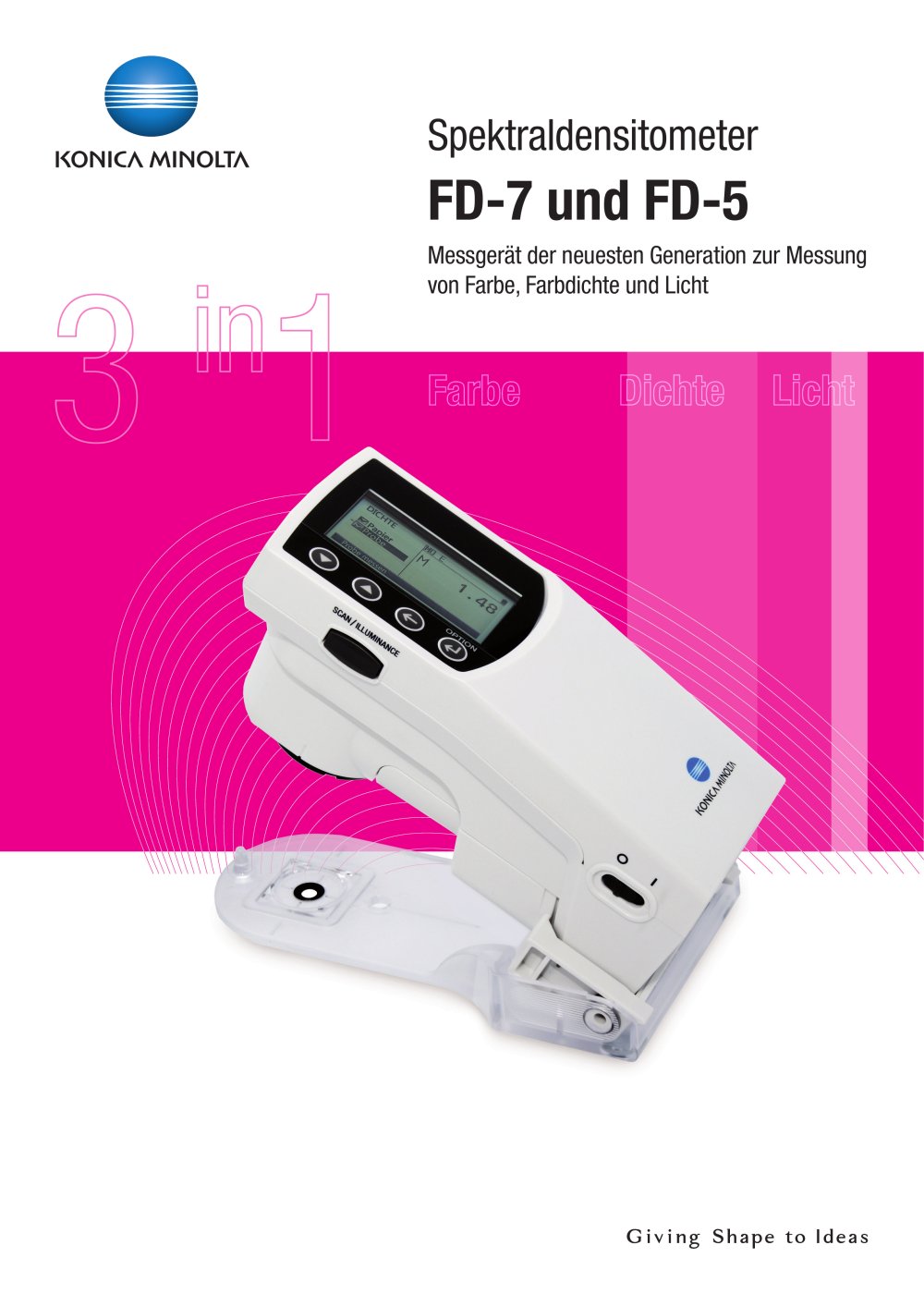

Konica Minolta Sepctrodensitometer FD-7 / FD-5-1

cop Cat ref_09.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } .font1 { font:12.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:23.00pt "Arial", sans-serif; } .font5 { font:29.00pt "Arial", sans-serif; } Spektraldensitometer FD-7 und FD-5 Messgert der neuesten Generation zur Messung von Farbe, Farbdichte und Licht KONICA MINOLTA u Giving Shape to Ideas

Open the catalog to page 1

Konica Minolta Sepctrodensitometer FD-7 / FD-5-2

cop Cat ref_09.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:20.00pt "Arial", sans-serif; } .font4 { font:23.00pt "Arial", sans-serif; } FD-7/FD-5 Ultraleichtes Spektraldensitometer -das perfekte Instrument fur die konventionelle & digitale Druck- und Verpackungsindustrie Erstmals UV - Kalibrierung gemass ISO 13655 M1 Die neuen Konica Minolta FD Spektraldensitometer erfllen die Mess-bedigung M1 der ISO 13655:2009. Durch die...

Open the catalog to page 2

Konica Minolta Sepctrodensitometer FD-7 / FD-5-3

cop Cat ref_09.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.50pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:20.00pt "Arial", sans-serif; } .font5 { font:23.00pt "Arial", sans-serif; } .font6 { font:4.00pt "Microsoft Sans Serif", sans-serif; } .font7 { font:4.00pt "Tahoma", sans-serif; } .font8 { font:13.20pt "Tahoma", sans-serif; } Spektraldensitometer Wir tun alls, damit Sie mit Prazisionswerkzeugen arbeiten knnen Die regelm鴢ssig...

Open the catalog to page 3

Konica Minolta Sepctrodensitometer FD-7 / FD-5-4

cop Cat ref_09.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:7.50pt "Arial", sans-serif; } .font5 { font:8.00pt "Arial", sans-serif; } .font6 { font:9.00pt "Arial", sans-serif; } .font7 { font:12.00pt "Arial", sans-serif; } .font8 { font:5.00pt "Georgia", serif; } .font9 { font:12.00pt "Tahoma", sans-serif; } .font10 { font:4.00pt "Trebuchet MS", sans-serif; } Modell Spektraldensitometer...

Open the catalog to page 4
