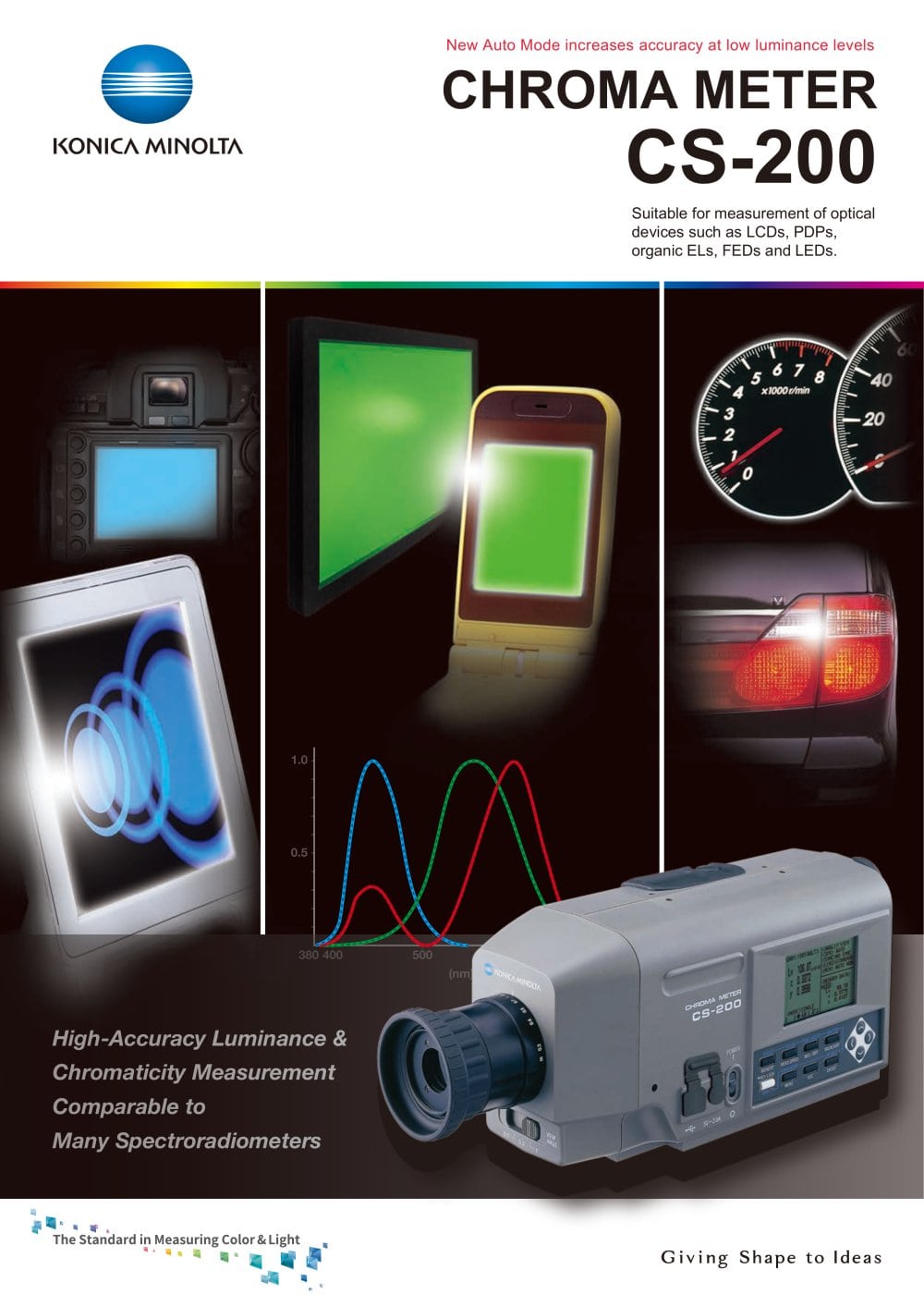

KONICA MINOLTA New Auto Mode increases accuracy at low luminance levels CHROMA METER CS-200 Suitable for measurement of optical devices such as LCDs, PDPs, organic ELs, FEDs and LEDs. 380 400 High-Accuracy Luminance & Chromaticity Measurement Comparable to Many Spectroradiometers * * « The Standard in Measuring Color& Light Giving Shape to Ideas

Open the catalog to page 1

The technological innovation of displays such as FPDs and LCDs as well as LED products in recent years requires high-quality production, resulting in the need for accurate measuring instruments. The CS-200 is a new type of colorimeter achieving high accuracy while maintaining the simple operation of tristimulus-type colorimeters. Three selectable angles of 1°, 0.2°, and 0.1° make it easy to measure large and very small objects in a wide measuring range from low luminance of 0.01 cd/m2 to high luminance of 20,000,000 cd/m2 (with a measuring angle of 0.1°). The CS-200 can be used for...

Open the catalog to page 2

Accurate measurement "Spectral fitting method" for accurate luminance & chromaticity measurement. Konica Minolta's newly-developed spectral fitting method provides tristimulus values (XYZ = red, green, blue) with significantly higher accuracy than that of conventional tristimulus colorimeters. This is achieved by using the output from 40 sensors to calculate the spectral response corresponding to human eye sensitivity (CIE 1931 color-matching functions). The CS-200 uses 40 sensors for sensitivity covering the entire visible region and multiplies each sensor output T by appropriate...

Open the catalog to page 3

| 1 ° aperture For measurement of general-size areas such as medium and large displays LCD, PDP, or EL display panels I LCD panels of mobile phones or digital cameras I Light sources such as lamps or fluorescent-tube backlights I Radar or other instrument panels in aircraft cockpits I Large outdoor display screens | 0.2° aperture For measurement of small areas such as product LEDs I Sub-display of mobile phones I Car audio equipment I Automobile instrument panels | 0.1° aperture For measurement of very small areas or of a distant light source Pixels of a PDP or LCD Cold cathode tube...

Open the catalog to page 4

<Functions common to Standard and Professional Editions> Interval and average measurements Color space Mode selection : Instrument control Data management : Data evaluation : Lvxy, Lv u' v', LvTAuv XYZ, dominant wavelength Normal mode Object color mode Average measurement Interval measurement User calibration Reading and saving files Data management with folders Observer/Illuminant settings Statistics display for each folder Box tolerance setting Data Management Software CS-S10w Professional (Optional accessory) In addition to the functions of Standard Edition, optional CS-S10w Professional...

Open the catalog to page 5

CS-200 specifications System Diagram Model *1 23°C ±2°C Lv = 0.01-10 cd/m2, SLOW, average of 30 measurements Lv = 10 cd/m2 and higher, SLOW, average of 10 measurements *2 At 0.2° measuring angle, the amount of received light is approx. 1/25 of that for 1°. Therefore, the repeatability becomes the same as that for 1° with 25 times lower luminance. At 0.1° measuring angle, the amount of received light is approx. 1/100 of that for1°. Therefore, the repeatability becomes the same as that for 1°with 100 times lower luminance. ISO Certifications of KONICA MINOLTA, Inc., Sakai Site JQA-QMA1588B...

Open the catalog to page 6
