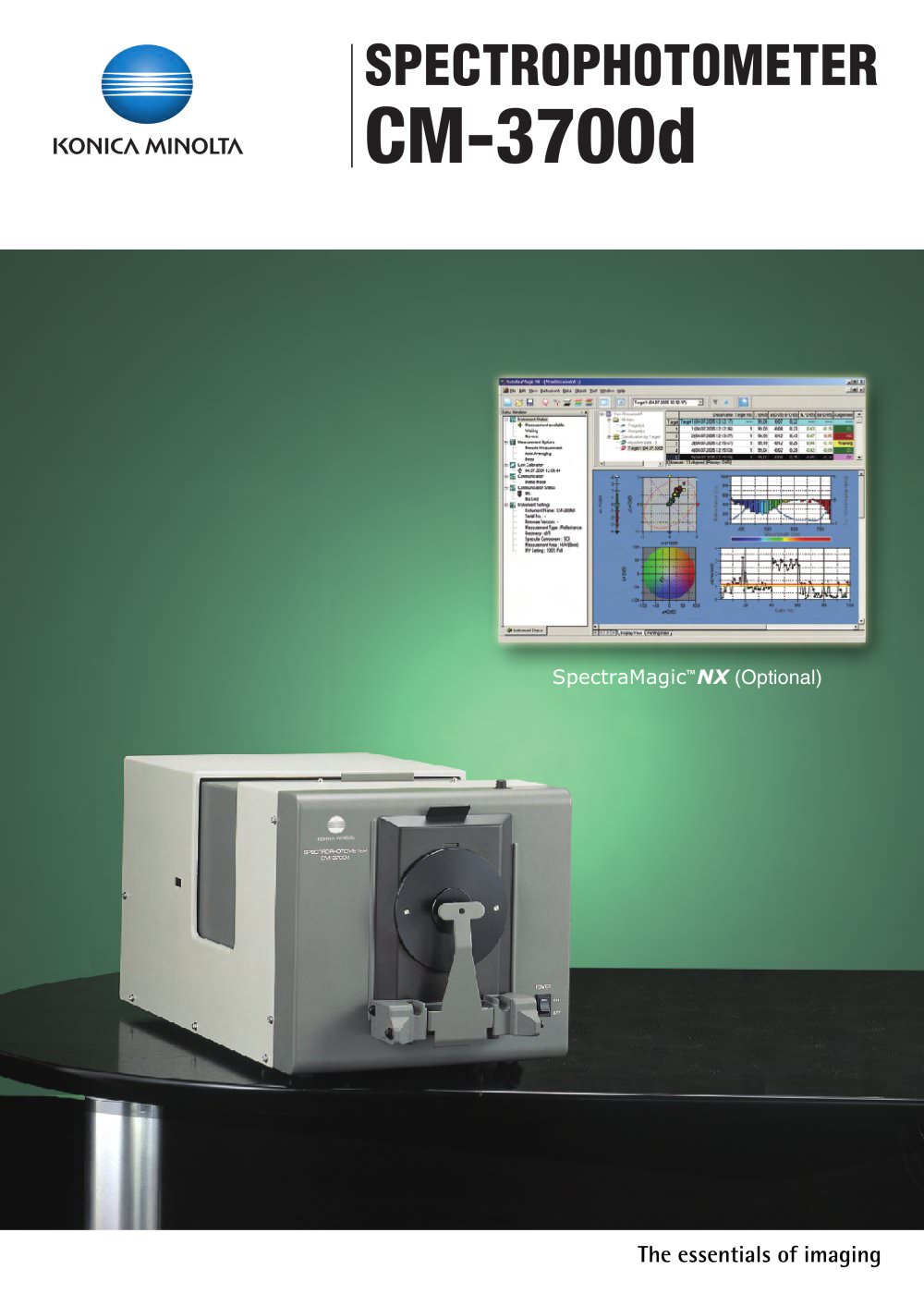

CM-3700d Spectrophotometer (spectral type, side port)

CM-3700d Spectrophotometer (spectral type, side port)

Product catalog summary

Overview: The CM-3700d is a high-accuracy benchtop spectrophotometer developed by Konica Minolta, designed for high-performance color measurement and analysis. It is suitable for research and development, quality control, and CCM applications.

Specifications: The spectrophotometer measures wavelengths from 360 to 740nm with a 10nm pitch, achieving high accuracy and repeatability. It features a pulsed xenon lamp for stability and a silicon photodiode array sensor for quick conversion of light to electrical currents. The device supports both SCI and SCE measurements and offers changeable measurement areas.

Standards and Compliance: The CM-3700d meets ISO, DIN, CIE, and ASTM standards for illumination/viewing geometry. It includes a UV cutoff filter for fluorescent material measurement and a low-illumination setting to reduce light quantity.

Features: The spectrophotometer includes a double-beam feedback system for light monitoring, a flat holographic grating for wavelength separation, and a 6-inch integrating sphere with a barium sulfate coating. It also supports transmittance measurements and variable UV control.

Accessories: Standard accessories include a white calibration plate, target masks, an AC adapter, and RS-232C cables. Optional accessories include transmittance specimen holders, glass and plastic cells, and color tiles.

Software: SpectraMagicTM NX software (optional) supports comprehensive color inspection and analysis, offering features like digital image insertion, multiple color spaces, and customizable reports.

Safety Precautions: Users are advised to read the instruction manual before use and ensure the instrument is connected to the specified power supply to prevent fire or electric shock.
