Introduction
The CR-400/410 series are advanced colorimeters designed to succeed the CR-300/310 series, offering improved features for color measurement across various industries. The CR-400 has a measurement area of Ø8mm, while the CR-410 has a larger area of Ø50mm.

Key Features

Detachable Measuring Head: Operates independently or connects to a PC for flexible usage.
User-Defined Evaluation Formulas: Customizable formulas for specific industry needs.
Data Processor DP-400: Compact, lightweight, with a built-in high-speed printer and battery operation.
Data Compatibility: Compatible with CR-300/310 series data for seamless upgrades.
Accuracy: High inter-instrument agreement and repeatability, with user calibration functions.
Storage Capacity: Stores up to 1,000 measurements, expandable to 2,000 with the data processor.
Display and Interface: Large LCD with backlight, supporting multiple languages and direct data transfer to Excel.

Accessories

Granular-Materials Attachment CR-A50: For measuring powders, pastes, and grains.
Glass Light-Projection Tubes: Various models for different measurement needs.
Pivoting Base CR-A12: Enhances stability and accuracy for the CR-400.

Software and System Requirements

Color Data Software: ChromaMagic CR-S3w and CR-400 Utility Software CR-S4w for color analysis.
System Requirements: Compatible with Windows 95/98/2000/XP and NT 4.0.

Safety and Usage
Users should read the instruction manual thoroughly and adhere to power requirements to prevent hazards.

Conclusion
The CR-400/410 series offers advanced features and flexibility for precise color measurement, suitable for various industries.

Chroma Meter Measuring Head Overview

Models: CR-400 Head, CR-410 Head

Illuminating/Viewing System: d/0 system with diffuse illumination and a 0° viewing angle.

Detector: Silicone photo cells (6)

Display Range: Y: 0.01 to 160.00% reflectance

Light Source: Pulsed xenon lamp

Measurement Time: 1 second

Minimum Measurement Interval: 3 seconds

Battery Performance: Approximately 800 measurements under specific conditions

Measurement/Illumination Area: CR-400: φ8/φ11, CR-410: φ50/φ53

Repeatability: Within ∆E*ab 0.07 standard deviation

Inter-Instrument Agreement: CR-400: ∆E*ab within 0.6, CR-410: ∆E*ab within 0.8

Observer: 2 degrees, closely matches CIE 1931 Standard Observers

Illuminant: C, D65

Display: Chroma values, color difference values, PASS/WARN/FAIL display

Tolerance Judgment: Color difference tolerance with box and elliptical tolerance

Color Space/Colorimetric Data: Includes various color spaces and indices.

Languages: Operating keys and LCD default in English, with options for other languages.

Storable Data Sets: 1000 sets

Color Difference Target Colors: 100

Calibration Channels: 20 channels

Display: Dot-matrix LCD with backlight

Interface: RS-232C compliant

Power Source: 4 AAA batteries or AC adapter

Size and Weight: CR-400: 102x217x63mm, 550g; CR-410: 102x244x63mm, 570g

Operating Conditions: 0 to 40°C, relative humidity 85% or less

Storage Conditions: -20 to 40°C, relative humidity 85% or less

Additional Features: LCD backlight with ON/OFF function

Note: Some functions are unavailable when the measuring head is not connected to the Data Processor.

Catalog excerpts

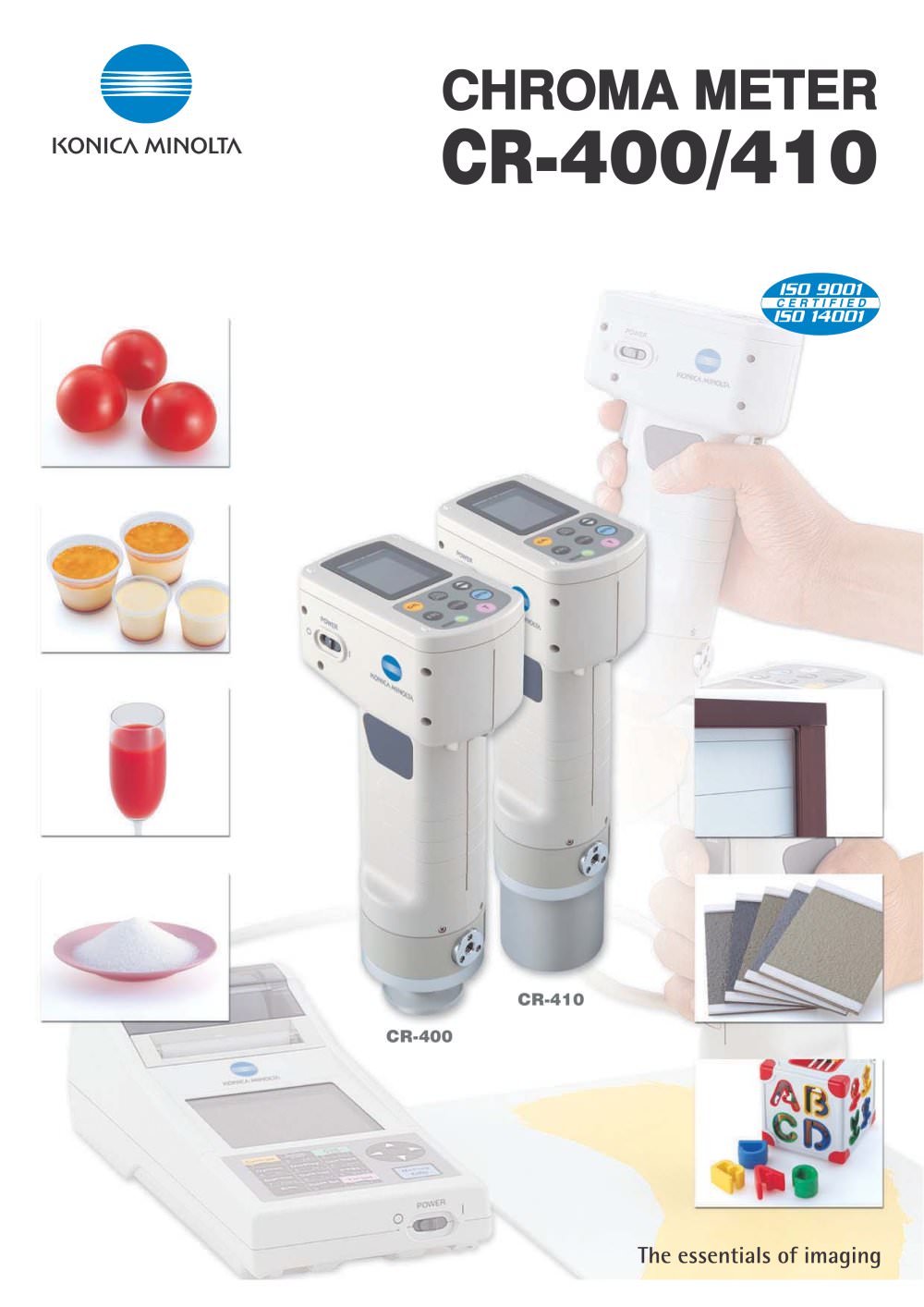

CHROMA METER CHROMAMETER >

Open the catalog to page 1

CR-400 Data Processor DP-400CR-410 Easy-to-understand the name on the buttons, ensure smooth measurement and setting operations.Achieves exceptional accuracy > Inter-instrument agreement : CR-400: ∆ E*ab within 0.6 CR-410: The measuring head is detachable from the data processor. Now, you can take measurements directly with the head alone. What's more, you can connect the measuring head directly to a PC. Simply install our optional software, and your PC can function as the data processor. ∆ E*ab within 0.8 Repeatability : within ∆ E*ab 0.07 User calibration function ensures higher accuracy. >...

Open the catalog to page 2

Granular-MaterialsAttachment Glass Light-Projection Tube CR-A50 CR-A33f (For CR-400) CR-A33e (For CR-410) > 2 Note: The evaluation formula and grade indicated above are hypothetical examples used only to demonstrate the user index function. size="-1">

Open the catalog to page 3

Un i ts : mm Name Chroma Meter Measur i ng Head Model CR-400 HeadCR-410Head > Illum i nat i ng/v i ew i ng system d/0 (D i ffuse i llum i nat i on/0 v i ew i ng angle) W i de-area i llum i nat i on/0 а v i ew i ng angle 63 102 63 102 (Specular component i ncluded)(Specular component i ncluded)DetectorS i l i cone photo cells (6)D i splay rangeY : 0.01 to 160.00% (reflectance) L i ght sourcePulsed xenon lampMeasurement t i me1 seconds. M i n i mum measurement i nterval 3 seconds.Battery performanceApprox. 800 measurements(when us i ng batter i es under company test i ng Kon i ca M i nolta's cond...
