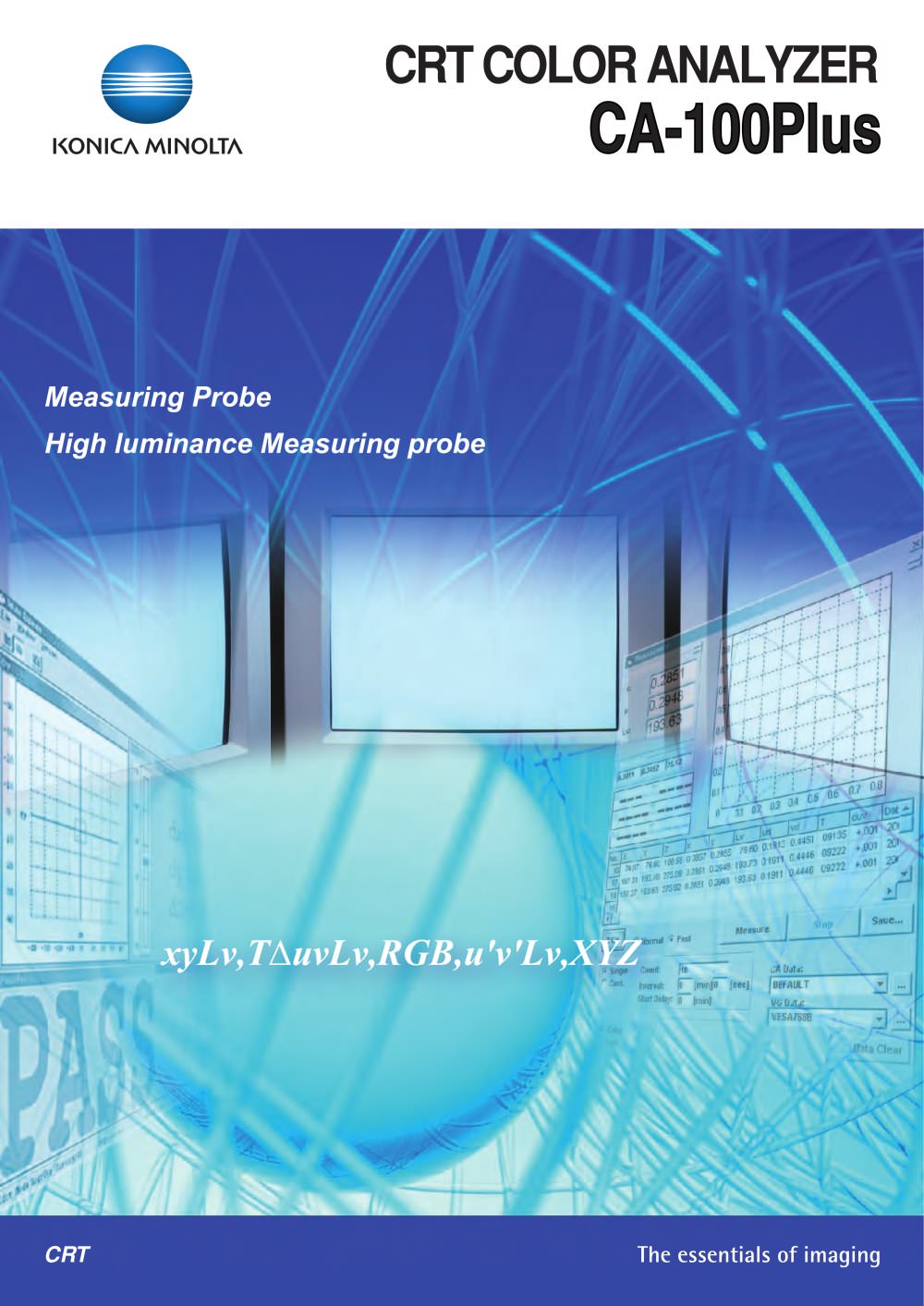

CA-100Plus CRT Color Analyzer
1 / 4 PagesView full catalog
CA-100Plus CRT Color Analyzer
Product catalog summary
Overview: The document provides detailed specifications and operational guidelines for the CRT Color Analyzer CA-100Plus, a device used for measuring luminance and chromaticity of displays.
Specifications:
- Detector: Silicon photo cell.
- Luminance Measurement Range: 0.05 to 2000 cd/m2.
- Accuracy: ±0.002 for white, ±0.004 for R, G, B chromaticity.
- Repeatability: Varies with luminance range, with specific values provided for different ranges.
- Measurement Speed: Up to 20 measurements per second.
- Interface: USB and RS-232C.
- Operating Conditions: Temperature 10 to 28°C, relative humidity 70% or less without condensation.
Features:
- Fast measurement capabilities, reducing time for automatic adjustments.
- Precise measurements at low luminance levels.
- Compatibility with CA-100 and expandable to support up to five probes.
- Bundled with sample software for easy PC control.
Probes:
- Four types of probes available, with cable lengths of 2 m and 5 m, including high luminance options.
- Up to five probes can be connected to a single main body using an optional extension board.
Applications:
- Chromaticity adjustment and inspection.
- White-balance adjustment and inspection.
- Cut-off adjustment and inspection.
Safety Precautions:
- Read the instruction manual before use.
- Ensure connection to the specified power supply voltage to prevent fire or electric shock.
Additional Information:
- Includes a system diagram and details on optional accessories like the 4-Probe Expansion Board and PC software.
- Matrix calibration method using Konica Minolta's spectroradiometer CS-1000A for high-accuracy measurements.
