- Low-floor Multiple Units
Low-floor Multiple Units
Low-floor Multiple Units
- Track Gauge: 1435 mm for both EMU and DEMU.
- Axle Arrangement: EMU: Bo’2’2’2’Bo’, DEMU: Bo’2’2’Bo’.
- Catenary Supply Voltage: 25 kV, 50 Hz for EMU.
- Continuous Power: 2000 kW for EMU, DEMU has 2 x 390 kW diesel motors.
- Maximum Speed: 160 km/h for EMU, 120 km/h for DEMU.
- Overall Length: 75000 mm for EMU, 58500 mm for DEMU.
- Carbody Width: 2885 mm for both.
- Height with Lowered Pantograph: 4280 mm for both.
- Number of Entrance Doors: 4 on each side for both.
- Width of Entrance Doors: 1300 mm for both.
- Floor Height: 600 mm for EMU, 600/1200 mm for DEMU.
- Total Passenger Capacity: Urban and Commuter: 420 (211 sitting) for EMU; Regional: 505 (135 sitting) for EMU, 323 (160 sitting) for DEMU.
- Active and passive safety systems compliant with crashworthiness standards.
- Integrated passenger area without partition walls or doors.
- Air suspension and HVAC systems with comfortable seating.
- Wide entrance doors and platform-level floors for easy boarding.
- Multi-purpose space for wheelchair users with hydraulic lift.
- Eco-friendly vacuum toilets, including one for wheelchair users.
- Passenger Information System (PIS) with visual and audio announcements.
- Comprehensive video surveillance.
- Designated space for bicycles.
- Ergonomically designed and air-conditioned drivers’ cab.
- Capable of multiple operations with up to three units.
- High reliability with low operational and maintenance costs.
- GPS positioning and vehicle data exchange.
- Company: KONČAR - Electric Vehicles Inc.
- Location: Ul. Ante Babaje 1, 10090 Zagreb, Croatia
- Contact: Phone: +385 1 3496 933, Email: [email protected]
- Website: www.koncar.hr/en/koncar-electric-vehicles
Catalog excerpts

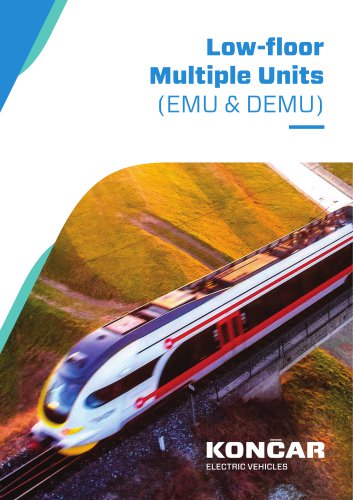

Low-floor Multiple Units (EMU & DEMU)
Open the catalog to page 1
Technical specifications
Open the catalog to page 2
Key features • Active and passive safety systems for passengers and operating personnel, compliant with the latest crashworthiness standards • A fully integrated passenger area without partition walls or doors, allowing for a seamless travel experience • Air suspension system; HVAC system; comfortable seating • Wide entrance doors and platform-level floors for easy boarding • Multi-purpose space for wheelchair users with a hydraulic lift for easier boarding and disem
Open the catalog to page 3
• Eco-friendly vacuum toilets, including one designed for wheelchair users • Passenger information system (PIS) with visual and audio announcements • Comprehensive video surveillance covering the entire passenger area • Designated space for bicycles • Ergonomically designed and air-conditioned drivers’ cab • Capable of multiple operations with up to three units • High reliability with low operational and maintenance costs • GPS positioning • Vehi
Open the catalog to page 4
ICON CARELECTRIC VEHICLES KONCAR - Electric Vehicles Inc. for manufacturing Ul. Ante Babaje 1, 10090 Zagreb, Croatia phone: +385 1 3496 933 e-mail: [email protected] www.koncar.hr/en/koncar-electric-vehicles
