Controllers EDU series

Product catalog summary

Overview: The document provides detailed information about the EDU series controllers by Kolver S.r.l, designed to work with FAB, RAF, and Pluto series screwdrivers. These controllers function as AC to DC transformers and torque controllers, ensuring precise torque application in industrial environments.

Specifications: The controllers feature heavy-duty construction suitable for industrial use, offering options such as soft start, adjustable speed, torque signal, screw depth control, and more. The INSPECTOR system, a PLC-based process control, monitors the fastening assembly process, ensuring quality control by tracking and notifying operators of assembly completion.

Key Features:

Setup for the number of screws per cycle (1 to 99999) and display of completed, acceptable, and rejected assemblies.
Minimum and maximum fastening time settings to prevent errors such as counting re-fastened or stripped screws.
Remote starting and reversing capabilities.
Output signals for torque reached, lever, cycle end, and alarms.

Multiple Torque System: This system enhances the functionality of the PLUTO screwdriver and EDU1AE controller, allowing access to multiple torque settings with a single controller and driver. It includes a control unit with PLC, a socket tray with 8 positions, and a Pluto screwdriver. The system automatically adjusts to the pre-set torque when a bit is selected from the tray.

Models and Specifications:

EDU 1FR: Input 90-230V AC, output 18-27V DC, power 120VA, suitable for FAB and RAF series.
EDU 1FR/SG: Similar to EDU 1FR with additional start and reverse contacts.
EDU 1FR/PLC: Includes a programmable system for FAB and RAF series.
EDU1AE: Torque range 2-15 Nm, programmable with user interface screens, suitable for PLUTO series.
EDU1AE/PLC/CC: Features a multiple torque system for PLUTO series.

Conclusion: The EDU series controllers by Kolver offer advanced features for precise torque control in industrial applications, with options for customization and integration into existing systems.

Catalog excerpts

Modello Code Features Dim. mm. Weight kg. For screwdrivers EDU 1FR 010010/FR In: 90-230V ac out: 18-27 dc - power 120VA - slow start and adjustable speed 130 x 118 x 67 0,6 Series FAB and RAF EDU 1FR/SG 010010/FR/SG like above - input: start and reverse contacts Output: torque reached & lever signal 130 x 118 x 67 0,6 Series FAB and RAF EDU 1FR/PLC 010010/FR/PLC like above - with programmable system, operating instructions 135 x 115 x 135 1,2 Series FAB and RAF >

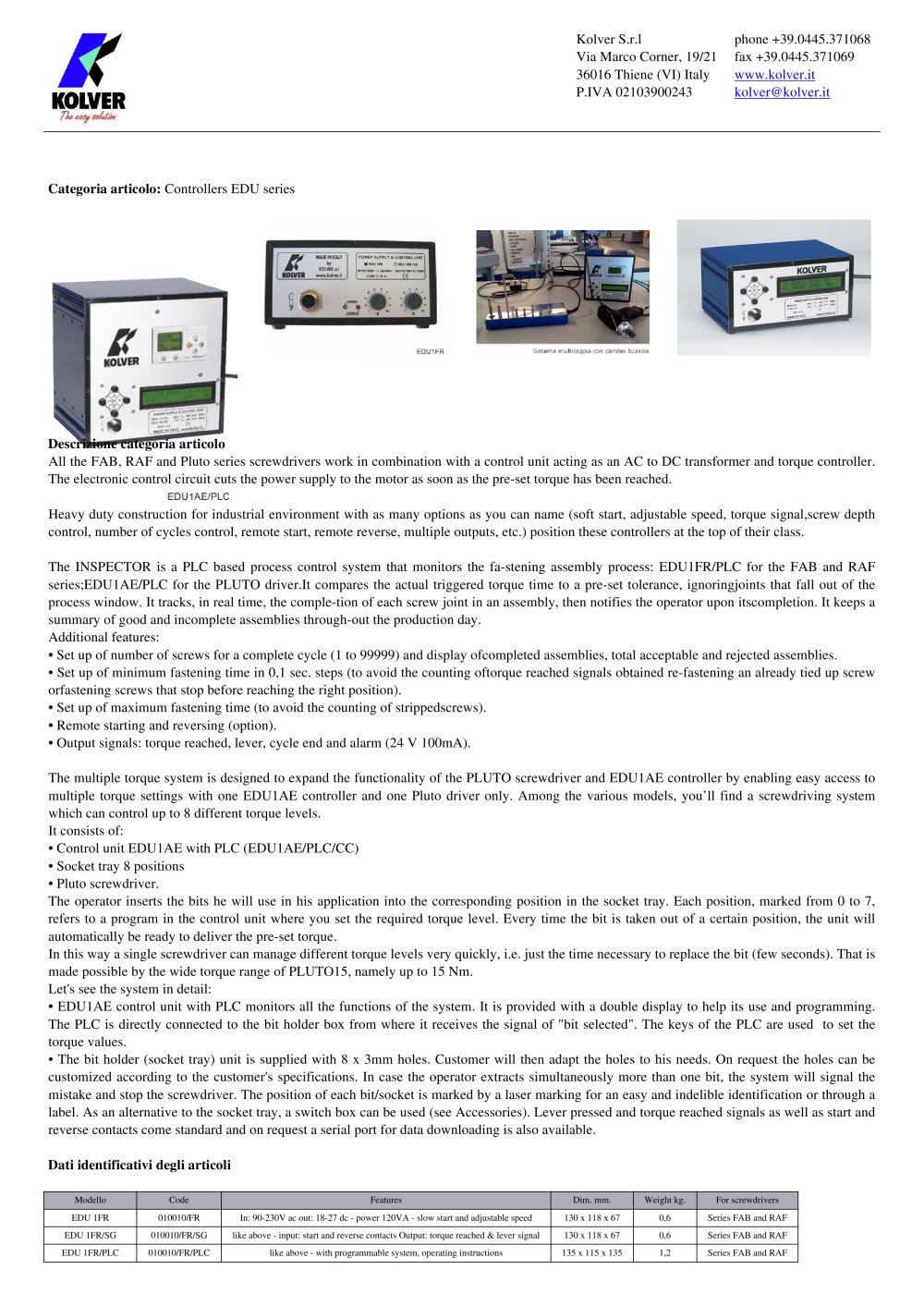

Open the catalog to page 1

EDU1AE 030000 Torque range 2 15 Nm - Programmable with user interface screens 185 x 185 x 95 4,250 Series PLUTO EDU1AE/C 030000/C Remote double torque selection 185 x 185 x 95 4,250 Series PLUTO EDU1AE/LTP 030000/LTP Torque range 0,6-6,8 Nm - PL10: max 400RPM - PL15: max 220 RPM 185 x 185 x 95 4,250 Series PLUTO EDU1AE/PLC 030000/PLC Torque range 2 15 Nm - with programmable system 185 x 185 x 95 4,250 Series PLUTO EDU1AE/PLC/CC 030000/PLC/CC Torque range 2-15 Nm with multiple torque system 185x140x185 4,250 Series PLUTO >

Open the catalog to page 2
