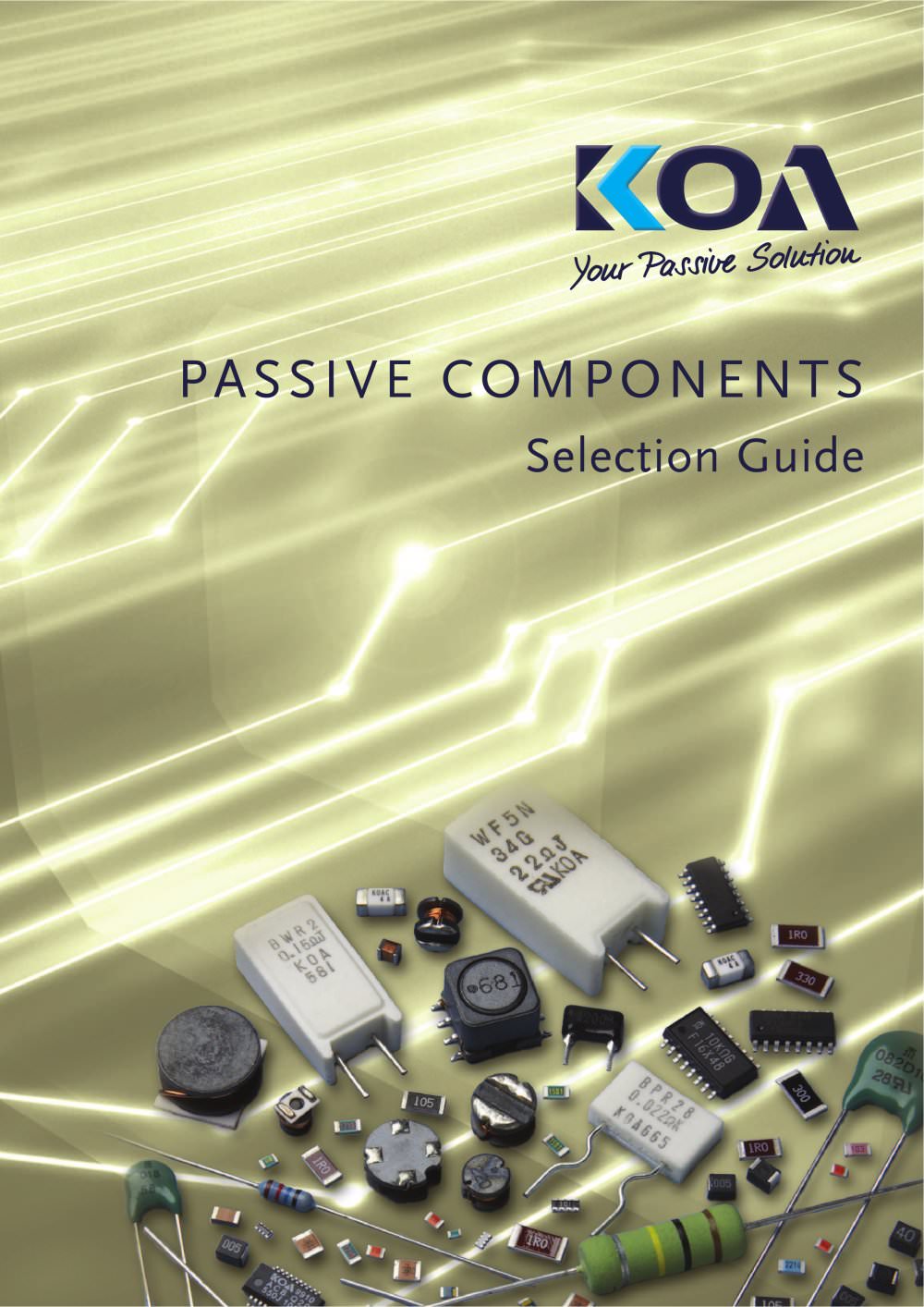

KOA Passive Components Selection Guide
1 / 8 PagesView full catalog
KOA Passive Components Selection Guide
Product catalog summary
Overview: The document provides a comprehensive overview of various types of resistors and networks, detailing their applications, material compositions, and structural designs. It covers general-purpose, precision, anti-surge, high voltage, and high resistance applications.
1. Leaded Resistors and Networks:
- General Purpose: Includes reduced size and flame-proof options like CF/CFS/CFP Series.
- High Power Resistors: SPR and SPRX series.
- Metal Film: General purpose and precision series such as MF/MFS/SN/RK and RNS/SF.
- Metal Oxide: MO/MOX and MOS/MOSX series for general and reduced size applications.
- Carbon Film: Power and precision power types like CW/CWP and RW Series.
- Wirewound: Includes fixed anti-surge and high voltage options like RCR and GS Series.
2. Flat Chip Resistors and Arrays:
- General Purpose: RK73B series.
- Precision and High Precision: RK73H and RK73G series.
- Audio and Trimmable Chips: RK73A and RK73N series.
- Zero Ohm: RK73Z series.
3. Current Sensing Resistors:
- Low-ohm and Ultra-low Ohm: SR73 and UR73 series.
- High Power: New series like PSB, PSI, and PSE.
- Ceramic Case: New BLR Series.
4. Circuit Protection Products:
- Thermistors and Sensors: Includes platinum sensors and chip fuses.
- Varistors: Metal oxide varistors like NV73 and NVD series.
5. Magnetic Solutions:
- Power and Shielded Inductors: LPC/SDR and SDS series.
- Choke Coils: Standard and high power options like CZB and CZP.
6. Surface Mount EMI/EMC Filters:
- Features high-performance ferrite bead and three-terminal construction.
7. Resistor Networks:
- Precision Voltage Dividers: RTX and RTY series.
- Special Networks: RDA, RDB, and RLA series.
Conclusion: The document outlines a wide range of resistor types and related components, emphasizing their diverse applications and technical specifications. It highlights innovations in design and material use to meet various industry needs.
