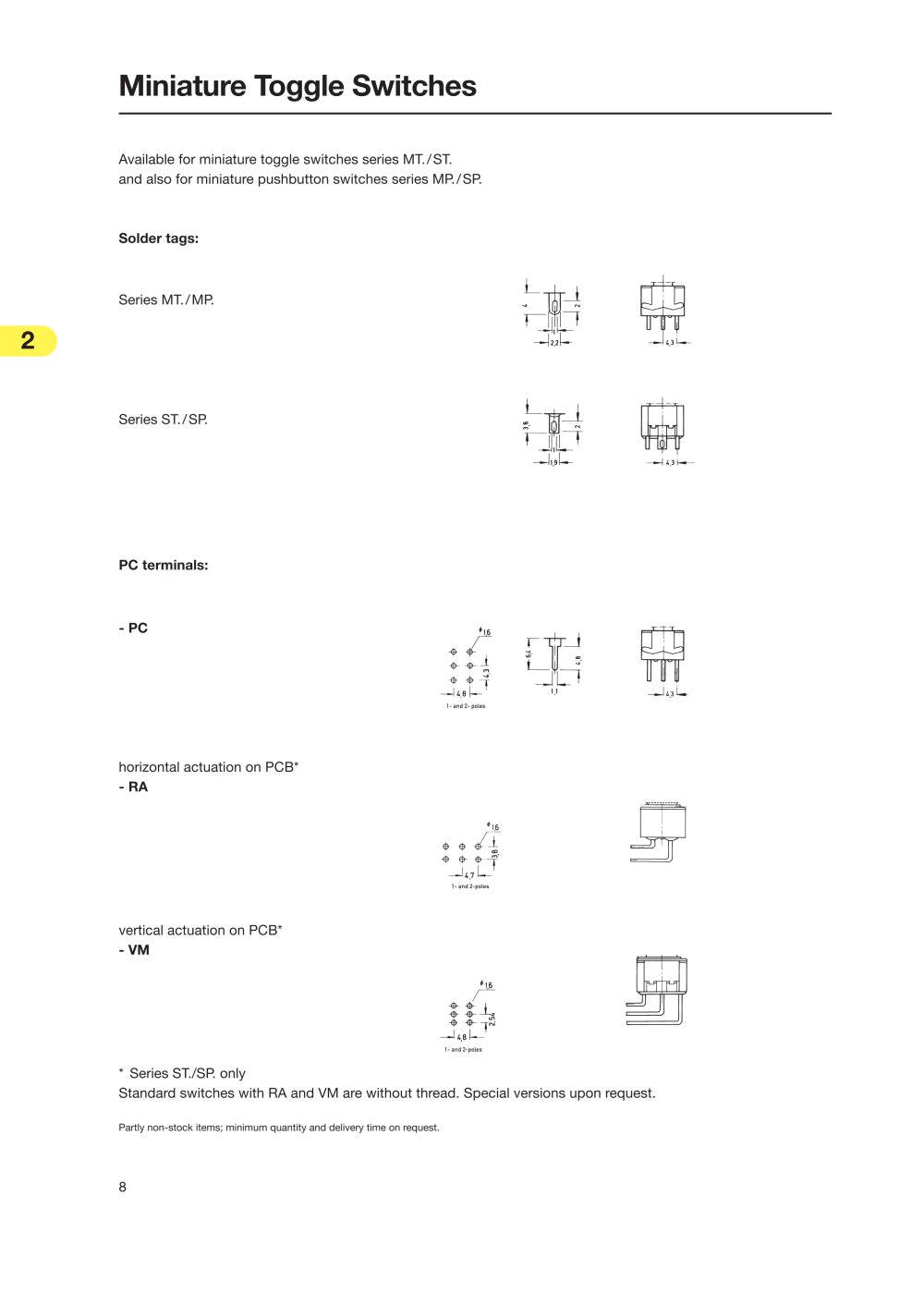

Available for miniature toggle switches series MT./ST.and also for miniature pushbutton switches series MP./SP. Solder tags: Series MT./MP.Series ST./SP. > PC terminals:-PC > 1- and 2- poles horizontal actuation on PCB* -RA > 1- and 2-poles vertical actuation on PCB* -VM > 1- and 2-poles *Series ST./SP. onlyStandard switches with RA and VM are without thread. Special versions upon request. > Partly non-stock items; minimum quantity and delivery time on request. 8 >

Standard levers: Series MTA/STAwaterproof IP 67Series MTE > Special levers: shortSeries MTM/STMflat, with decorative nutSeries MTF Mustang levers: Series MTGlong, waterproof IP 67Series MTW Locking lever: Series MTL 9 >

Models: Switching functions SPDT STA 106 DononSTA 106 Eonoffon STA 106 Fmom֖on STA 106 GmomoffmomSTA 106 HmomoffonDPDTSTA 206 NononSTA 206 Ponoffon STA 206 Rmom֖onSTA 206 SmomoffmomSTA 206 Tmomoffon STA 206 PAononon STA 206 SAmomonmomSTA 206 TAmomonon3PDTSTA 306 DononSTA 306 Eonoffon 4PDTSTA 406 Non֖onSTA 406 PonoffonSTA 406 PAononon > keyway keyway keyway keyway 11 >

for horizontal mounting, without thread Specifications: Contact rating:250 V AC, 3 A / 125 V AC, 6 A30 VDC, 4A / 12 VDC, 5A6 VDC,6 AContact resistance:<10 m Insulation resistance:>1000 M at 500 VDCDielectric strength:1500 V, 50 Hz for the duration of 1 minuteOperating temperature:20ְto +80C Mechanical life:minimum 100000 operationsContacts:coin silver (common contact copper alloy, silver-plated)Terminals:PC terminals, copper alloy silver-plated Material:case: diallyle-phthalate, meets UL 94 VЖ0, greenlever: chromium-plated, metal parts: nickel-platedMounting:on pc-board, horizontal mounting...

for vertical mounting, without thread Specifications: Contact rating:250 V AC, 3 A / 125 V AC, 6 A30 VDC,4A / 12 VDC, 5A6 VDC,6 AContact resistance:<10 m Insulation resistance:>1000 M at 500 VDCDielectric strength:1500 V, 50 Hz for the duration of 1 minuteOperating temperature:20ְto + 80C Mechanical life:minimum 100000 operationsContacts:coin silver (common contact copper alloy, silver-plated)Terminals:PC terminals, copper alloy silver-plated Material:case: diallyle-phthalate, meets UL 94 VЖ0, greenlever: chromium-plated, metal parts: nickel-platedMounting:on pc-board, vertical mounting...

Models: Switching functionsSPDT MTA 106 DononMTA 106 EonoffonMTA 106 Fmom֖onMTA 106 Gmomoffmom MTA 106 HmomoffonDPDTMTA 206 NononMTA 206 Ponoffon MTA 206 Rmom֖on MTA 206 SmomoffmomMTA 206 Tmomoffon > keyway keyway measures: a = 9, b = 141 MTA 206 PAonononMTA 206 SAmomonmom MTA 206 TAmomonon > measures: a = 11,5, b = 16,5ѱ1 3PDTMTA 306 DononMTA 306 EonoffonMTA 306 Fmom֖on MTA 306 GmomoffmomMTA 306 HmomoffonMTA 306 EA*ononon4PDTMTA 406 NononMTA 406 PonoffonMTA 406 Rmom֖on MTA 406 SmomoffmomMTA 406 TmomoffonMTA 406 PAononon MTA 406 SAmomonmom MTA 406 TAmomonon > keyway keyway *Non-stock item;...

waterproof Models: Switching functions 3PDTMTE 306 DononMTE 306 EonoffonMTE 306 F*mom֖on MTE 306 G*momoffmomMTE 306 H*momoffon4PDTMTE 406 NononMTE 406 Ponoffon MTE 406 R*mom֖on MTE 406 S*momoffmomMTE 406T*momoffonMTE 406 PA*ononon MTE 406 SA*momonmomMTE 406TA*momonon SPDT MTE 106 DononMTE 106 EonoffonMTE 106 Fmom֖onMTE 106 Gmomoffmom MTE 106 H*momoffonDPDTMTE 206 NononMTE 206 PonoffonMTE 206 Rmom֖on MTE 206 SmomoffmomMTE 206 Tmomoffon > flat flat measures: a = 9, b = 14,51 MTE 206 PAonononMTE 206 SA*momonmom MTE 206 TA*momonon > measures: a = 11,5, b = 17ѱ1 flat flat *Non-stock item;...

with locking lever Specifications: Contact rating:250 V AC, 3 A / 125 V AC, 6 A30 VDC,4A /12 VDC, 5A6 VDC,6 AContact resistance:<10 m Insulation resistance:>1000 M at 500 VDCDielectric strength:1500 V, 50 Hz for the duration of 1 minuteOperating temperature:45ְto + 140C Mechanical life:minimum 300000 operationsContacts:coin silver (common contact copper alloy, silver-plated)also available gold-plated, version B and G (see page 4)Terminals:solder tags, copper alloy silver-platedMaterial:case: diallyle-phthalate, meets UL 94 VЖ0, blacklever: chromium-plated, metal parts:...

with locking lever Models Switching functions 3PDTMTL 306 Donon 4PDTMTL 406 Non֖onMTL 406 P*onoffon SPDT > keyway MTL 106 DononMTL 106 EonoffonDPDTMTL 206 Non֖onMTL 206 Ponoffon > keyway measures: a = 9, b = 15 1 MTL 206 PAononon > measures: a = 11,5, b = 17,5ѱ1 keyway keyway *Non-stock item; minimum quantity and delivery time on request. 19 >

Models: Switching functions 3PDTMTG 306 DononMTG 306 E*onoffonMTG 306 F*mom֖on MTG 306 G*momoffmomMTG 306 H*momoffon4PDTMTG 406 NononMTG 406 P*onoffonMTG 406 R*mom֖onMTG 406 S*momoffmom MTG 406T*momoffonMTG 406 PA*onononMTG 406 SA*momonmom MTG 406TA*momonon SPDT MTG 106 DononMTG 106 Eonoffon MTG 106 Fmom֖onMTG 106 GmomoffmomMTG 106 Hmomoffon > 15/32-32 THD keyway DPDTMTG 206 NononMTG 206 PonoffonMTG 206 Rmom֖on MTG 206 SmomoffmomMTG 206 Tmomoffon > 15/32-32 THD keyway measures: a = 9, b = 13 1 MTG 206 PA*ononon MTG 206 SA*momonmomMTG 206 TA*momonon > measures: a = 11,5, b = 15,5ѱ1 15/32-32...

waterproof Specifications: Contact rating:250 V AC, 3 A / 125 V AC, 6 A30 VDC,4A / 12 VDC, 5A6 VDC,6 AContact resistance:< 10 m Insulation resistance:> 1000 M at 500 VDCDielectric strength:1500 V, 50 Hz for the duration of 1 minuteOperating temperature:45ְto +140C Mechanical life:minimum 100000 operationsContacts:coin silver (common contact copper alloy, silver-plated)also available gold-plated version B and G (see page 4)Terminals:solder tags, copper alloy silver-plated; further terminal versions see page 8Water proofing:30 minutes at 1 m water column; IP 67Sealing: neoprene O-rings...

ESD proof Specifications: Contact rating:20 V AC, 0,4 VAContact resistance:< 10 m Insulation resistance:> 1000 M Dielectric strength:1000 V, 50 Hz for the duration of 1 minute Operating temperature:20ְto + 85CMechanical life:minimum 100000 operationsContacts:gold-plated over nickel barrier Terminals:solder tags or PC terminalsMaterial:case: PA/PES meets UL 94 VЖ0, waterprooflever: PA meets UL 94 V0, waterproofMounting:bushing > 1 / > 4 ֔ (6,35 mm), with locking ringor on pc-board Soldering conditions:hand-soldering max.: 5 sec, 300ְCauto-soldering max.: 5 sec, 260ְC ESD resistance:> 10 kV...
