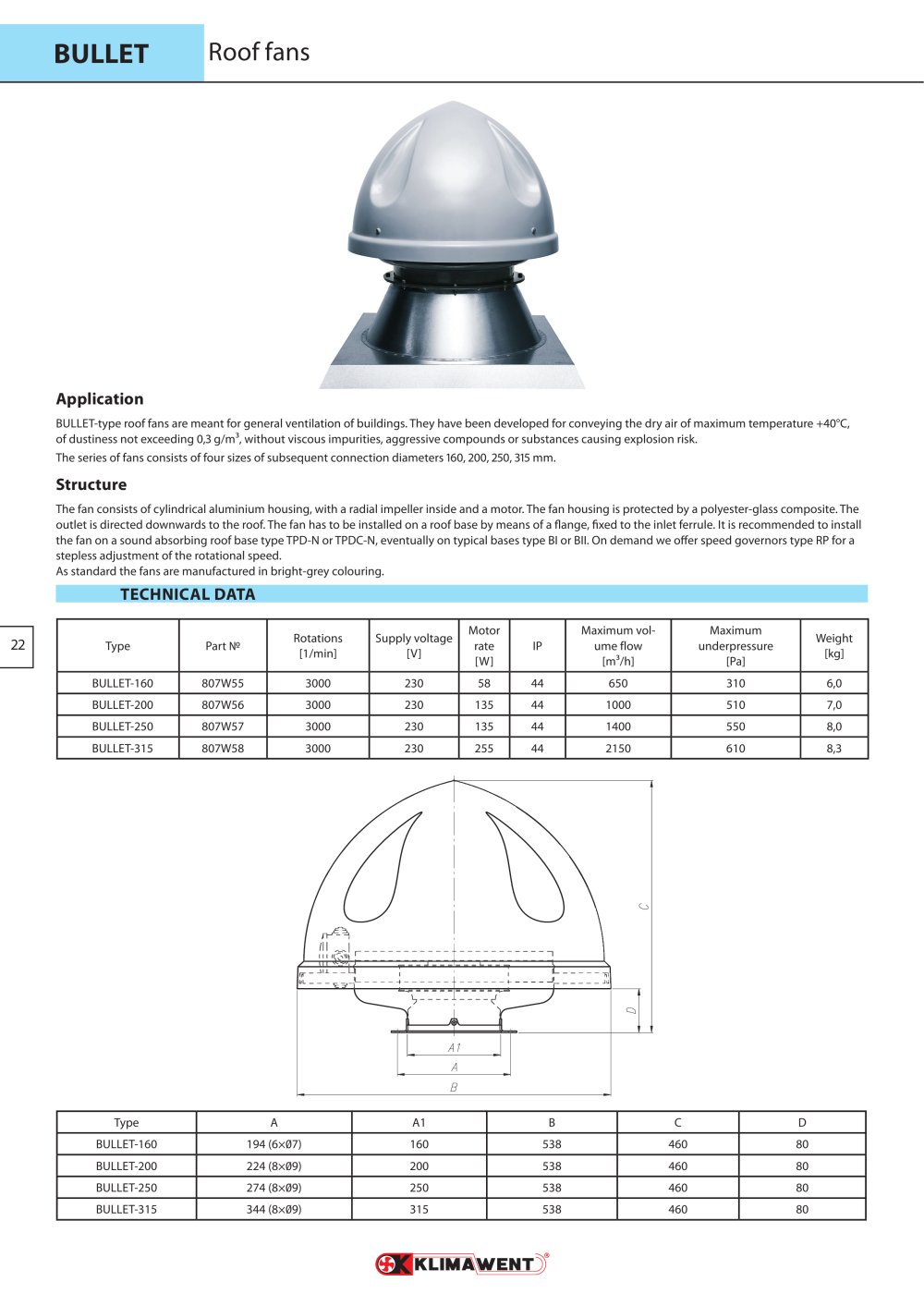

22 Type Part ¹ Rotations [1/min] Supply voltage [V] Motor rate [W] IP Maximum vol- ume flow [m³/h] Maximum underpressure [Pa] Weight [kg] BULLET-160 807W55 3000 230 58 44 650 310 6,0 BULLET-200 807W56 3000 230 135 44 1000 510 7,0 BULLET-250 807W57 3000 230 135 44 1400 550 8,0 BULLET-315 807W58 3000 230 255 44 2150 610 8,3 TECHNICAL DATA BULLET Type A A1 B C D BULLET-160 194 (6×ðH7) 160 538 460 80 BULLET-200 224 (8×ðH9) 200 538 460 80 BULLET-250 274 (8×ðH9) 250 538 460 80 BULLET-315 344 (8×ðH9) 315 538 460 80 Application BULLET-type roof fans are meant for general ventilation of buildings. They have been developed for conveying the dry air of maximum temperature +40°C, of dustiness not exceeding 0,3 g/m³, without viscous impurities, aggressive compounds or substances causing explosion risk. The series of fans consists of four sizes of subsequent connection diameters 160, 200, 250, 315 mm. Structure The fan consists of cylindrical aluminium housing, with a radial impeller inside and a motor. The fan housing is protected by a polyester-glass composite. The outlet is directed downwards to the roof. The fan has to be installed on a roof base by means of a fl ange, fi xed to the inlet ferrule. It is recommended to install the fan on a sound absorbing roof base type TPD-N or TPDC-N, eventually on typical bases type BI or BII. On demand we off er speed governors type RP for a stepless adjustment of the rotational speed. As standard the fans are manufactured in bright-grey colouring. Roof fans

23 BULLET-160 BULLET-200 BULLET-315 Volume fl ow [m³/h] Volume fl ow [m³/h] Volume fl ow [m³/h] Static pressure [Pa] Noise level [dB(A)] Noise level [dB(A)] from distance 1m from distance 1m 5m 5m Volume fl ow [m³/h] Volume fl ow [m³/h] Volume fl ow [m³/h] Static pressure [Pa] Noise level [dB(A)] Noise level [dB(A)] from distance 1m from distance 1m 5m 5m BULLET-250 Volume fl ow [m³/h] Volume fl ow [m³/h] Volume fl ow [m³/h] Static pressure [Pa] Noise level [dB(A)] Noise level [dB(A)] from distance 1m from distance 1m 5m 5m Volume fl ow [m³/h] Volume fl ow [m³/h] Volume fl ow [m³/h] Static pressure...
