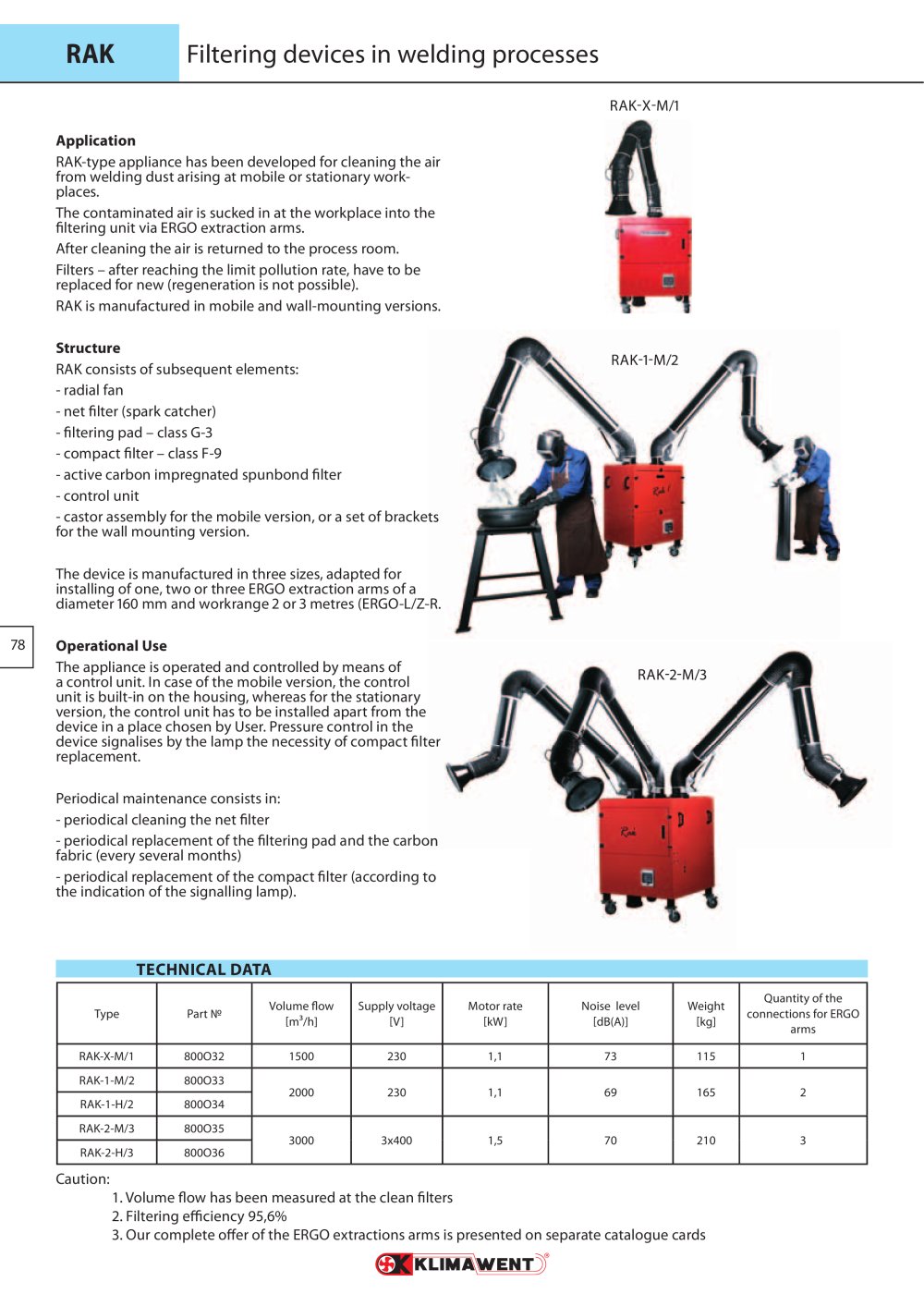

Type Part Volume ow m³/h] Supply voltage V] Motor rate kW] Noise level dB(A)] Weight kg] Quantity of the connections for ERGO arms RAK-X-M/1 800O32 1500 230 1,1 73 115 1 RAK-1-M/2 800O33 2000 230 1,1 69 165 2 RAK-1-H/2 800O34 RAK-2-M/3 800O35 3000 3x400 1,5 70 210 3 RAK-2-H/3 800O36 RAK TECHNICAL DATA Filtering devices in welding processes Application RAK-type appliance has been developed for cleaning the air from welding dust arising at mobile or stationary workplaces. The contaminated air is sucked in at the workplace into the ltering unit via ERGO extraction arms. After cleaning the air is returned to the process room. Filters – after reaching the limit pollution rate, have to be replaced for new (regeneration is not possible). RAK is manufactured in mobile and wall-mounting versions. Structure RAK consists of subsequent elements: - radial fan - net lter (spark catcher) - ltering pad – class G- - compact lter – class F- - active carbon impregnated spunbond lter - control unit - castor assembly for the mobile version, or a set of brackets for the wall mounting version. The device is manufactured in three sizes, adapted for installing of one, two or three ERGO extraction arms of a diameter mm and workrange or metres (ERGO-L/Z-R. Operational Use The appliance is operated and controlled by means of a control unit. In case of the mobile version, the control unit is built-in on the housing, whereas for the stationary version, the control unit has to be installed apart from the device in a place chosen by User. Pressure control in the device signalises by the lamp the necessity of compact lter replacement. Periodical maintenance consists in: - periodical cleaning the net lter - periodical replacement of the ltering pad and the carbon fabric (every several months) - periodical replacement of the compact lter (according to the indication of the signalling lamp). RAKM/ RAKM/ Caution: 1. Volume ow has been measured at the clean lters 2. Filtering e ciency 95,6% 3. Our complete o er of the ERGO extractions arms is presented on separate catalogue cards RAKXM/

Type Part Weight [kg] Dimensions AxBxC (mm) Filtration e ciency [%] Remarks FKR-X 838K12 17,72 610x610x292 95,6 1 pc in RAKX FKR-1 838K09 22,14 762x610x292 1 pc in RAK1 FKR-2 838K11 18,20 910x420x292 2 pc in RAK2 COMPACT FILTER REPLACEABLE FILTERS Type Part Weight [kg] Dimensions AxBxC (mm) Filtration e ciency [%] Remarks FWR-X 838F72 0,18 610x610x50 88 In each device is placed one ltration pad FWR-1 838F67 0,20 762x610x50 FWR-2 838F68 0,25 910x840x50 Type Part Weight [kg] Dimensions [mm] Remarks FCR-X 838F74 0,30 610x610x20 In each device is placed one spunbond format. FCR-1 838F69 0,32 762x610x20...
