Filtering unit — MATRIX 1000

Product catalog summary

Application
MATRIX-1000 is designed for air cleaning from dust at mobile welding stations and can capture other low-emission dusts (up to 10 dm³ per day) provided they are dry and non-explosive. It uses a cartridge filter with a Teflon membrane to capture dust particles smaller than 0.4µm. The unit supports extraction arms with a diameter of 160 mm and a work range of 2 meters. MATRIX-1000-1 supports one arm, while MATRIX-1000-2 supports two.

Structure
The MATRIX-1000 comprises a polyester-glass composite housing, a radial fan made of zinc-coated steel, a cartridge filter with a Teflon-coated membrane, rotary jets for filter regeneration, brackets for extraction arms, a control unit (manual or automatic), six wheels for mobility, and a vacuum cleaner for filter chamber cleaning.

Technical Data
The device comes in four models with varying features:

MATRIX-1000-1-S: Manual, 1000 m³/h flow, 0.75 kW motor, 230 V, 66 dB(A), 1 arm connection, 85 kg.
MATRIX-1000-1-A: Automatic, 1000 m³/h flow, 0.75 kW motor, 230 V, 66 dB(A), 1 arm connection, 85 kg.
MATRIX-1000-2-S: Manual, 1100 m³/h flow, 0.75 kW motor, 230 V, 67 dB(A), 2 arm connections, 88 kg.
MATRIX-1000-2-A: Automatic, 1100 m³/h flow, 0.75 kW motor, 230 V, 67 dB(A), 2 arm connections, 88 kg.

Filtering efficiency is 99.5%, and flow volume is measured with clean filters.

Additional Equipment / Spare Parts
Includes a vacuum cleaner (Pitbull-1) for dust removal and a cartridge filter (PTM 085032R) with 99.5% efficiency. The vacuum cleaner weighs 4.2 kg, and the filter requires replacement every 1-2 years.

Options
MATRIX-1000 is available in manual and automatic control versions. The automatic version features an electromagnetic valve that opens automatically to supply compressed air to rotary jets.

Operational Use
The device requires connection to a compressed air installation with a pressure of at least 0.6 MPa and a 16 mm diameter hose. It operates on a 230V power supply with a 5-meter cable. For filter regeneration, dust accumulates on the filter's outer surface and is removed by rotary jets. In manual models, users must operate a ball valve and lance, while automatic models regenerate filters upon restarting the device. Accumulated dust in the 10 dm³ chamber should be periodically removed using the included vacuum cleaner.

Catalog excerpts

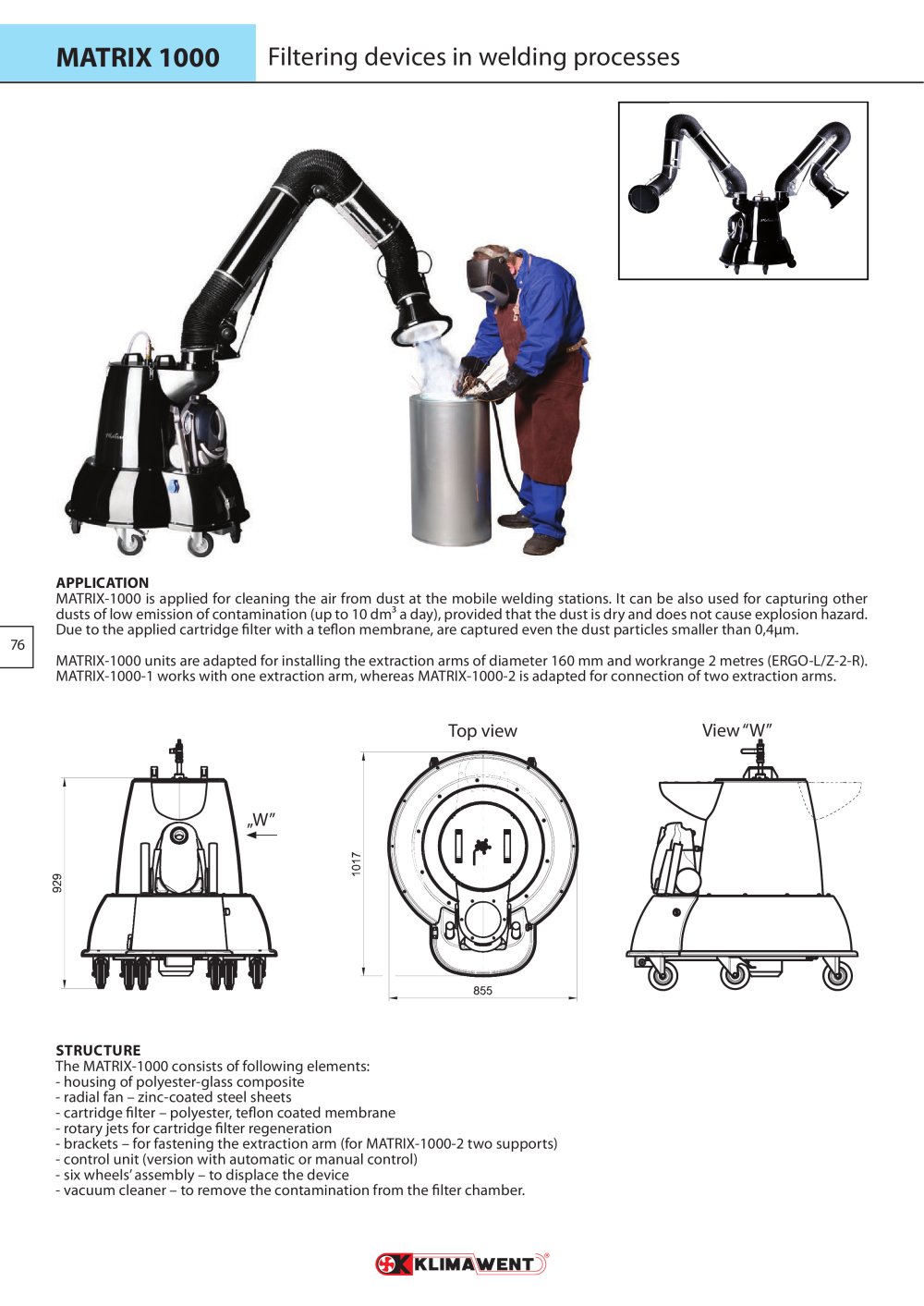

MATRIX 1000 APPLICATION MATRIX-1000 is applied for cleaning the air from dust at the mobile welding stations. It can be also used for capturing other dusts of low emission of contamination (up to 10 dm³ a day), provided that the dust is dry and does not cause explosion hazard. Due to the applied cartridge lter with a te on membrane, are captured even the dust particles smaller than 0,4ìm. MATRIX-1000 units are adapted for installing the extraction arms of diameter 160 mm and workrange 2 metres (ERGO-L/Z-2-R). MATRIX-1000-1 works with one extraction arm, whereas MATRIX-1000-2 is adapted for connection of two extraction arms. „W” View “W” STRUCTURE The MATRIX-1000 consists of following elements: - housing of polyester-glass composite - radial fan – zinc-coated steel sheets - cartridge lter – polyester, te on coated membrane - rotary jets for cartridge lter regeneration - brackets – for fastening the extraction arm (for MATRIX-1000-2 two supports) - control unit (version with automatic or manual control) - six wheels’ assembly – to displace the device - vacuum cleaner – to remove the contamination from the lter chamber. Top view Filtering devices in welding processes

Open the catalog to page 1

TECHNICAL DATA Device type Part.No Filter regeneration Volume ow [m³/h] Motor rate [kW] Supply voltage [V] Noise level [dB(A)] Quantity of the connections for ERGO arms Weight [kg] MATRIX-1000-1-S 800O28 Manual 1000 0,75 230 66 1 85 MATRIX-1000-1-A 800O29 Automatic 1000 0,75 230 66 1 85 MATRIX-1000-2-S 800O30 Manual 1100 0,75 230 67 2 88 MATRIX-1000-2-A 800O31 Automatic 1100 0,75 230 67 2 88 Caution: 1) Weight of the device with the extraction arms: MATRIX-1000-1 – 90 kg MATRIX-1000-2 – 110 kg 2) Filtering e ciency – 99,5% 3) Volume ow has been measured at the clean lters. ADDITIONAL EQUIPMENT...

Open the catalog to page 2
