Overview

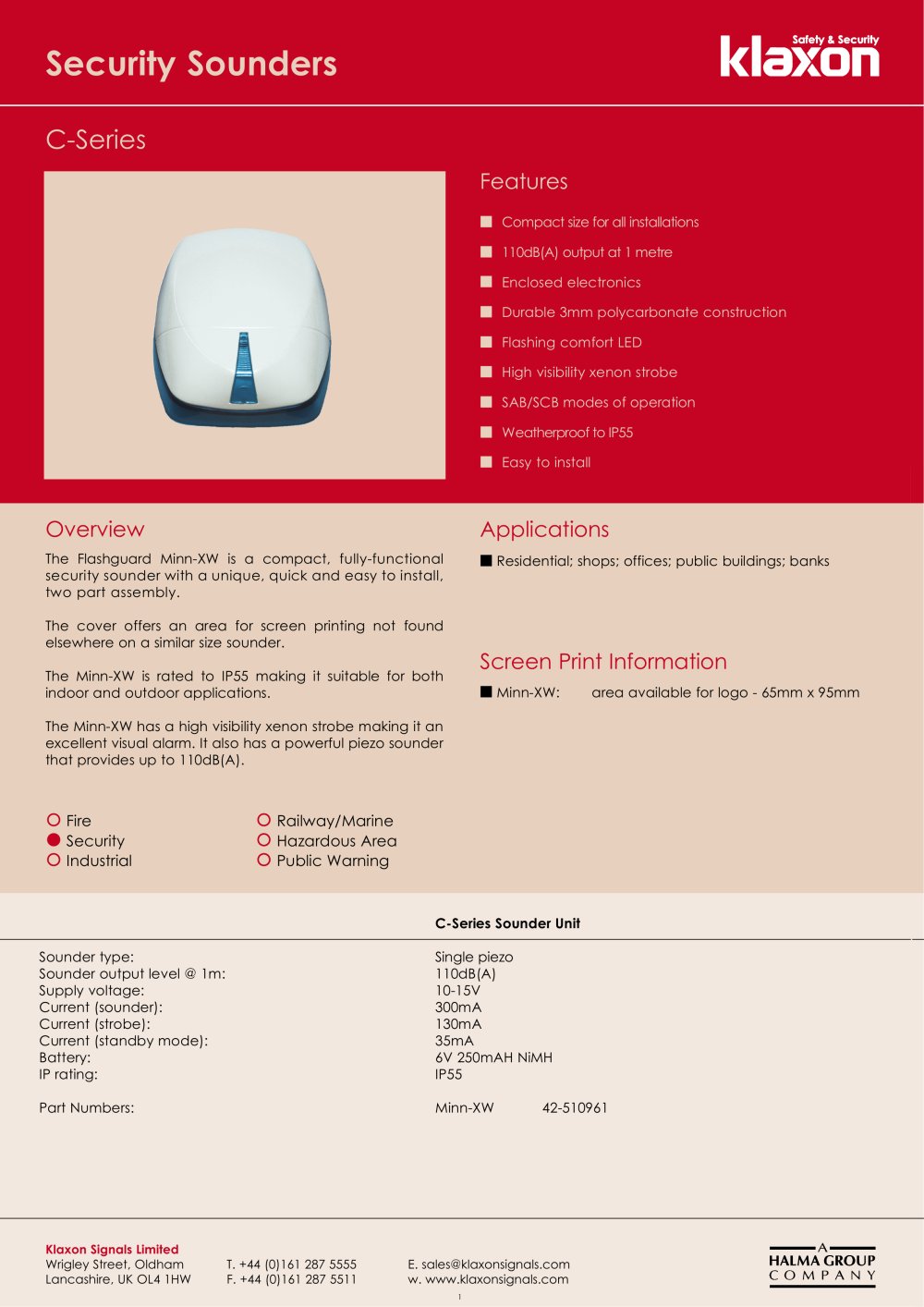

The Flashguard Minn-XW is a compact and fully-functional security sounder designed for easy installation with a two-part assembly. It features a unique cover that allows for screen printing, which is not commonly available on similar-sized sounders. Rated at IP55, it is suitable for both indoor and outdoor use. The Minn-XW includes a high visibility xenon strobe for visual alarms and a powerful piezo sounder that emits up to 110dB(A).

Features

• Compact size suitable for all installations
• 110dB(A) sound output at 1 metre
• Enclosed electronics for protection
• Durable 3mm polycarbonate construction
• Flashing comfort LED
• High visibility xenon strobe
• SAB/SCB modes of operation
• Weatherproof with IP55 rating
• Easy installation process

Applications
The Minn-XW is ideal for use in residential areas, shops, offices, public buildings, and banks. It is also applicable in sectors such as fire, security, industrial, railway/marine, hazardous areas, and public warning systems.

Technical Specifications

• Sounder type: Single piezo
• Sounder output level at 1m: 110dB(A)
• Supply voltage: 10-15V
• Current consumption: 300mA (sounder), 130mA (strobe), 35mA (standby mode)
• Battery: 6V 250mAH NiMH
• IP rating: IP55
• Part Number: Minn-XW 42-510961

Screen Print Information
The Minn-XW provides an area of 65mm x 95mm for logo screen printing.
