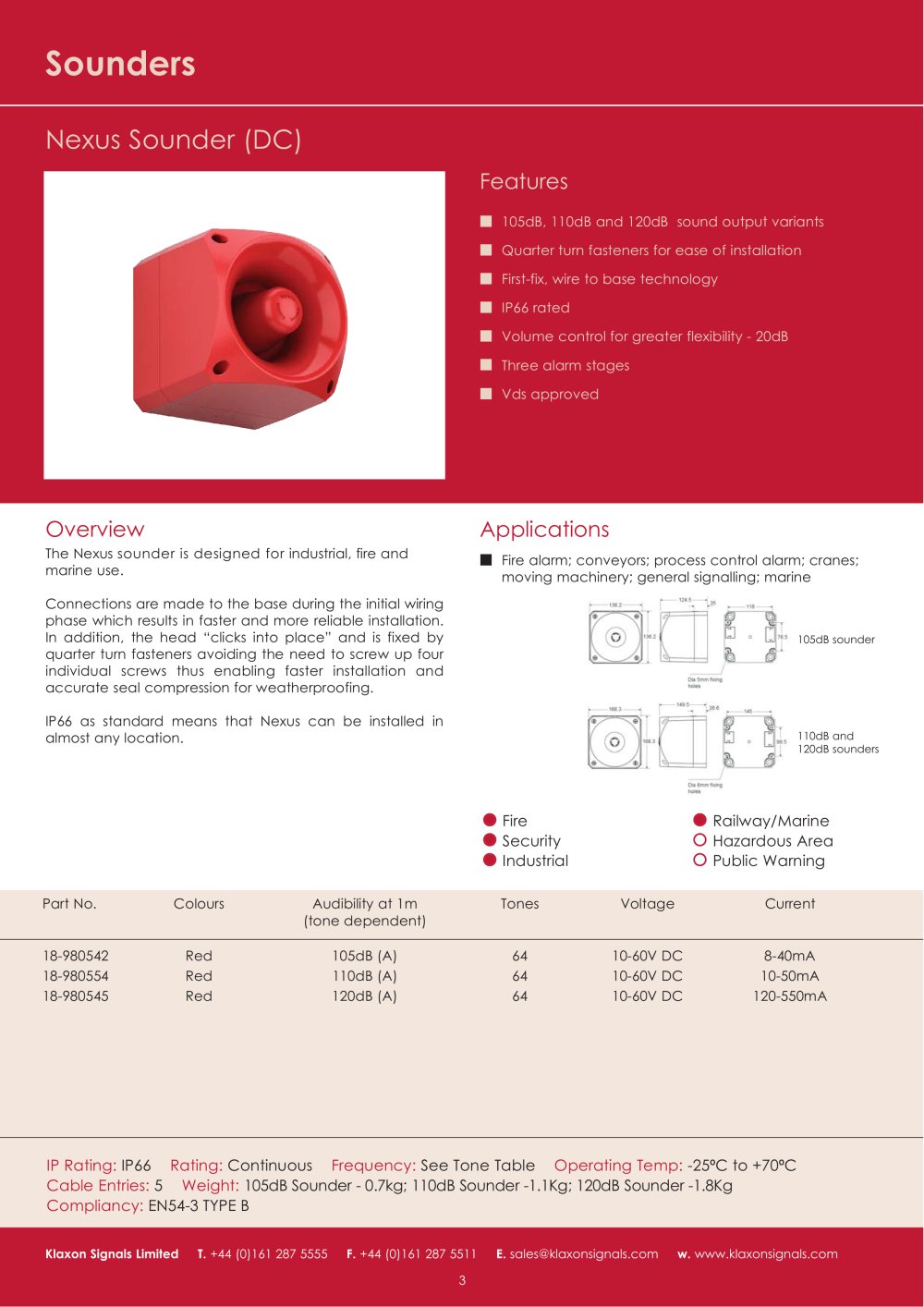

Overview
The Nexus Sounder is designed for industrial, fire, and marine applications. It features a base connection system for faster and more reliable installation, with the head secured by quarter turn fasteners. This design ensures accurate seal compression for weatherproofing, with an IP66 rating allowing installation in diverse locations.

Features

• Available in 105dB, 110dB, and 120dB sound output variants.
• Quarter turn fasteners for easy installation.
• First-fix, wire to base technology.
• IP66 rated for weatherproofing.
• Volume control with a 20dB range for flexibility.
• Three alarm stages.
• Vds approved.

Applications
The Nexus Sounder is suitable for fire alarms, conveyors, process control alarms, cranes, moving machinery, general signaling, and marine applications.

Specifications

• Part No. 18-980542: Red, 105dB (A), 64 tones, 10-60V DC, 8-40mA.
• Part No. 18-980554: Red, 110dB (A), 64 tones, 10-60V DC, 10-50mA.
• Part No. 18-980545: Red, 120dB (A), 64 tones, 10-60V DC, 120-550mA.

Technical Details

• IP Rating: IP66
• Operating Temperature: -25ºC to +70ºC
• Cable Entries: 5
• Weight: 105dB Sounder - 0.7kg; 110dB Sounder - 1.1Kg; 120dB Sounder - 1.8Kg
• Compliancy: EN54-3 TYPE B
