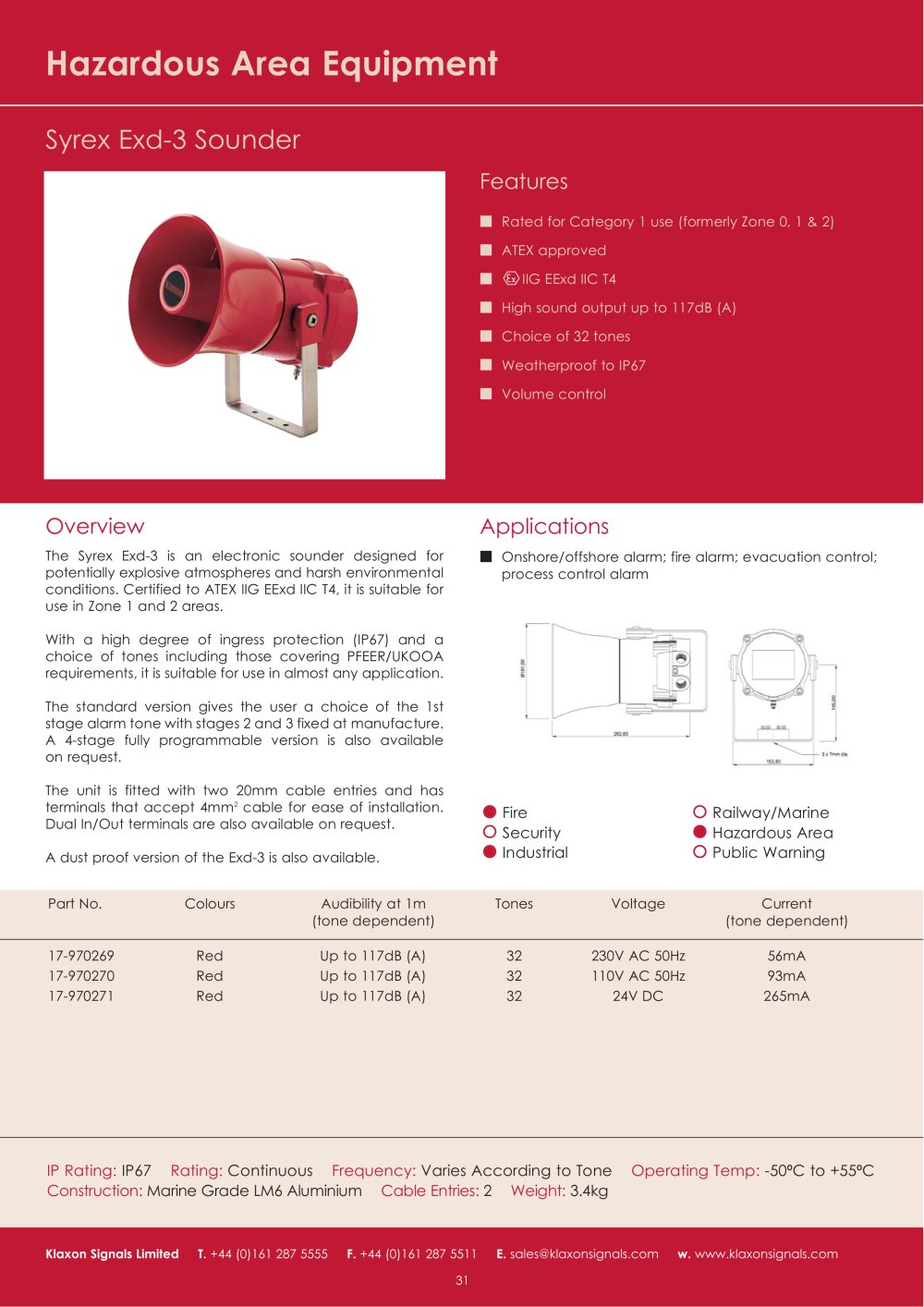

Hazardous Area Equipment Syrex Exd-3 Sounder
1 / 1 PageView full catalog
Hazardous Area Equipment Syrex Exd-3 Sounder
Product catalog summary
Overview
The Syrex Exd-3 is an electronic sounder designed for use in potentially explosive atmospheres and harsh environmental conditions. It is certified to ATEX IIG EExd IIC T4, making it suitable for Zone 1 and 2 areas. The device offers a high degree of ingress protection (IP67) and a variety of tones, including those meeting PFEER/UKOOA requirements. The standard version allows for a choice of the 1st stage alarm tone, with stages 2 and 3 fixed at manufacture. A 4-stage fully programmable version is available upon request. The unit includes two 20mm cable entries and terminals that accept 4mm2 cable for easy installation. A dust-proof version is also available.
The Syrex Exd-3 is an electronic sounder designed for use in potentially explosive atmospheres and harsh environmental conditions. It is certified to ATEX IIG EExd IIC T4, making it suitable for Zone 1 and 2 areas. The device offers a high degree of ingress protection (IP67) and a variety of tones, including those meeting PFEER/UKOOA requirements. The standard version allows for a choice of the 1st stage alarm tone, with stages 2 and 3 fixed at manufacture. A 4-stage fully programmable version is available upon request. The unit includes two 20mm cable entries and terminals that accept 4mm2 cable for easy installation. A dust-proof version is also available.
Features
- Rated for Category 1 use (formerly Zone 0, 1 & 2)
- ATEX approved
- IIG EExd IIC T4 certification
- High sound output up to 117dB (A)
- Choice of 32 tones
- Weatherproof to IP67
- Volume control
Applications
- Onshore/offshore alarm
- Fire alarm
- Evacuation control
- Process control alarm
Specifications
| Part No. | Colours | Audibility at 1m | Tones | Voltage | Current |
|---|---|---|---|---|---|
| 17-970269 | Red | Up to 117dB (A) | 32 | 230V AC 50Hz | 56mA |
| 17-970270 | Red | Up to 117dB (A) | 32 | 110V AC 50Hz | 93mA |
| 17-970271 | Red | Up to 117dB (A) | 32 | 24V DC | 265mA |
Additional Information
- IP Rating: IP67
- Rating: Continuous
- Frequency: Varies according to tone
- Operating Temperature: -50ºC to +55ºC
- Construction: Marine Grade LM6 Aluminium
- Cable Entries: 2
- Weight: 3.4kg
