Overview: This document outlines the specifications and features of various mechanical crimping and cutting tools designed for different cable end-sleeves and connections. The tools are categorized based on their crimping range, ergonomic design, and specific functionalities.

Mechanical Crimping Tools:

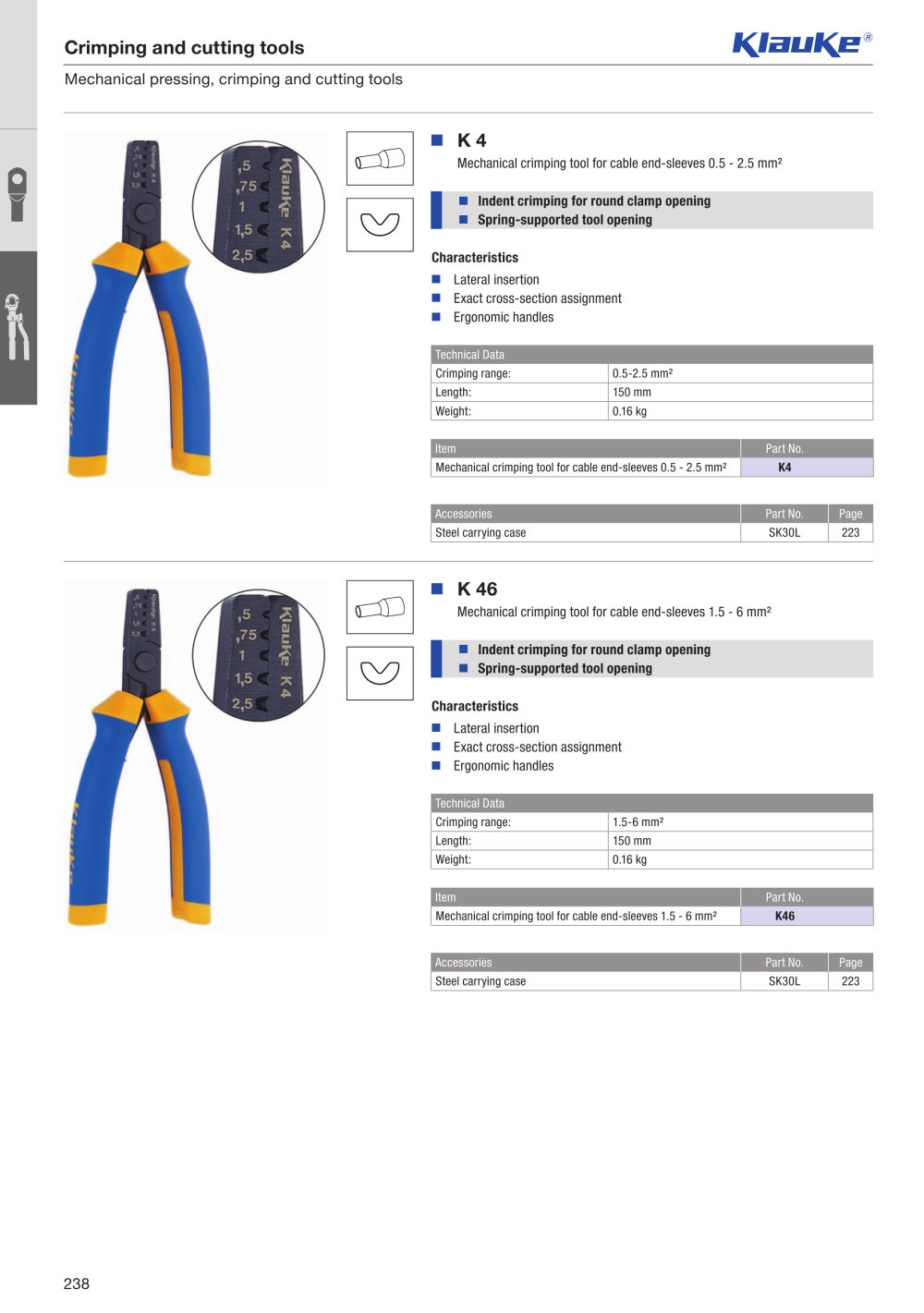

K4 and K46: Suitable for cable end-sleeves from 0.5 to 6 mm², featuring indent crimping and spring-supported tool opening with ergonomic handles.
K3 and K35: Designed for larger cross-sections up to 35 mm², including a wire cutter and ergonomic grip.
K66: Offers roll-crimping for 0.5 - 2.5 mm² cable end-sleeves, with a ratchet mechanism.
K1 and K48: Trapezoid crimping for box terminals, suitable for 0.14 - 2.5 mm², with interchangeable stripping blade.

Tools for Twin Cable End-Sleeves:

K36 and K32: Designed for twin cable end-sleeves with trapezoid crimping, ergonomic handles, and crimping ranges up to 6 mm².
K34 and K37: Suitable for larger twin cable end-sleeves, featuring ratchet and non-slip handles.

Insulated Cable Connection Tools:

K10, K14, and K15: Provide oval crimping for insulated connections, with wire stripper and cutter, and adjustable pre-tensioning.
K80 and K81: Designed for smaller insulated connections, offering double crimping and color-coded cross-section assignment.

Special Tools:

K16: For insulated solderless terminals, offering oval crimping and exact cross-section assignment.
K60: Roll-crimping tool for non-insulated tabs and receptacles, with wire stripping capabilities.

Key Features Across Tools: Most tools feature ergonomic designs, exact cross-section assignment, and compatibility with various cable end-sleeves. Accessories such as steel carrying cases are available for most models.

Specifications:

Crimping Range: Tools cover a range from 0.1 mm² to 400 mm², accommodating various conductor sizes.
Tab Widths: Available in 2.8 mm, 4.8 mm, and 6.3 mm for different applications.
Tool Length and Weight: Varies across models, with lengths ranging from 210 mm to 975 mm and weights from 0.2 kg to 4.7 kg.

Key Features:

Crimping Mechanisms: Includes roll-crimping, indent crimping, and hexagonal crimping for different types of connectors.
Additional Functions: Some tools offer wire stripping and cutting capabilities.
Design Characteristics: Many tools feature ratchets for ease of use, spring-supported openings, and adjustable pre-tensioning for precision.

Tool Variants:

Non-Insulated Tabs and Receptacles: Tools like K60, K572, and K582 are designed for specific tab widths and crimping ranges.
Tubular Cable Lugs and Connectors: Models such as K93, K94, and K95 cater to solid conductors with hexagonal crimping.
Specialized Tools: Tools like K05D and K08D are designed for compression cable lugs according to DIN standards.

Accessories: Steel carrying cases are available for most tools, ensuring safe storage and transport.

Conclusion: The document provides comprehensive information on a wide range of mechanical crimping tools, highlighting their technical specifications, unique features, and suitable applications. These tools are essential for precise and efficient crimping in various electrical and mechanical tasks.

Overview: This document provides technical specifications and details for mechanical crimping tools designed for compression and tubular cable lugs and connectors. The tools are compliant with DIN 46235 and DIN 46267 standards.

Specifications:

Crimping Range: Two ranges are specified: 10-120 mm² and 25-150 mm².
Length: 650 mm for all models.
Weight: 2.9 kg for all models.

Features:

Equipped with revolving dies for precise cross-section assignment.
Energy-efficient drive mechanism.
Hexagonal crimping capability for larger cross-section ranges up to 150 mm².

Product Variants:

K06D: Mechanical crimping tool for compression cable lugs and connectors (10-120 mm²).
K06DSP: Mechanical crimping tool with ratchet for compression cable lugs and connectors (10-120 mm²).
K09: Mechanical crimping tool for tubular cable lugs and connectors (25-150 mm²).
K09SP: Mechanical crimping tool with ratchet for tubular cable lugs and connectors (25-150 mm²).
K09D: Mechanical crimping tool for compression cable lugs and connectors (25-150 mm²).
K09DSP: Mechanical crimping tool with ratchet for compression cable lugs and connectors (25-150 mm²).

Accessories:

Steel Carrying Case: Part No. SK120L, Page 228.
