Punching Tools Overview

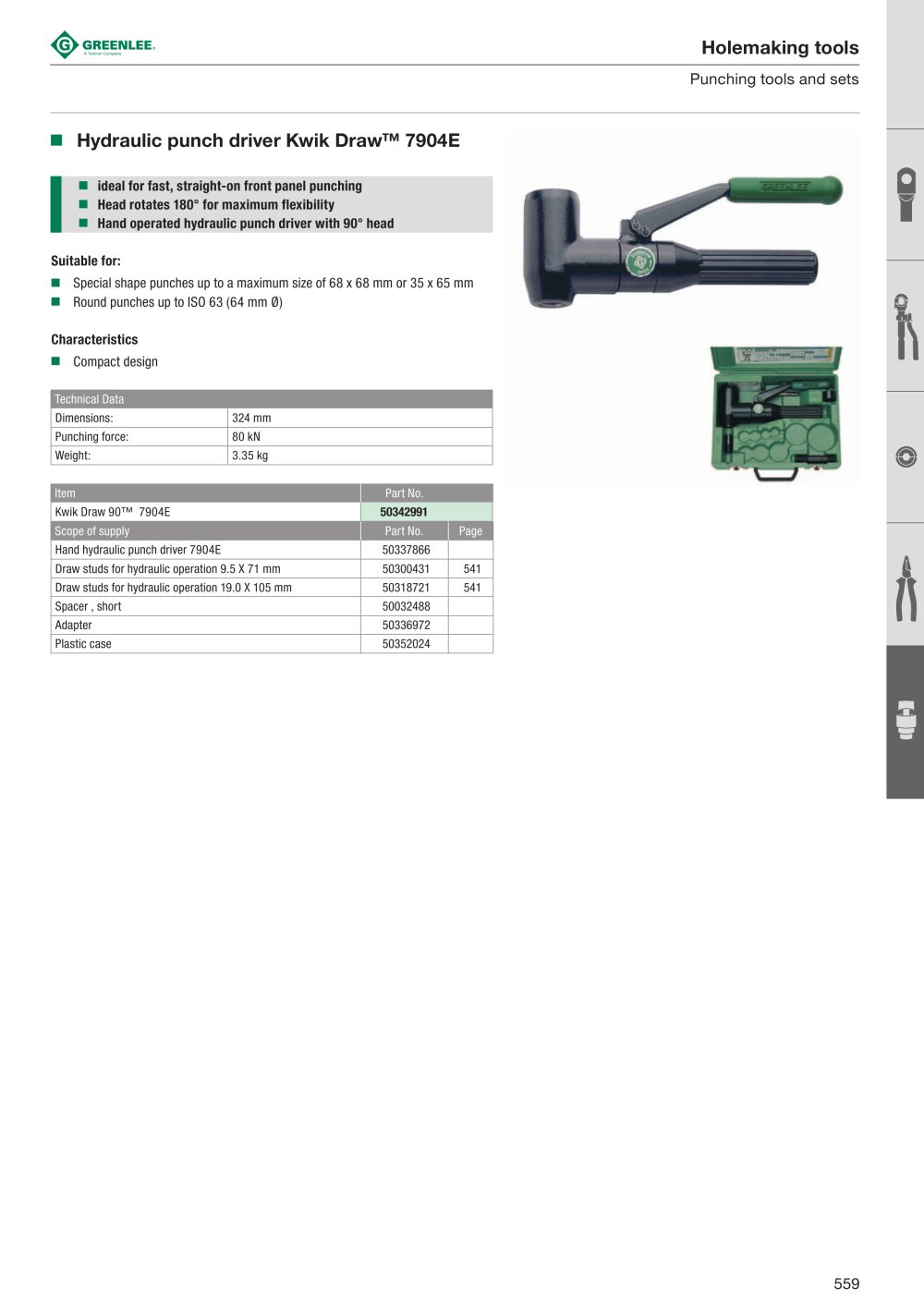

1. Hydraulic Punch Driver Kwik Draw™ 7904E
This tool is designed for fast, straight-on front panel punching with a 180° rotating head for flexibility. It is suitable for special shape punches up to 68 x 68 mm or 35 x 65 mm, and round punches up to ISO 63 (64 mm Ø). The compact design features a punching force of 80 kN and weighs 3.35 kg.

2. Battery Powered Punch Driver LS 60 PLUS
An electro-hydraulic punch driver with microprocessor control, featuring automatic stop and retraction. It is suitable for punches up to 104.8 x 104.8 mm in mild steel and 2.0 mm thick. The tool has a punching force of 60 kN, weighs 3.9 kg, and can perform up to 250 punches per battery charge.

3. Hydraulic Punch Driver with Handpump
This tool includes a handpump, hose, and cylinder, suitable for all punches up to 143.7 mm round and 138 x 138 mm square. It operates hydraulically with a punching force of 110 kN and weighs 8.3 kg.

4. Hydraulic Punch Drivers with Footpump
Similar to the handpump version, this tool uses a footpump and is suitable for the same punch sizes. It also operates hydraulically with a punching force of 110 kN and weighs 15.2 kg.

5. Portable C-frame Punch Driver
Designed for fast, one-shot punching without predrilling, this tool has a punching capacity for 3 mm mild steel and a range of 15.2 to 34.6 mm. It is recommended to use with a hydraulic footpump or handpump.

6. Hydraulic Punching Head LSK 120
This compact tool is suitable for punching aluminum and copper up to 10 mm thick, with a hole diameter range of 6.5 - 17 mm. It operates at a maximum pressure of 700 bar and a compressive force of 160 kN, weighing approximately 9.5 kg.
