Klauke
Digital multimeter

Digital multimeter

Product catalog summary

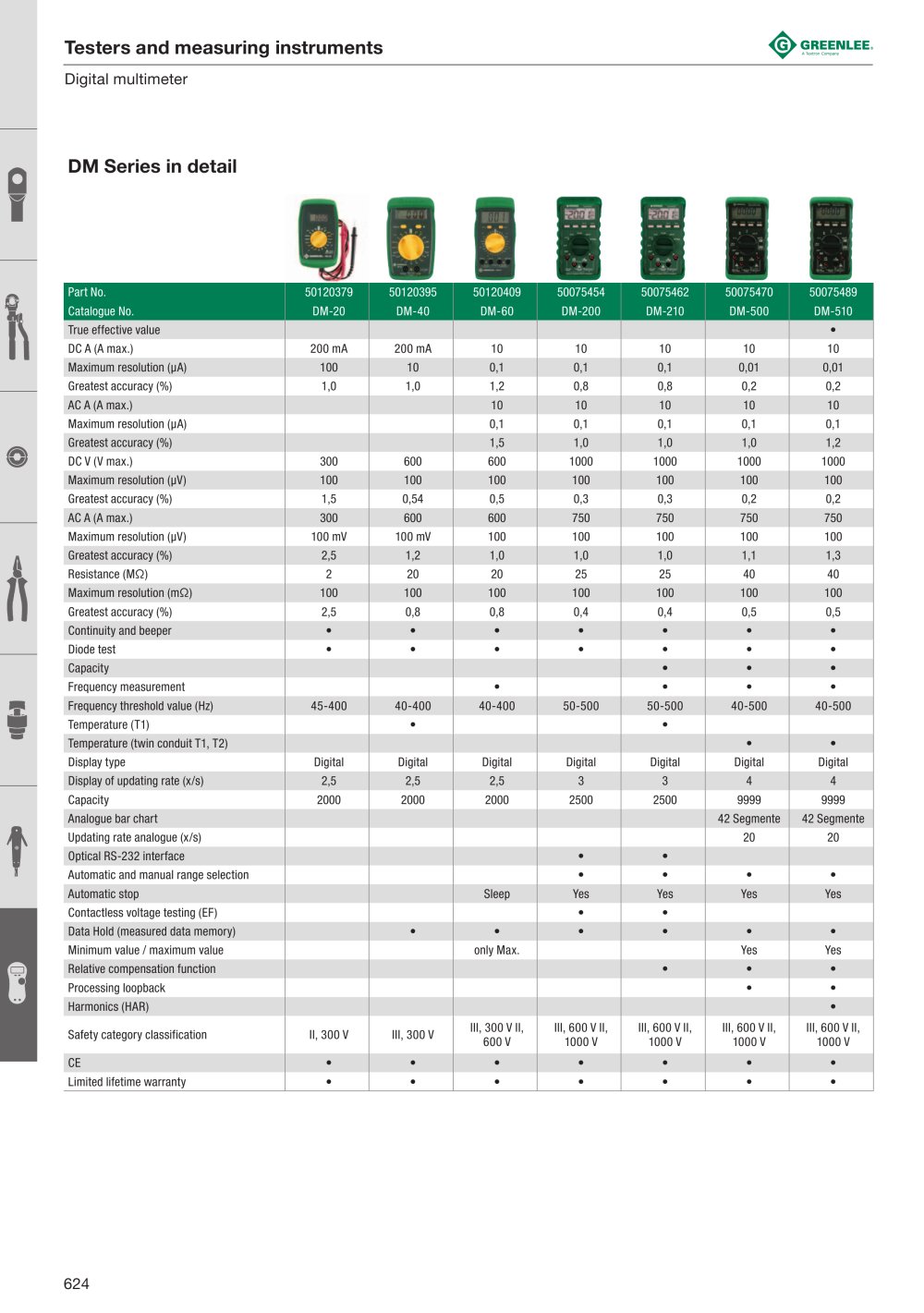

Overview: This document outlines the specifications and features of the DM Series digital multimeters, including models DM-20, DM-40, DM-60, DM-200, DM-210, DM-500, DM-510, DM-800, DM-810, DM-820, and DM-860, as well as GT-220 and GT-540 electrical testing equipment. It also covers related accessories and technical data.

Specifications:

Voltage Measurement: Ranges from 50.00 mV to 1000 V, depending on the model.
Current Measurement: Ranges from 500.0 µA to 10.00 A.
Resistance Measurement: Up to 50.00 MΩ.
Capacity Measurement: Up to 9999 µF.
Temperature Measurement: K-type, -50 °C to 1000 °C.
Frequency Measurement: Up to 2 MHz for square wave logic level.
Safety Category: Ranges from CAT II to CAT IV, depending on the model and voltage capacity.

Features:

All models include diode tests, continuity checks, and data hold functions.
Automatic and manual range selection is available in most models.
True RMS measurement for accurate readings, available in models like DM-510 and DM-810.
Advanced features such as Min/Max function, relative value mode, and peak value recording in select models.
RS-232 interface for PC connectivity and backlit display for easy reading.

Models:

DM-20 to DM-510: Varying capabilities from basic measurements to advanced features like harmonics analysis.
DM-800 to DM-860: Range from basic to industrial models with extended frequency range and enhanced display.
GT-220 and GT-540: Electrical testing equipment with automatic measurement and contactless voltage check.

Accessories:

Each multimeter comes with test leads, a battery, and a protective covering.
Optional accessories include nylon carry bags and interface kits for data downloading (DMSC-2, DMSC-8L, DMSC-9).

Additional Information: The document provides part numbers for ordering and compatibility details for accessories, emphasizing safety and precision in measurement tasks.
