Product catalog summary

Overview: The document outlines the specifications and features of various clamp meters, including the CMT-80 automatic tester and the CM series clamp meters. These devices are designed for measuring current, voltage, resistance, and frequency, featuring data hold, automatic shut-off, and backlit displays for usability in diverse conditions.

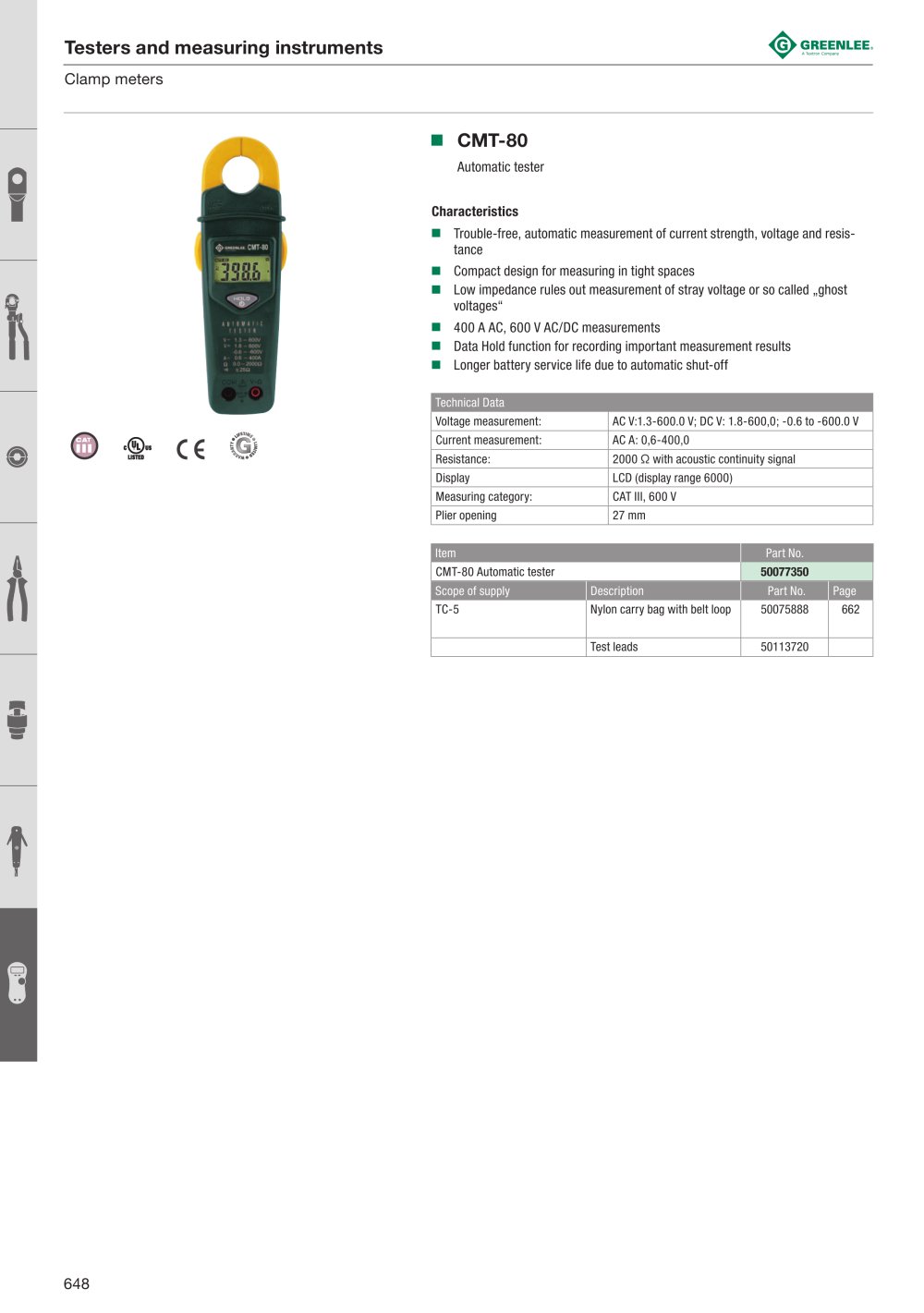

CMT-80 Automatic Tester:

Automatically measures current, voltage, and resistance.
Compact design for use in tight spaces.
Low impedance to prevent stray voltage readings.
Measurement capabilities include 400 A AC and 600 V AC/DC.
Features data hold and automatic shut-off for battery conservation.
Technical Data: Voltage (AC: 1.3-600.0 V, DC: 1.8-600.0 V), Current (AC: 0.6-400.0 A), Resistance (2000 Ω).

CM Series Clamp Meters:

Models include CM-330, CM-410, CM-600, CM-800, CM-850, CM-900, CM-950, CM-1300, CM-1350, CM-1500, CM-1550, and CSJ-100.
Features vary by model, measuring AC/DC current and voltage, resistance, frequency, and continuity.
True RMS models available for accurate measurements with harmonic oscillations.
Common features: Data Hold, Peak Hold, MIN/MAX functions, backlit displays, and automatic shut-off.
Technical Data varies by model, with maximum current measurements from 400 A to 1000 A, and voltage up to 1000 V DC.
Measuring categories: CAT III, 600 V; some models extend to CAT III, 750 V AC/1000 V DC.

Key Features Across Models:

Compact, ergonomic designs for confined spaces.
Automatic range selection and low battery indicators.
Analogue bar charts for monitoring fast changes.
Limited lifetime warranty and CE certification for all models.

Specifications:

Test leads can be attached to the housing.
Resistance measurement up to 20 MOhm.
Includes acoustic continuity and diode tests.
Alarm and LED for contactless voltage detection.
Automatic shut-off for extended service life.
Data Hold function for recording values.
LCD display with a range of 2000.

Technical Data:

Voltage measurement: 200.0, 1000 V.
Current measurement: 200 A AC.
Resistance: 20MΩ.
Display: LCD with a range of 2000.
Measuring category: CAT IV, 600 V and CAT III, 1000 V.
Plier opening: 16 mm.

Order Information:

CSJ-100 jaw meter, open - Part No. 52020887.
TC-5 Nylon carry bag with belt loop - Part No. 50075888.

Scope of Supply:

Includes test leads and 1.5 V batteries.
TC-5 Nylon carry bag suitable for models CMT-80, CM-330, CM-410, CSJ-100.

Additional Accessories:

TC-10 Nylon carry bag suitable for models CM-600, CM-800, CM-850, CM-900, CM-950 - Part No. 50075349.
TC-30 Nylon carry bag suitable for models CM-1300, CM-1350, CM-1500, CM-1550 - Part No. 50075365.
Voltage tester models GT-55E, GT-65E, GT-85E, GT-95E.
