RGD-KVM-1701HD-450
RGD-KVM-1701HD-450
- Integrated 17.3" LED display, keyboard, and mouse in a single unit.
- Adjustable LED LCD display with a self-locking guide rail.
- Retractable installation design with adjustable length to fit rack space.
- Compatible with various industrial computer brands and servers, including IBM, DELL, HP, SUN, Lenovo, Advantech, and EVOC.
- Computer Connection: Supports connection to 1 computer.
- Port Connectors: USB, VGA, DVI, HDMI.
- Control Port Type: USB, VGA, DVI, HDMI.
- Hot Keys: Scroll-Lock, Caps-Lock, Num-Lock, KVM OSD.
- LCD: 17.3" TFT LED, Resolution: 1920x1080 @60Hz, Max Color: 16.7M, Brightness: 300 nits, Contrast Ratio: 700:1, Pixel Pitch: 0.297 x 0.297 mm.
- Keyboard/Mouse: 104 keys keyboard with touchpad.
- Power Input: Dual power supply support: AC 100-240V~50/60Hz or power adapter: 12V 3.33A. Default AC built-in power supply is shipped.
- Operating System: Compatible with Microsoft Windows Server (latest), Linux, Unix, etc.
- Material: ROHS compliant.
- Cabinet Color: High-temperature spray black.
- Dimensions: 450.0mm x 465.0mm x 44.0mm (L x W x H).
- Withdraw Distance: 45mm.
- Opening Height: 325mm.
- Weight: Gross weight 13.75 kg.
- Working Temperature: 0℃ to +60℃.
- Storage Temperature: -20℃ to +70℃.
- Humidity: 5% to 95% non-condensing.
Catalog excerpts

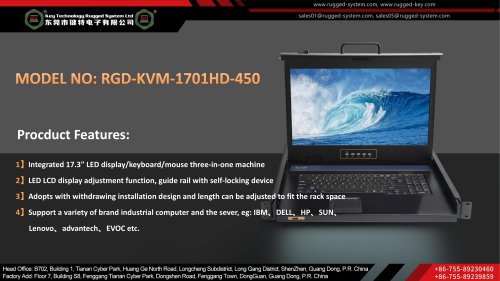

■ Key Technology Rugged System Ltd www.rugged-system.com,www.rugged-key.com salesOI @rugged-system.com, [email protected] MODEL NO: RGD-KVM-1701HD-450 Procduct Features: 1] Integrated 17.3" LED display/keyboard/mouse three-in-one machine 2] LED LCD display adjustment function, guide rail with self-locking device -/ -/ ■; 3] Adopts with withdrawing installation design and length can be adjusted to fit the rack space 4] Support a variety of brand industrial computer and the sever, eg: IBM* DELL* HP* SUN* Lenovo* advantech* EVOC etc. Head Office: B702, Building 1, Tianan Cyber Park, Huang Ge North Road, Longcheng Subdistrict, Long Gang District, ShenZhen, Guang Dong, P R. China Factory Add: Floor 7, Building S8, Fenggang Tianan Cyber Park, Dongshen Road, Fenggang Town, DongGuan, Guang Dong, P R. China
Open the catalog to page 1
' r“7 ' Key Technology Rugged System Ltd ■—■ www.rugged-system.com,www.rugged-key.com salesOI @rugged-system.com, [email protected] Computer Connect: 1 computer port Connector: USB & VGA & DVI & HDMI Control Port Type: USB & VGA & DVI & HDMI Hot Keys: Scroll-Lock / Caps-Lock /Num-Lock / KVM OSD LCD: Size: 17.3" TFT LED, Resolution: 1920*1080 @60HZ, Max Color: 16.7M, Brightness: 300nits, Contrast Ratio: 700:1, Pixel Pitch: 0.297 x 0.297 mm, Keyboard/Mouse: 104 Keys Keyboard with touchpad Power Input: Support dual power supply: AC 100-240V~50/60Hz, Or power adapter: 12V 3.33A, The default...
