Rugged Joystick Catalogue

Product catalog summary
Overview: The document outlines the specifications and features of rugged joysticks designed for harsh environments, suitable for industrial and military applications. It highlights compliance with military standards, environmental adaptability, and product reliability.
Specifications: The joysticks meet MIL-STD-461G and MIL-STD-810H standards for electromagnetic compatibility and environmental adaptability. They are tested for extreme temperatures, humidity, vibration, shock, and other environmental factors.
Product Features: Featuring a 3-axis control function, the joysticks offer options for mouse or joystick functionality. Constructed with stainless steel and aluminum alloy, they are IP65 or IP54 rated for dust and water protection.
Mechanical and Electrical Data: The joysticks have a mechanical lifespan exceeding 200,000 cycles, with specific operation strengths and torque limits for the X, Y, and Z axes. They operate within a temperature range of -40℃ to +75℃ and require a DC +5V±5% power supply.
Applications: Suitable for vehicles, aerospace, navy, maritime, radar, console, and navigation controls.
Company Profile: Key Technology China Limited, established in 2006, specializes in rugged keyboards and pointing devices, certified with ISO9001-2015 and GJB9001C-2017, focusing on quality control and customer service.
Additional Overview: The document also details the K-TEK series joysticks, known for robust construction, ergonomic design, and high reliability, suitable for various industrial applications.
Additional Specifications:
  • Operating Temperature: -40℃ to +75℃ depending on the model.
  • Supply Voltage: Typically DC +5V±5%, with some models supporting DC12-24V.
  • Protection Level: IP65 for most models, ensuring dust-tight and water-resistant capabilities.
  • MTBF: Greater than 20,000 hours.
  • MTTR: Less than 30 minutes.
  • Mechanical Lifespan: 100,000 to 1 million cycles.
  • Dimensions: Vary by model, with compact designs for space efficiency.
Additional Features:
  • K-TEK-SMC30: Offers 2-axis or 3-axis configurations with stainless steel and aluminum alloy materials, featuring a spring return mechanism and high-precision Hall-effect sensors.
  • K-TEK-H1-3AX-2K-AS: Made from industrial-grade ABS, featuring a non-contact Hall-sensor design with thumb-operated buttons for user-defined functions.
  • K-TEK-H6-2AX-AS and K-TEK-H6-3AX-2K-AS: Constructed from high-quality ABS, offering robust and lightweight designs with multi-axis signal output.
  • K-TEK-HG1-3AX-4WS-4K-AS: Features multiple switches and a trigger switch, designed for high-performance industrial applications.
Additional Applications: Suitable for vehicle control, aerospace, naval operations, maritime activities, radar systems, and various console and navigation controls.
Compliance: All models comply with CE, FCC, and ROHS standards, ensuring safety and environmental protection.
See more

Catalog excerpts

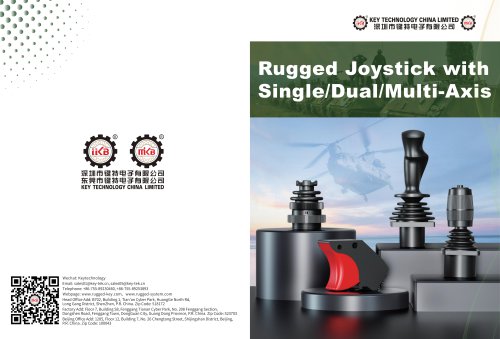

Rugged Joystick Catalogue-1

@KEY TECHNOLOGY CHINA LIMITED jlM KEY TECHNOLOGY CHINA LIMITED Wechat: Keytechnology Webpage: www.rugged-key.com,www.rugged-system.com Head Office Add: B702, Building 1, Tian'an Cyber Park, HuangGe North Rd, Long Gang District, ShenZhen, P.R. China. Zip Code: 518172 Factory Add: Floor 7, Building S8, Fenggang Tianan Cyber Park, No. 208 Fenggang Section, Dongshen Road, Fenggang Town, DongGuan City, Guang Dong Province, P.R. China. Zip Code: 523703 Beijing Office Add: 1205, Floor 12, Building 7, No. 26 Chengtong Street, Shijingshan District, Beijing, P.R. China. Zip Code: 100043

 Open the catalog to page 1
Rugged Joystick Catalogue-2

Company Profile Feature and Reliability EMC SPEC Established in 2006, Key Technology China Limited is an ISO9001-2015 and GJB9001C-2017 registered enterprise engaged in research, development, sale and service of all kinds of rugged keyboards/pointing devices for harsh environments covering industrial/military/marine/medical/ coal and mine/oil and gas/chemical industry/transportation/finance/aerospace/public access/food and beverage/vehicle etc. applications. We have excellent and experienced teams who focus on product development & design, quality control and company running, dedicated to strict...

 Open the catalog to page 2
Rugged Joystick Catalogue-3

IP65 ruggedized joystick with stainless steel plate and 2 sealed stainless steel mouse buttons (optional) for right and left clicking, the whole electronic controllers protected and shielded by stainless steel housing. The joystick provides users with a 3-axis joystick function, and can control the output of X (left and right) and Y axis (front and rear) by moving the handle in any direction by (25 ° ± 2 °); and surely control the Z axis output by rotating (40 ° ± 3 °). Mouse function or joystick function optional. With one button on the top of the joystick (2 buttons optional), it can be set...

 Open the catalog to page 3
Rugged Joystick Catalogue-4

IP65 ruggedized joystick with stainless steel plate and 2 sealed stainless steel mouse buttons (optional) for right and left clicking, the whole electronic controllers protected and shielded by stainless steel housing. The joystick provides users with a 3-axis joystick function, and can control the output of X (left and right) and Y axis (front and rear) by moving the handle in any direction by (25 ° ± 2 °); and surely control the Z axis output by rotating (40 ° ± 3 °). Mouse function or joystick function optional. With one button on the top of the joystick (2 buttons optional), it can be set...

 Open the catalog to page 4
Rugged Joystick Catalogue-5

K-TEK-GBC4-C2U2T--ZK industrial joystick is made of high-quality aviation aluminum alloy material, equipped with 2 button switches, USB 2.0, output signals through physically swing the handle, which can be operated by the thumb to achieve specific functions as per requirements through relevant switch buttons. It is suitable for industry applications that have certain requirements for product control experience and performance, as well as functionality K-TEK-GBC4-L2U3F industrial hall joystick is made of high-quality stainless steel, aluminum alloy (baked black paint) material, equipped with 1...

 Open the catalog to page 5
Rugged Joystick Catalogue-6

IP54 sealed hall joystick provides the user with a 3-axis joystick function. It can control the output of X (left and right) and Y axis (front and rear) by moving the handle in any direction by (25 ° ± 2 °); and surely control the Z axis output by rotating (40 ° ± 3 °). Mouse function optional. With 2 buttons on the top Switch (S1, S2), its’ function can be set to mouse left button and right button at the factory. USB 2.0 interface is available. IP54 hall joystick provides the user with a 3-axis joystick function. It can control the output of X (left and right) and Y axis (front and rear) by...

 Open the catalog to page 6
Rugged Joystick Catalogue-7

K-TEK-HC-5A2O is made of high-quality aluminum alloy for thumb operation, non-contact Hall sensing anti-interference design, compact and exquisite design make it suitable for installation on portable control panels to achieve physical multi signal transmission through thumb operation for self resetting or friction positioning. It has the advantages of flexible operation, long lifespan, and excellent protective performance. K-TEK-HC-5A3O is made of high-quality aluminum alloy for thumb operation, non-contact Hall sensing anti-interference design, compact and exquisite design make it suitable for...

 Open the catalog to page 7
Rugged Joystick Catalogue-8

K-TEK-HC-5U2E is made of high-quality aluminum alloy, non-contact Hall sensing wrist operation design. It has the advantages of solidity, light appearance, convenient and flexible operation, long life, and good protective performance, which can be used by physically hand swing operation to achieve physical multi-axis signal output, and the top is equipped with 2 high-quality buttons controlled by thumbs to realize customization function. K-TEK-SMC30 Hall Joystick Series provides user with 2-axis or 3-axis configurations, made by stainless steel and aluminum alloy materials, featuring a spring...

 Open the catalog to page 8
Rugged Joystick Catalogue-9

K-TEK-H1-3AX-2K-AS Joystick is injection-molded from high-quality industrial-grade ABS material. It adopts a non- contact Hall-sensor wrist-operated design. Featuring robust construction, lightweight appearance and convenient & flexible manipulation, it delivers advantages such as long service life and excellent protection performance. Physical multi-axis signal output is realized via hand-grip operation. Two high-quality thumb-operated buttons are arranged on the top for user-defined functions. Multiple communication output variants are available. Analog output. K-TEK-H6-2AX-AS Joystick is injection-molded...

 Open the catalog to page 9
Rugged Joystick Catalogue-10

K-TEK-H6-3AX-2K-AS Joystick is injection-molded with high-quality industrial-grade ABS. It adopts a non-contact Hall-sensor wrist-operated design, featuring with robust construction, lightweight appearance, convenient and flexible manipulation, long service life and excellent protection performance. Multi-axis physical signal output is achieved by hand -grip operation. Multiple communication output versions are available. Analog output. K-TEK-HG1-3AX-4WS-4K-AS industrial joystick is crafted from high-quality ABS material and features 3 self-resetting switches, 1 four-way switch, and a trigger...

 Open the catalog to page 10
