Removable Optical Trackball K-TEK-38-MTB-AVR Datasheet

Removable Optical Trackball K-TEK-38-MTB-AVR Datasheet

Product catalog summary

Product Overview: The K-TEK-38-MTB-AVR is a rugged, anti-vibration trackball module designed for demanding environments. It features a 38.0mm black resin mechanical trackball with a resolution of 400 DPI, ensuring fast and accurate cursor positioning. The module operates smoothly and quietly, with an optional stainless steel ball that can be removed for cleaning. It includes optional external left and right mouse buttons and is designed for panel mounting.

Specifications: The module meets MIL-STD-810H standards, covering a wide range of environmental and operational conditions such as temperature extremes, humidity, vibration, and more. It also optionally complies with MIL-STD-461G for EMC, EMI, EMS, and ESD. The dimensions are 60.6mm x 60.6mm, and it weighs 0.3 kg.

Mechanical Data: The trackball has a diameter of 38.0mm and a lifespan of 2 million scrolls.

Electrical Data: The module operates on a DC supply voltage of +5V±5% with a current rating of less than 30mA. It supports interfaces such as USB and PS2 and is compatible with various operating systems including Windows, Linux, Unix, Mac OSX, Vxworks, and Android.

Environmental Adaptability: The module can operate in temperatures ranging from -40℃ to +60℃ and can be stored between -45℃ and +70℃. It withstands relative humidity from 3% to 95% and atmospheric pressures from 60-106Kpa. It has been tested for saline mist, damp heat, and dry heat according to IEC 60512-6 standards.

Reliability: The product is certified with CE, FCC, and RoHS. It has an IP65 protection level, an MTBF of over 20,000 hours, and an MTTR of less than 30 minutes.

Applications: This trackball module is suitable for use in vehicles, aerospace, naval, defense, maritime, radar systems, consoles, portable rugged laptops, and UAV ground stations.

Catalog excerpts

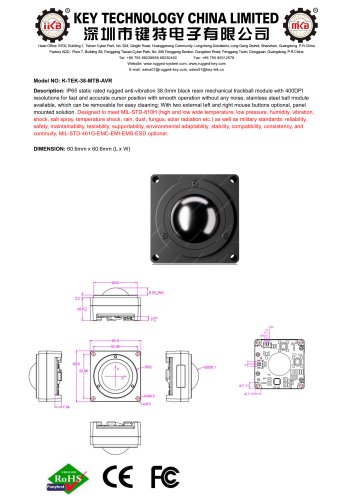

Removable Optical Trackball K-TEK-38-MTB-AVR Datasheet-1

KEY TECHNOLOGY CHINA LIMITED Head Office: B702, Building 1, Tianan Cyber Park, No. 524, Qinglin Road, Huanggekeng Community, Longcheng Subdistrict, Long Gang District, Shenzhen, Guangdong, P.R.China Factory ADD.: Floor 7, Building S8, Fenggang Tianan Cyber Park, No. 208 Fenggang Section, Dongshen Road, Fenggang Town, Dongguan, Guangdong, P.R.China Website: www.rugged-system.com,www.rugged-key.com E-mail: [email protected], [email protected] Description: IP65 static rated rugged anti-vibration 38.0mm black resin mechanical trackball module with 400DPI resolutions for fast and accurate cursor position with smooth operation without any noise, stainless steel ball module available, which can be removable for easy cleaning; With two external left and right mouse buttons optional, panel mounted solution. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity, MIL-STD-461G-EMC-EMI-EMS-ESD optional.

Open the catalog to page 1

Removable Optical Trackball K-TEK-38-MTB-AVR Datasheet-2

Open the catalog to page 2
