Cartridge Shuttle Valves

Product catalog summary
Introduction
Kepner Products Company, established in 1948, specializes in innovative zero leakage control valves for liquid and gas applications. Customers are advised to consult the factory or distributor for assistance in selecting suitable products and ensuring proper installation, operation, and maintenance.

Product Overview: Cartridge Insert Shuttle Valves
The cartridge shuttle valve allows flow from either of two inlet ports to a common outlet. It features a free-floating metal ball that shuttles based on the relative pressure at the inlets, ensuring the higher pressure inlet flows through the valve. The valve's design includes a Flexible Seal Seat for bubble-tight shutoff and long service life. It can also flow in reverse and relieve system pressure when input is removed.

Features and Benefits
  • Flexible Seal Seat for zero leak (bubble-tight) seal at closed port.
  • No threaded connections to avoid potential leakage.
  • Non-biased free-floating shuttle ball with a short travel path.
  • Minimal pressure differential shifting.
  • O-Ring positively secured.
  • Compact and easy installation with available accessory holding device kits.

Valve Specifications
  • Sizes: 1/16 inch to 3/4 inch nominal sizes (1.6 mm to 19 mm).
  • Body Materials: Brass, Steel, 303 Stainless Steel.
  • O-Ring Seals: Available in Buna-N, Neoprene, Teflon®, Viton®, EP, and others.
  • Temperature Range: -300°F to 450°F (-184°C to 232°C), dependent on O-Ring material.
  • Operating Pressure: Up to 3000 PSI (207 bar).
  • Flow Capacity: Up to 60 GPM (227 LPM).
See more

Catalog excerpts

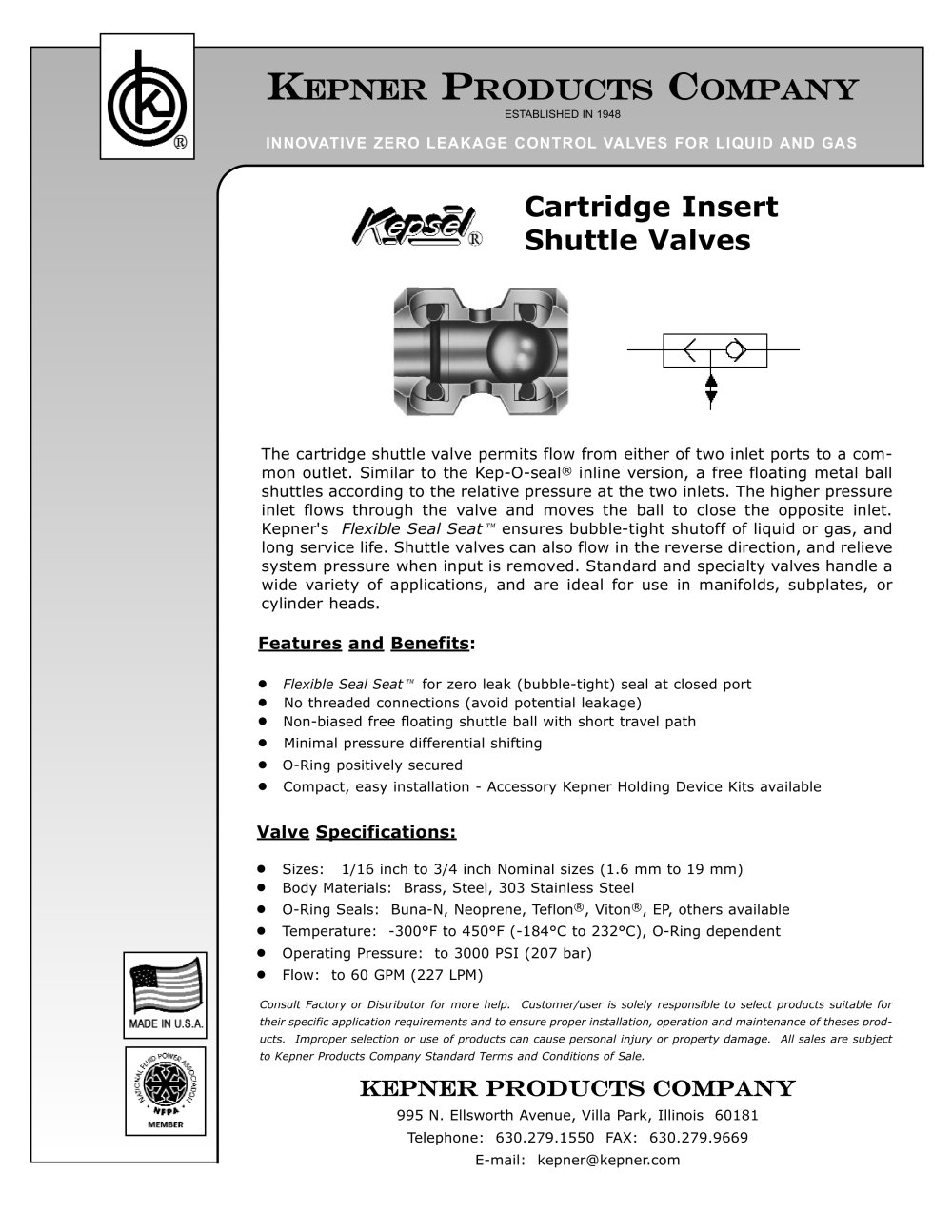

Cartridge Shuttle Valves-1

INNOVATIVE ZERO LEAKAGE CONTROLVALVES FOR LIQUID AND GAS > The cartridge shuttle valve permits flow from either of two inlet ports to a com-mon outlet. Similar to the Kep-O-seal Flexible Seal Seat > inline version, a free floating metal ballshuttles according to the relative pressure at the two inlets. The higher pressure inlet flows through the valve and moves the ball to close the opposite inlet. Kepner's ensures bubble-tight shutoff of liquid or gas, andlong service life. Shuttle valves can also flow in the reverse direction, and relieve system pressure when input is removed. Standard and specialty valves handle a wide variety of applications, and are ideal for use in manifolds, subplates, or cylinder heads. > ΢׏ > Flexible Seal Seat for zero leak (bubble-tight) seal at closed port ● > No threaded connections (avoid potential leakage) ● > Non-biased free floating shuttle ball with short travel path ● > Minimal pressure differential shifting ● > O-Ring positively secured ● > Compact, easy installation - Accessory Kepner Holding Device Kits available ● > Sizes: 1/16 inch to 3/4 inch Nominal sizes (1.6 mm to 19 mm) ● > Body Materials: Brass, Steel, 303 Stainless Steel ● > O-Ring Seals: Buna-N, Neoprene, Teflon , Viton ή , EP, others available ● > Temperature: -300F to 450аF (-184C to 232аC), O-Ring dependent ● > Operating Pressure: to 3000 PSI (207 bar) ● > Flow: to 60 GPM (227 LPM) Consult Factory or Distributor for more help. Customer/user is solely responsible to select products suitable fortheir specific application requirements and to ensure proper installation, operation and maintenance of theses prod- ucts. Improper selection or use of products can cause personal injury or property damage. All sales are subject to Kepner Products Company Standard Terms and Conditions of Sale. 995 N. Ellsworth Avenue, Villa Park, Illinois 60181Telephone: 630.279.1550 FAX: 630.279.9669E-mail: [email protected] size="-1">

 Open the catalog to page 1
