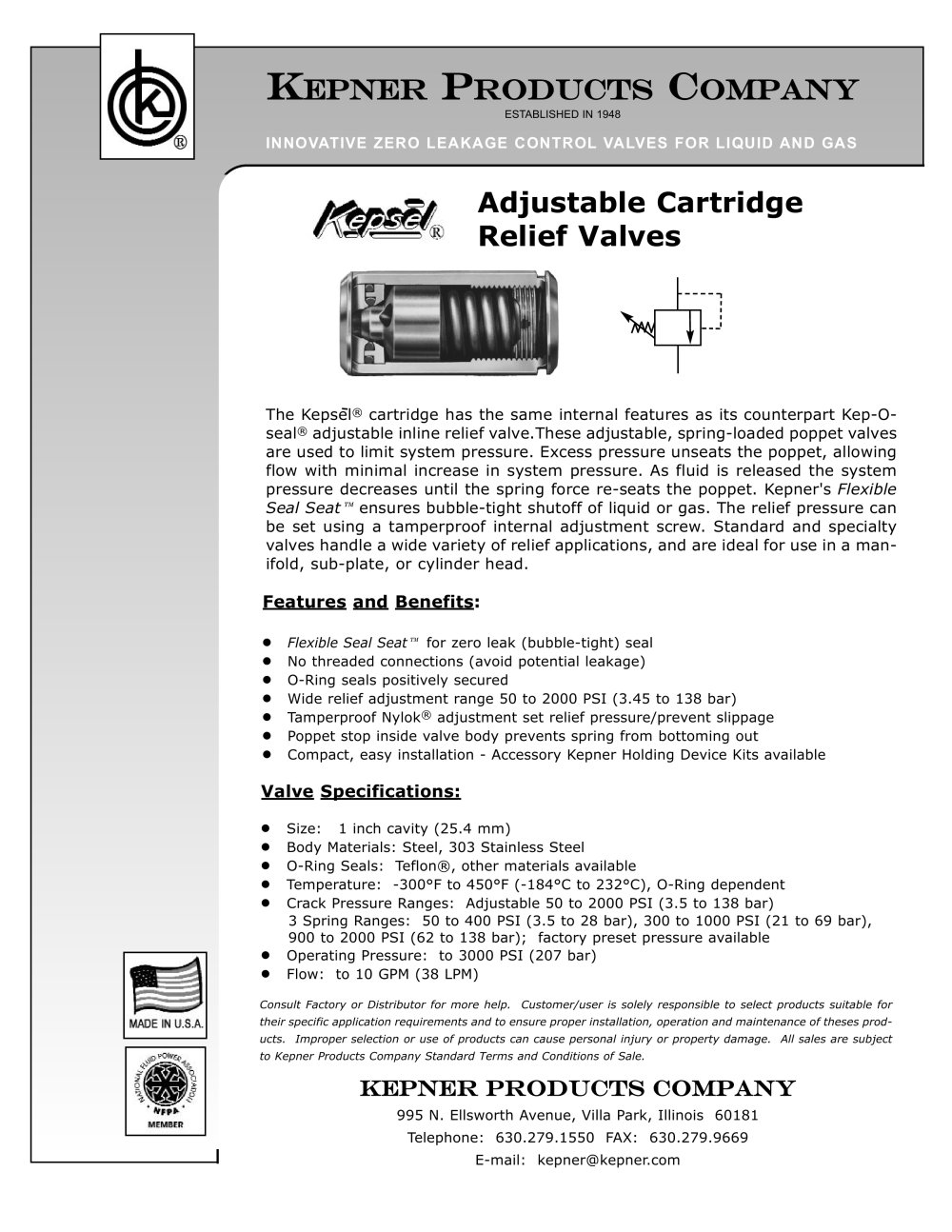

Adjustable Cartridge Relief Valves

Product catalog summary
Company Overview: Kepner Products Company, established in 1948, specializes in innovative zero leakage control valves for liquid and gas applications. Customers are advised to consult the factory or distributor for product selection and are responsible for proper installation and maintenance.
Product Description: The Kepsel® Adjustable Cartridge Relief Valves are designed to limit system pressure using adjustable, spring-loaded poppet valves. These valves ensure a bubble-tight shutoff for both liquid and gas, with relief pressure set via a tamperproof internal adjustment screw.
Features and Benefits:
  • Flexible Seal Seat for zero leak (bubble-tight) seal.
  • No threaded connections to prevent potential leakage.
  • Secure O-Ring seals.
  • Wide relief adjustment range from 50 to 2000 PSI (3.45 to 138 bar).
  • Tamperproof Nylok® adjustment to set relief pressure and prevent slippage.
  • Poppet stop inside valve body to prevent spring bottoming out.
  • Compact and easy installation with available accessory holding device kits.
Valve Specifications:
  • Size: 1 inch cavity (25.4 mm).
  • Body Materials: Steel, 303 Stainless Steel.
  • O-Ring Seals: Teflon®, with other materials available.
  • Temperature Range: -300°F to 450°F (-184°C to 232°C), dependent on O-Ring material.
  • Crack Pressure Ranges: Adjustable from 50 to 2000 PSI (3.5 to 138 bar) with three spring ranges: 50 to 400 PSI (3.5 to 28 bar), 300 to 1000 PSI (21 to 69 bar), 900 to 2000 PSI (62 to 138 bar); factory preset pressure available.
  • Operating Pressure: Up to 3000 PSI (207 bar).
  • Flow Capacity: Up to 10 GPM (38 LPM).
