Introduction

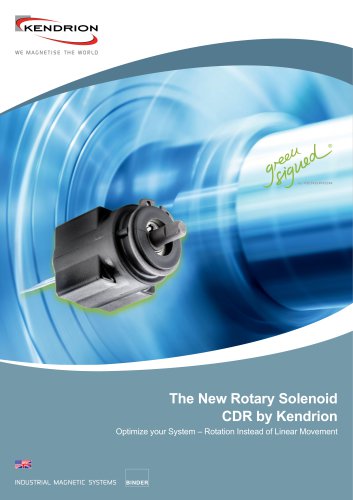

The document introduces the new Rotary Solenoid CDR by Kendrion, emphasizing its compact design and efficient performance. It is designed to optimize systems by replacing linear movement with rotational movement.

Specifications
The CDR solenoid features a compact design, short switching times (10 to 30 milliseconds), and a rotation angle of up to 90°. It is customizable in size, functions, and technical parameters to meet specific requirements. The solenoid is energetically optimized, saving up to 80% of energy due to its bistable design, which requires current only during switching.

Design and Efficiency
The solenoid is part of Kendrion's "green signed" series, highlighting its environmentally friendly design. Key advantages include a simple and cost-efficient design, high energy efficiency, low wear due to ball bearings, and optional integration of Hall sensors for enhanced functionality.

Applications
The CDR solenoid is suitable for various applications, offering benefits such as fewer components, end position detection, and increased process reliability. It is ideal for applications requiring a rotation angle of up to 90° and a supply voltage of 24 V DC.

Technical Data
The preferred model, CDR 030, is bistable with a duty cycle of 15%, power of 30 W, and torque ranging from 1.2 to 3.5 Ncm. It has a protection class of IP30 and operates in temperatures from -10 to +40°C. Optional features include Hall sensors and customization options for voltage, duty cycle, protection class, and rotation angle.

Customization Options
The modular design allows for fast adaptation to specific requirements, with options for different voltages, duty cycles up to 100%, higher protection classes, and rotation angles between 20 and 150°.

Conclusion
The CDR rotary solenoid by Kendrion offers a versatile and efficient solution for applications requiring rotational movement, with significant energy savings and customization options to meet diverse needs.
