Gasketed Plate Heat Exchanger NX PLATE TECHNOLOGY

Product catalog summary

Introduction
The document discusses the NX series of gasketed plate heat exchangers, designed to meet the increasing demand for cold supply in data centers, high-rise buildings, and district cooling. The NX350M model, with a connection diameter of DN350, is highlighted for its ability to handle high volume flow applications.

Key Features

Maximum uptime and hardware life
Outstanding energy efficiency
High pressure resistance
Maximum heat transfer rates
Capability to handle extremely small temperature differences
Optimized media distribution

Design and Function
The NX plate series features a narrow plate gap, enhancing its performance for demanding applications. The series is designed to be flexible, allowing different N series plates to be used within the same frame.

Gasket and Assembly Systems

ECOLOC Gasket System: Ensures easy installation and maintenance with self-seating gaskets that do not require tools or adhesives.
POSLOC Assembly: Provides self-aligning plates that ensure a tight seal, reducing maintenance stress and preventing plate pack snaking.

Optiwave Design
This exclusive design ensures even flow distribution across the plate surface, maximizing heat transfer and minimizing fouling rates, plate count, and cost.

Technical Specifications
The document provides a table with specifications for various NX models, including unit width, height, connection size, maximum flow rate, and design pressure. For example, the NX350M model has a unit width of 1,135 mm, a height of 3,113 mm, a connection size of DN350, a maximum flow rate of 2,070 m³/h, and a design pressure of 13.8 barg.

Catalog excerpts

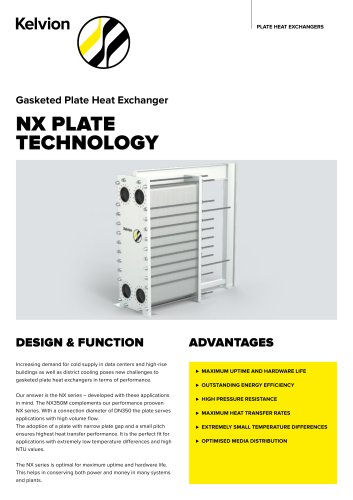

Gasketed Plate Heat Exchanger NX PLATE TECHNOLOGY-1

PLATE HEAT EXCHANGERS Gasketed Plate Heat Exchanger DESIGN & FUNCTION ADVANTAGES ► MAXIMUM UPTIME AND HARDWARE LIFE ► OUTSTANDING ENERGY EFFICIENCY ► HIGH PRESSURE RESISTANCE ► MAXIMUM HEAT TRANSFER RATES ► EXTREMELY SMALL TEMPERATURE DIFFERENCES ► OPTIMISED MEDIA DISTRIBUTION Increasing demand for cold supply in data centers and high-rise buildings as well as district cooling poses new challenges to gasketed plate heat exchangers in terms of performance. Our answer is the NX series - developed with these applications in mind. The NX350M complements our performance prooven NX series. With a connection diameter of DN350 the plate serves applications with high volume flow. The adoption of a plate with narrow plate gap and a small pitch ensures highest heat transfer performance. It is the perfect fit for applications with extremely low temperature differences and high NTU values. The NX series is optimal for maximum uptime and hardware life. This helps in conserving both power and money in many systems and plants.

Open the catalog to page 1

Gasketed Plate Heat Exchanger NX PLATE TECHNOLOGY-2

The NX plate series has a narrow plate gap and is supplementing the product porttfolio to serve customer needs with the perfect match for a demanding application. ECOLOC GASKET SYSTEM Kelvion's trademarked PosLoc plate design allows the GPHE plates to self-align and tightly seal every time the unit is closed. This feature virtually eliminates plate pack snaking, even if the frame is out of alignment and after repeated servicing. This distinctive feature provides you with years of stress free maintenance and operation. Kelvion's exclusive plate corrugation pattern allows even flow distribution...

Open the catalog to page 2
