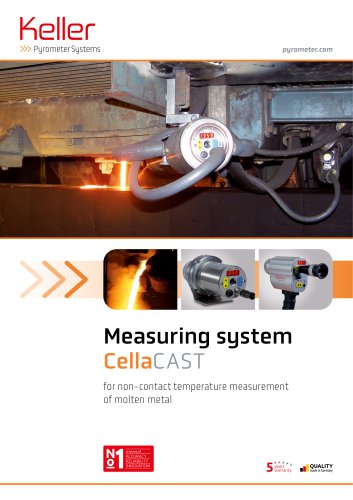

Measuring system Cella CASTfor non-contact temperature measurement of molten metal in terms oF

Application note Measuring system CellaCAST Measuring points in a casting plant 1 Melting furnace 2 Decanting the melt 3 Casting from the ladle Cupola furnace Casting gravity cast Transport ladle Pouring ladle Measurement of molten metal Temperature is one of the most critical process parameters affecting the resulting quality, strength and working properties of a metal casting. Molten metal which is too hot will damage the sand moulds. A temperature which is too low will result in low fluidity. Especially complex and thin-walled cast metal parts demand precisely controlled casting temperatures....

Solution The CellaCAST PA 80 is used to measure the temperature of liquid metal in runners. It has a very high-resolution optical system and therefore safely detects slag and oxide-free spots within the running melt even from a great distance. The temperature is measured and displayed periodically. The measurement readings can be displayed online, recorded and archived either with a data logger available on site or with the PC software CellaVIEW that comes with the CellaCAST system. For optical alignment and control of the target area the devices are equipped with through-the-lens sighting, a...

Video camera As an option, the pyrometer can be equipped with a built-in colour video camera to view the target. Based on the latest HDR (High Dynamic Range) technology, the camera provides a higher dynamic range from the imaging process and automatic exposure control. The video image appears without over-exposure and glare. Another special feature is TBC (target brightness control). The light sensitivity adapts dynamically to the target object captured within the measurement spot to produce a high-contrast image of the target, regardless of whether the object focused on is cooler or hotter than...

CellaCAST measuring system with mounting Video image with display of temperature and number of measuring location Analogue output Analogue output + Sync contact Set-point adjuster ¥¥¥¥ Terminal box with interface converter RS 485 <> USB PC with software CellaVIEW for display and logging of measured values and for remote control of the pyrometer

Application note Measuring system CellaCAST >>> Mountings consisting of: Oust stop PZ 10/T Intermediate tube PZ 20/C Air purge PZ 20/A Clamping collar PZ 20/L AF2 Cooling jacket closed PA 20/M AF1 Close nozzle Gl/8" Mounting for execution with video camera PA 83-003 consisting of: Dust stop PZ 10/T Intermediate tube PZ 20/C Air purge PZ 20/A Clamping collar PZ 20/L AF2 Cooling jacket closed PA 20/M AF2 Hose nozzle Gl/8" >>> Accessories >>> Software CellaVIEW Terminal box VK 30.02 Junction box with power supply 230 VAC/24VDC VA 20.01 Terminal box with interface converter RS 485 <-> USB VK 30.05...

etworking and communication N via the USB interface etworking and communication N via Ethernet interface with interface converter SU 04 (RS 485 <> USB) VK 30.06 Terminal box with interface converter SU 09 (RS 485 <> Ethernet) Network cable Networking, communication and video transmission via Ethernet Video cable VK 02/F Data cable VK 02/A Switch Network cable Ethernet Video encoder SU 08 Ethernet Interface converter SU 09 Ethernet Video encoder SU 08 The video image can be displayed on the PC using a standard player (e.g. VLC Player or Quicktime Player). © Keller · All rights reserved. 2026/08...
