Keller Pyrometer Systems
AN CellaAsphalt_ID2523_202610_en

AN CellaAsphalt_ID2523_202610_en

Product catalog summary

Overview: The document discusses the CellaASPHALT measuring system, designed for reliable and maintenance-free temperature measurement in asphalt mixing plants and asphalt pavers. It highlights the importance of precise temperature monitoring to ensure the quality and performance of asphalt.

Key Sections:

1. Importance of Temperature in Asphalt Production: Temperature is crucial for plant performance and the quality of the hot mix. It must be monitored during production and loading onto trucks to ensure long-term road surface quality.

2. Measuring Points:

Dryer Drum Exit: Monitors the temperature of mineral aggregate and reclaimed asphalt pavement (RAP) as they exit the drum, crucial for controlling burner operations.
Mixer Discharge and Truck Loading: Ensures the hot mix maintains a specific temperature for uniform quality and performance.
Asphalt Paver: Temperature limits must be observed during mix placement for quality compaction and bonding.

3. Solution - Pyrometers: Pyrometers are ideal for monitoring hot liquid materials. The CellaTEMP® PK 18 infrared thermometer is designed for harsh environments, featuring a stainless steel housing and a special lens resistant to impurities. It provides reliable and precise temperature readings without maintenance.

4. Technical Specifications:

Type: PK 18 AF 1
Measuring Range: 0 - 500 °C / 32 - 932 °F
Output: 0/4 - 20 mA / switching output
Configuration Parameters: Emissivity, smoothing filter, peak picker, key lock, temperature units, simulation, test function
Dimensions: Ø 30 x 183 mm
Protection: IP 65 (splash-water proof)

5. Accessories: Includes mounting assembly, thermal insulation tube, air purge, clamping collar, and supplementary tube.

6. Compliance and Contact Information: The system complies with DIN EN ISO 9001, 14001, and 50001 standards. Contact details for sales and service centers in China, India, and the USA are provided.

Catalog excerpts

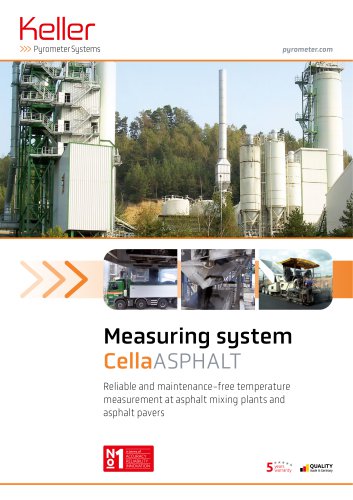

Measuring system Cella ASPHALT Reliable and maintenance-free temperature measurement at asphalt mixing plants and asphalt pavers

Open the catalog to page 1

Measuring system CellaASPHALT Measuring points in asphalt mixing plants and asphalt pavers 1 Dryer drum exit 2 Mixer 3 2 1 Asphalt mixing plants and asphalt pavers ixer discharge and truck M loading operations In asphalt production, process temperature is a crucial factor in plant performance and the properties of the hot mix. To ensure long-term quality of the road surface, temperatures must be precisely monitored during the production process and as the hot mix is loaded onto trucks. Common to all asphalt plants are the severe environmental conditions. A temperature detection device will be...

Open the catalog to page 2

Solution Pyrometers are ideal for monitoring temperatures of a hot liquid material. A pyrometer detects the infrared radiation emitted from an object at a safe distance, without surface contact, an produces an accurate temperature reading. Most commercially available pyrometers will not hold up to the aggressive furnes and dust present at asphalt mixing plants. Lenses are especially sensitive to such harsh industrial environments. The CellaTEMP® PK 18 infrared thermometer was especially designed for use at asphalt and concrete plants and features a stainless steel housing as well as a special...

Open the catalog to page 3

international sales partners Keller HCW GmbH | Pyrometer Systems Carl-Keller-Str. 2-10 | 49479 Ibbenbüren | Germany Tel. +49 5451 85-0 | pyrometer.com | [email protected] Sales and Service Center People's Republic of China German Tech Co. Ltd. | 100096 Beijing www.keller-its.cn | Tel. +86 (0) 10 828 679-20 [email protected] Republic of India Keller ITS India LLP | 603204 Chennai, Tamil Nadu www.keller-itsindia.com | Tel. +91 (0) 98841 11025 [email protected] United States of America Pyrometer LLC | Ewing, NJ 08638 www.pyrometer.com | Tel. +1 609 443-5522 [email protected] You...

Open the catalog to page 4
