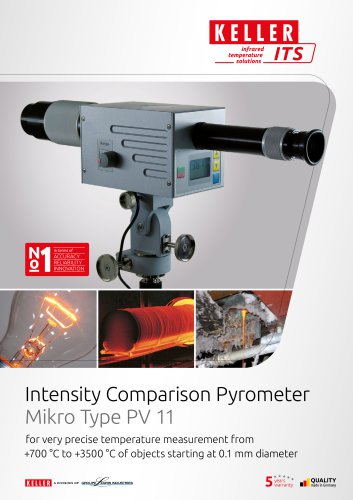

Intensity Comparison Pyrometer MikroType PV11 for very precise temperature measurement from +700 °C to +3500 °C of objects starting at 0.1 mm diameter warranty H made In Germany

Intensity Comparison Pyrometer Mikro PV 11 • Measuring range from 700 °C to 3500 °C • Large field of view for the recognition of the measuring object • Sharply defined picture of the measuring object • Very high accuracy • Very small influence of the emissivity factor due to the short spectral sensitivity • Easy adjustment in case of variable measuring distances • Measurement of very small objects starting at 0.1 mm • Extremely high optical resolution • The brightness of the comparing light source is continuously measured by a patented process, thereby aging effects are compensated. The principle...

Infrared temperature _solutions — JTSJ Technical dataMeasuring range • +700 to +3500 °C, subdivided into 6 partial ranges • up to +3500 °C with attachable filter Measuring distances • Without supplementary lens: 1 m to ■» • With supplementary lenses: 0.2 m to 1 m Min. target diameter • 0.3 mm at a distance of 1 m • 0.1 mm at a distance of 0.2 m (with supplementary lens) Sighting device • True sided through-the-lens sighting with dioptric compensation, faded-in comparison marking, focus-sable optic Aiming support • cross head: horizontally: 360 ° vertically: 90 ° Adjustable parameter • Emissivity...

Creating Solutions infrared temperature _solutions - ITS I • Headquarters ■ Sales and Service Center □ Sales abroad Infrared Temperature Solutions (ITS) Carl-Keller-Stra^e 2 - 10 49479 Ibbenburen-Laggenbeck Germany Sales and Service Center ornmmoFrankreich www.keller.de/its Spanien www.umi.es China www.keller-its.cn Indien www.keller-itsindia.com Tel. +91 (0) 98841 11025 [email protected] Korea www.ultratec.co.kr
