Keithley Instruments

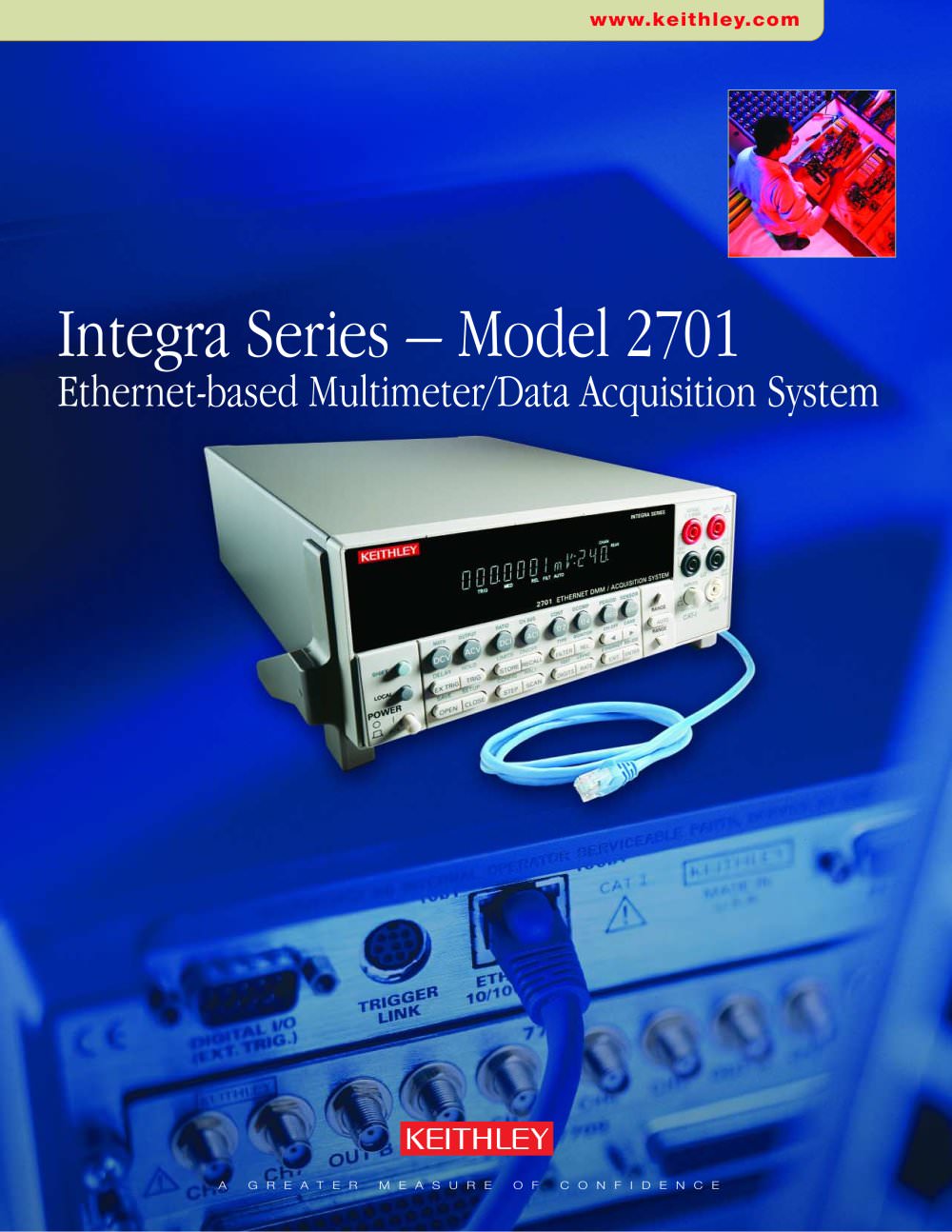

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System

Product catalog summary

Overview: The Keithley Model 2701 is an Ethernet-based multimeter/data acquisition system, part of the Integra Series, designed for precision measurement, switching, and control. It features a 6½-digit, 22-bit A/D converter for high precision and noise rejection, and supports Ethernet communication for remote measurement capabilities.

Key Features:

Supports up to 80 differential channels with built-in signal conditioning.
Offers 14 measurement/control functions including temperature, voltage, current, resistance, frequency, and more.
Includes battery-backed memory for data protection during power failures.
Features a built-in web diagnostic interface for easy communication and debugging.
Compatible with various plug-in modules for flexible configuration.

Applications:

Burn-in/Stress Testing: Provides centralized control of multiple test stands, secure data storage, and reduced yield losses.
Industrial Monitoring: Enables continuous monitoring of equipment, high precision in noisy environments, and automatic alarm notifications.
Research and Development: Facilitates remote diagnostics, modular scalability, and cost-effective high precision measurements.

Networking and Software:

Connects directly to Ethernet ports without additional hardware.
Supports TCP/IP protocol for fast communication.
Includes free start-up software and advanced options like ExceLINX-1A for data logging in Excel.
IVI (VISA-Based) instrument driver available for custom programming.

Additional Models:

Model 2700: GPIB/RS-232 system for up to 80 channels.
Model 2750: High channel count system for larger applications.

Specifications: The document outlines specifications for DC voltage, thermocouple, resistance, RTD, thermistor, DC current, AC voltage, frequency, and period measurements, detailing range, resolution, accuracy, and other parameters.

Model Features: The models offer Ethernet, GPIB, and RS-232 communication options, built-in web tools, and different scanning rates. They handle multiple channels and store large amounts of data.

System Features: Systems include expansion slots, scanning channels, trigger sources, and data storage capabilities, with power fail recovery, real-time clock, and alarm limits for enhanced functionality and reliability.

Additional Information: The document provides contact information for technical support and additional resources such as application notes, white papers, and handbooks available on the Keithley website, emphasizing the company's commitment to reliable support and solutions.

Catalog excerpts

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System-2

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:12.00pt "Palatino Linotype", serif; } .font2 { font:13.00pt "Palatino Linotype", serif; } .font3 { font:28.00pt "Palatino Linotype", serif; } .font4 { font:34.00pt "Palatino Linotype", serif; } .font5 { font:6.00pt "Times New Roman", serif; } Instrument-quality, networked measurement o o 0 > m x The Model 2701 is the latest addition to Keithley's popular Integra Sries instruments line. All Integra Series products combine precision measurement, switching, and control in a...

Open the catalog to page 2

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System-3

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Palatino Linotype", serif; } .font3 { font:10.00pt "Palatino Linotype", serif; } .font4 { font:34.00pt "Palatino Linotype", serif; } control system Corporate Network The Model 2701 Ethernet-based Multimeter/Data Acquisition System brings superior measurement integrity together with remote measurement capabilities in one highly integrated system. It's ideal for distributed data acquisition applications because it provides...

Open the catalog to page 3

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System-4

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Palatino Linotype", serif; } .font2 { font:21.00pt "Palatino Linotype", serif; } .font3 { font:28.00pt "Palatino Linotype", serif; } Fast, long distance communication meets high measurement accuracy o o 0 < If there's a power failure, valuable data isprotected with the battery-backed non-volatile memory and scans can automatically be resumed right where they stopped when power returns. Open lead detection protects against false readings due to lead disconnections....

Open the catalog to page 4

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System-5

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:4.00pt "Palatino Linotype", serif; } .font3 { font:5.00pt "Palatino Linotype", serif; } .font4 { font:6.00pt "Palatino Linotype", serif; } .font5 { font:7.00pt "Palatino Linotype", serif; } .font6 { font:7.50pt "Palatino Linotype", serif; } .font7 { font:8.00pt "Palatino Linotype", serif; } .font8 { font:9.00pt "Palatino Linotype", serif; } .font9 { font:21.00pt "Palatino Linotype", serif; } .font10 { font:28.00pt "Palatino Linotype",...

Open the catalog to page 5

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System-6

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:56.00pt "Arial Black", sans-serif; } .font3 { font:8.00pt "Palatino Linotype", serif; } .font4 { font:10.00pt "Palatino Linotype", serif; } .font5 { font:28.00pt "Palatino Linotype", serif; } .font6 { font:8.00pt "Times New Roman", serif; } Model 2701 Applications The Model 2701's versatility makes it ideal for use on the factory floor, in quality control labs, and in R&D settings. Here are some typical applications: Electronic...

Open the catalog to page 6

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System-7

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Palatino Linotype", serif; } .font3 { font:7.00pt "Palatino Linotype", serif; } .font4 { font:8.00pt "Palatino Linotype", serif; } .font5 { font:21.00pt "Palatino Linotype", serif; } .font6 { font:28.00pt "Palatino Linotype", serif; } Ideal for single- or multi-unit distributed applications The Model 2701 is an Ethernet-based instrument, so it can be used in a variety of network applications. It can be con-figured on its...

Open the catalog to page 7

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System-8

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Palatino Linotype", serif; } .font3 { font:28.00pt "Palatino Linotype", serif; } Powerful, easy-to-use software tools o c m R o m z a The Model 2701 offers a wide range of software tools, including free start-up software and drivers and more advanced optional packages. All these software tools are designed to communicate with the instrument through the industry-standard Windows TCP/IP socket interface. Free built-In Web...

Open the catalog to page 8

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System-9

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Palatino Linotype", serif; } .font3 { font:7.00pt "Palatino Linotype", serif; } .font4 { font:8.00pt "Palatino Linotype", serif; } .font5 { font:6.00pt "Times New Roman", serif; } ) Integra Sries TestPoint application development package If the free start-up software doesn't provide a feature the job demands, there's no prob-lemjust use the economical TestPoint application development package to modify it. TestPoint's object-oriented,...

Open the catalog to page 9

Integra Series – Model 2701 Ethernet-based Multimeter/Data Acquisition System-10

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Palatino Linotype", serif; } .font3 { font:7.00pt "Palatino Linotype", serif; } .font4 { font:8.00pt "Palatino Linotype", serif; } .font5 { font:21.00pt "Palatino Linotype", serif; } .font6 { font:28.00pt "Palatino Linotype", serif; } Other Integra Sries Systems The Models 2700 and 2750-GPIB/RS-232 Systems o o o m Model 2700 Multimeter/Data Acquisition System The Model 2700 is a lower cost, two-slot GPIB/RS-232 system that...

Open the catalog to page 10
