High Power System SourceMeter® Instrument

Product catalog summary

Introduction
The Model 2651A is a high power System SourceMeter instrument from the Series 2600A family, designed for testing and characterizing high power electronics. It is ideal for R&D, reliability, and production applications, including high brightness LEDs, power semiconductors, and batteries.

Key Features

Four-quadrant voltage and current source/load with precision meters.
Functions as a semiconductor characterization instrument, waveform generator, pulse generator, precision power supply, current source, digital multimeter, and electronic load.
Capable of sourcing or sinking up to ±40V and ±50A.
Two measurement modes: Digitizing (1,000,000 readings/second) and Integrating (22-bit A/D converters).
High-speed pulsing with pulse widths from 100μs to DC and duty cycles from 1% to 100%.
Expansion capabilities with TSP-Link technology for up to 64 channels.

Applications

Characterization and testing of power semiconductors, HBLEDs, and optical devices.
Characterization of GaN, SiC, and other compound materials.
Semiconductor junction temperature characterization and electromigration studies.

Specifications

Maximum output power: 2,000W pulsed, 200W DC.
Measurement speed: Up to 1MHz sampling rate.
Voltage accuracy: 0.02% + 500μV for 100mV range.
Current accuracy: 0.1% + 500pA for 100nA range.

Additional Features

Includes TSP Express software, LabVIEW driver, and Test Script Builder software.
Supports GPIB, LXI, Digital I/O, and TSP-Link for multi-channel synchronization.
USB port for data and test program storage.

Ordering Information
The Model 2651A comes with various accessories including low impedance cable assembly, high current connectors, and a digital I/O connector.

Catalog excerpts

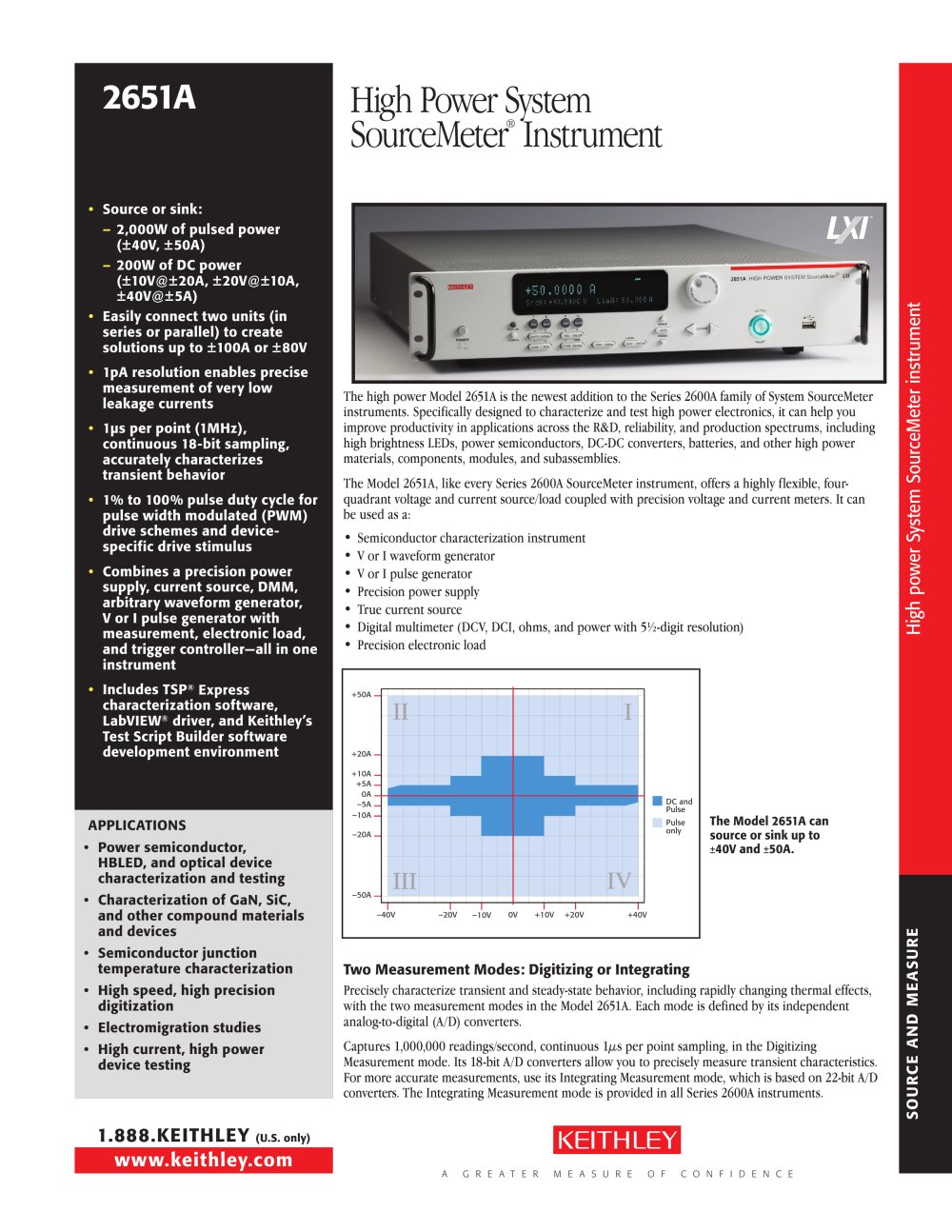

High Power System SourceMeter® Instrument-1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:11.00pt "Arial", sans-serif; } .font7 { font:20.00pt "Arial", sans-serif; } .font8 { font:10.00pt "Georgia", serif; } .font9 { font:7.00pt "Palatino Linotype", serif; } .font10 { font:8.00pt "Palatino Linotype", serif; } .font11 { font:19.00pt "Palatino Linotype", serif; } 2651A High Power System SourceMeter® Instrument Source or sink: - 2,000W of pulsed power (±40V, ±50A) - 200W of DC power (±10V@±20A, ±20V@±10A, ±40V@±5A) Օ Easily connect two units (in series or parallel) to create solutions up to ±100A or ±80V 1pA resolution enables precise measurement of very low leakage currents Օ 1us per point (1MHz), continuous 18-bit sampling, accurately characterizes transient behavior 1 % to 100% pulse duty cycle for pulse width modulated (PWM) drive schemes and device-specific drive stimulus Օ Combines a precision power supply, current source, DMM, arbitrary waveform generator, V or I pulse generator with measurement, electronic load, and trigger controllerall in one instrument ו Includes TSP® Express characterization software, LabVIEW® driver, and Keithley's Test Script Builder software development environment c cd E The high power Model 2651A is the newest addition to the Series 2600A family of System SourceMeter instruments. Specifically designed to characterize and test high power electronics, it can help you improve productivity in applications across the R&D, reliability, and production spectrums, including high brightness LEDs, power semiconductors, DC-DC converters, batteries, and other high power materials, components, modules, and subassemblies. The Model 2651A, like every Series 2600A SourceMeter instrument, offers a highly flexible, four-quadrant voltage and current source/load coupled with precision voltage and current meters. It can be used as a: Semiconductor characterization instrument Օ V or I waveform generator V or I pulse generator Օ Precision power supply True current source Օ Digital multimeter (DCV, DCI, ohms, and power with 5%-digit resolution) Precision electronic load cd o x The Model 2651A can source or sink up to ±40V and ±50A. APPLICATIONS Օ Power semiconductor, HBLED, and optical device characterization and testing Characterization of GaN, SiC, and other compound materials and devices Օ Semiconductor junction temperature characterization High speed, high precision digitization Օ Electromigration studies High current, high power device testing Two Measurement Modes: Digitizing or Integrating Precisely characterize transient and steady-state behavior, including rapidly changing thermal effects, with the two measurement modes in the Model 2651A. Each mode is defined by its independent analog-to-digital (A/D) converters. Captures 1,000,000 readings/second, continuous 1/xs per point sampling, in the Digitizing Measurement mode. Its 18-bit A/D converters allow you to precisely measure transient characteristics. For more accurate measurements, use its Integrating Measurement mode, which is based on 22-bit A/D converters. The Integrating Measurement mode is provided in all Series 2600A instruments. 1.888.KEITHLEY (u.s.only) www.keithley.com A GREATER MEASURE OF CONFIDENCE

Open the catalog to page 1

High Power System SourceMeter® Instrument-2

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:9.10pt "Arial", sans-serif; } .font7 { font:10.00pt "Arial", sans-serif; } .font8 { font:11.00pt "Arial", sans-serif; } .font9 { font:20.00pt "Arial", sans-serif; } .font10 { font:12.00pt "Franklin Gothic Medium", sans-serif; } .font11 { font:8.00pt "Georgia",...

Open the catalog to page 2

High Power System SourceMeter® Instrument-3

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:11.00pt "Arial", sans-serif; } .font7 { font:15.00pt "Arial", sans-serif; } .font8 { font:20.00pt "Arial", sans-serif; } .font9 { font:12.00pt "Franklin Gothic Medium", sans-serif; } .font10 { font:8.00pt "Georgia", serif; } .font11 { font:5.00pt "Palatino...

Open the catalog to page 3
