Syringe Pump

Syringe Pump
1 / 2 PagesView full catalog

Syringe Pump

Product catalog summary
Overview: The document introduces the KDS 310 Plus, a nanoliter syringe pump designed for laboratory use, offering precise fluid delivery with a range of syringes from 0.5 µl to 250 µl. It is not FDA-approved for clinical use.
Specifications: The KDS 310 Plus features a microprocessor-controlled stepper motor with a force of 2 lbs, capable of delivering flow rates from 0.001 µl/min to 363.7 µl/min. It operates on a voltage range of 110-130V or 220-260V, with dimensions of 9x6x3 inches for the controller and 7x1.7x2 inches for the injector.
Features: Key features include quick setup, a remote injector up to 6 feet away, a power failure mode, and optional footswitch interface for hands-free operation. It supports both infuse and withdraw modes, with a typical accuracy of 1% or better.
Applications: The pump is suitable for continuous fluid delivery, small dose dispensing, stereotaxic injections, and microfluidic dispensing, serving markets such as pharmaceutical, biotech, chemical, and neuroscience.
Flow Rates: The document provides detailed flow rate specifications for various syringe sizes, ranging from 0.5 µl to 250 µl, with corresponding Hamilton ID measurements.
Options: Available options include a footswitch interface and additional injectors.
Contact Information: KD Scientific, located at 84 October Hill Road, Holliston, Massachusetts, provides contact details for further inquiries.
See more

Catalog excerpts

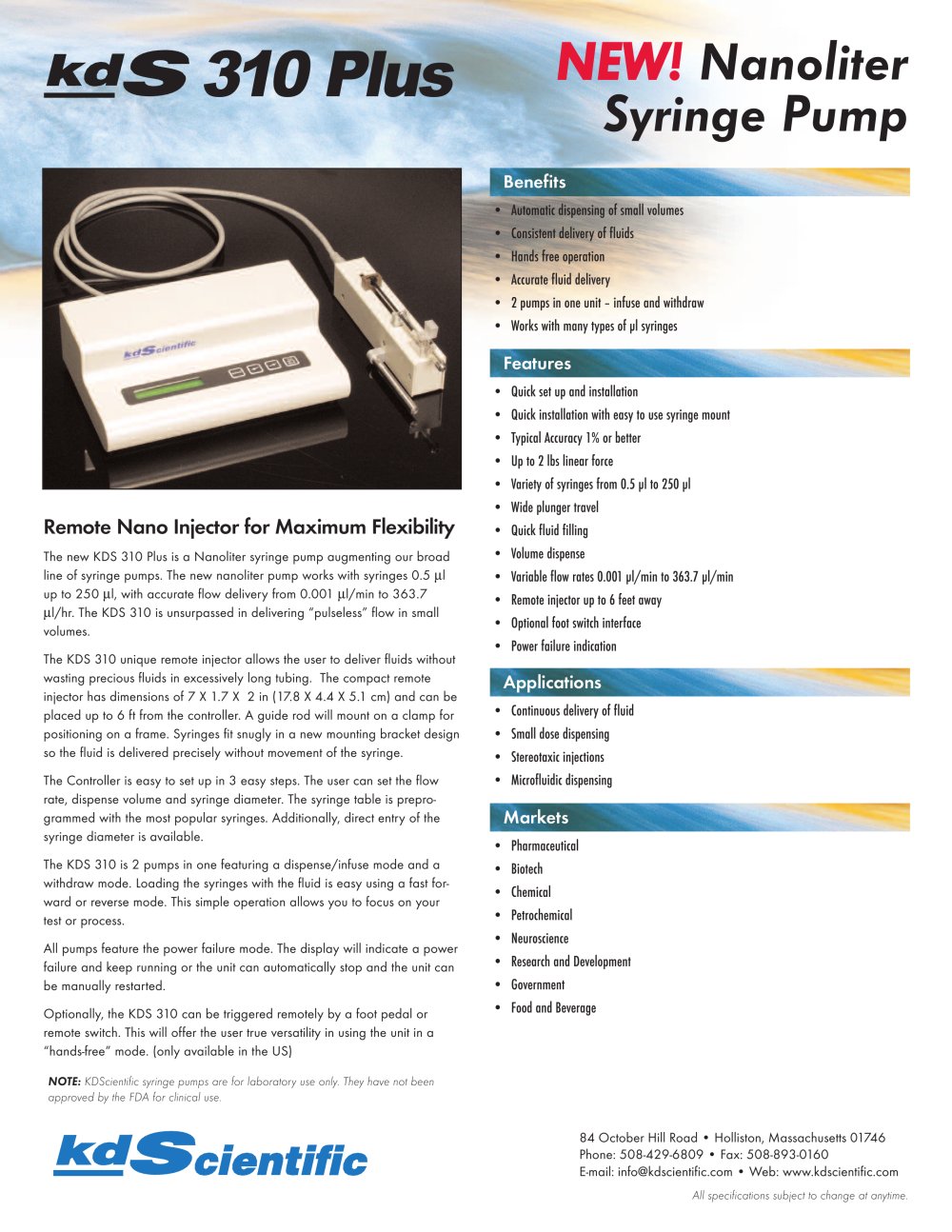

Syringe Pump-2

KDS 310 Plus InjectorRounded or flat plunger heads.Adjustable syringe clamp. Removableguide rod for easy adjustments. KDS 310 Plus Mounted on a Stereotaxic Frame ModelModel 310 Plus > KDS 310 Plus with Optional Footswitch Syringe Size0.5Ֆ250 microliterElectrical RatingUS model 115V~, 0.125A CE model 230V~, 0.05A Fuse5x20 mm, 250V~ slow blow 0.1A @115 Volt ; 0.05A @ 230VoltVoltage Operating RangeModel 110-130V~, 50/60Hz Model 220-260 V~,50/60HzDrive MechanismMicroprocessor controlled stepper motor (1⁄2 microstep), leadscrew Force2 lbs (minimum) Pusher Advance Per Half Step1.58 microns Minimum...

 Open the catalog to page 2
