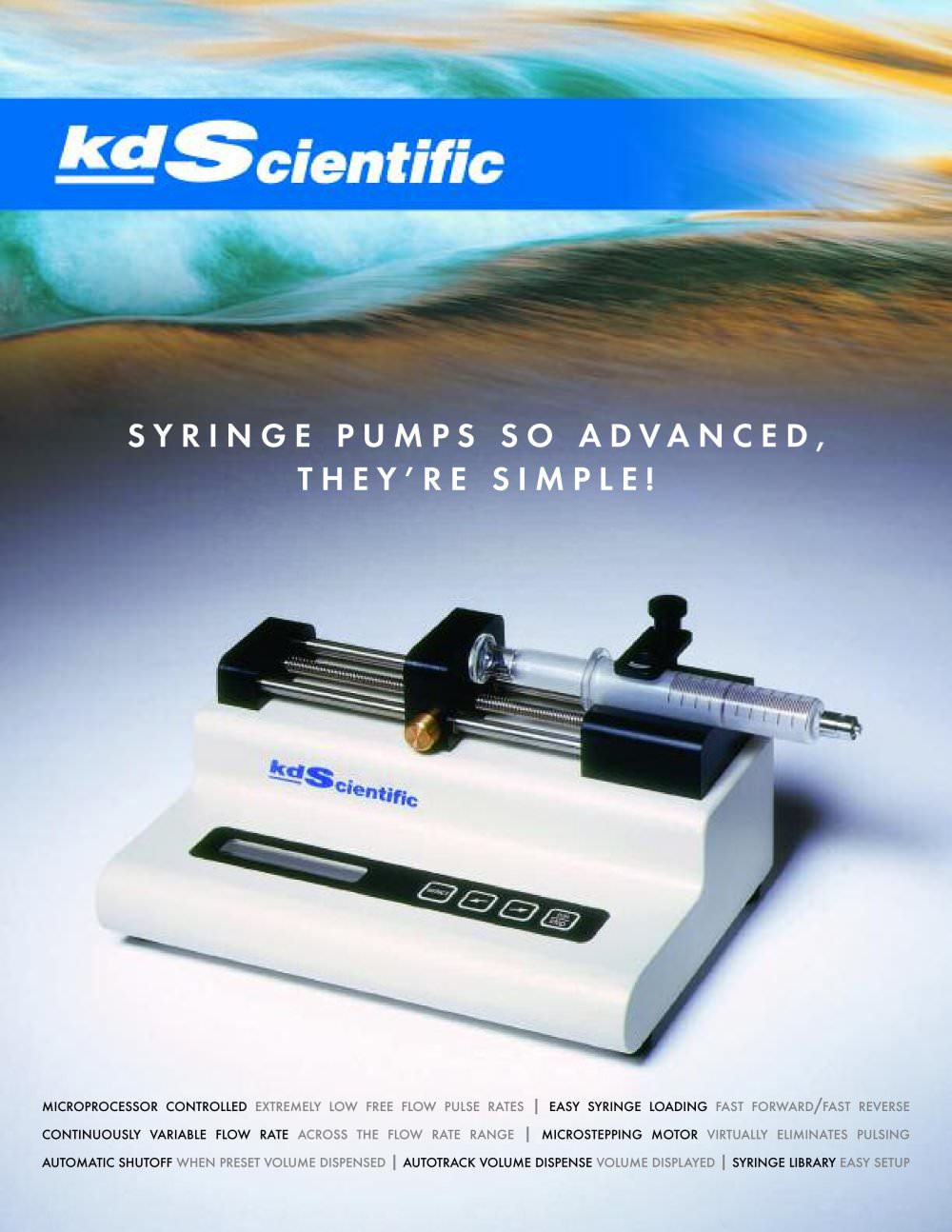

KD Scientific syringe pump brochure

Product catalog summary

Overview: KD Scientific offers a range of advanced syringe pumps designed for precise and smooth fluid delivery in various applications, including research, pilot plants, and production. These pumps are known for their quality, accuracy, and reliability at economical prices.

Key Features:

Microprocessor-controlled with extremely low free flow pulse rates.
Easy syringe loading with fast forward/reverse capabilities.
Continuously variable flow rate and microstepping motor to eliminate pulsing.
Automatic shutoff when preset volume is dispensed and volume display.
Backlit LCD for easy reading and power failure indication.
Durable construction with welded seams and stall indication.
RS232 interface for computer control and network capability for up to 99 pumps.

Product Range:

KDS 100 Series: Single-syringe infusion pump with a flow range up to 519 ml/hr, ideal for cost-effective fluid infusion.
KDS 200 Series: Advanced features with RS232 and TTL interfaces, suitable for creating a pumping network.
KDS 250: Four-syringe nanoliter infusion pump with independent clamping for different syringe sizes.
KDS 101: Two-syringe nanoliter pump for micro-dialysis and low flow rate applications.
KDS 220: Multi-syringe infusion pump holding up to 10 syringes, ideal for multiple syringe applications.
KDS 210 & 230: Infusion/withdrawal pumps with multiple modes and independent rate settings.
KDS 310: Nanoliter syringe pump with remote pump head for space-limited applications.
KDS 270 & 260: Continuous cycle and push-pull pumps for simultaneous infusion and withdrawal.

Programmable Features: The KDS 200 Series offers keypad programmable options, allowing users to customize programs for flow rates, direction, and cycle counts. Programs are stored in non-volatile memory for ease of use.

Accessories: Includes footswitch for remote operation, daisy chain cable for connecting multiple pumps, and RS232 cable for interface connectivity.

Specialty Pumps: The KDS 330 emulsifier pump is designed for emulsifying viscous fluids, reducing manual preparation time.

Specifications: Detailed specifications are provided for each model, including syringe capacity, flow rates, dimensions, weight, and accuracy.

Note: KD Scientific syringe pumps are intended for laboratory use only and are not FDA-approved for clinical use on humans.

Catalog excerpts

FASTREVERSE CONTINUOUSLYVARIABLEFLOWRATE ACROSSTHEFLOWRATERANGE > MICROSTEPPINGMOTOR VIRTUALLYELIMINATESPULSING AUTOMATICSHUTOFF WHENPRESETVOLUMEDISPENSED >

Open the catalog to page 1

Syringes OneTwo Two TenFour Max. No. and Size 10 l - 60 ml each 10 յl - 10 ml each10 l - 140 ml each10 յl - 10 ml each10 l - 10 ml eachSix(each syringe can 20 ml - 60 ml eachbe a different size)Four100 ml - 140 ml each Dimensions 9 x 6 x 5 in9 x 6 x 5 in11 x 9 x 6 in11 x 12 x 6 in11 x 9 x 6 in(23 x 15 x 12 cm)(23 x 15 x 12 cm)(28 x 23 x 15 cm)(28 x 23 x 15 cm)(28 x 23 x 15 cm) Weight 4.5 lb (2 kg)5 lb (2.3 kg)9 lb (4 kg)9.5 lb (4.3 kg)9 lb (4 kg) Min. Flow Rate > (10 յl syr) 0.1 l/hr0.001 յl/hr0.001 l/hr0.001 յl/hr0.001 l/hr Max. Flow Rate 10 ml syringe 127 ml/hr0.351 ml/min21 ml/min21 ml/min21...

Open the catalog to page 7

84 October Hill Road, Holliston, MA 01746phone 508.429.6809 fax 508.893.0160 e-mail [email protected] >
