High Pressure Pump
Product catalog summary
Introduction
The KDS 410 is a high-pressure syringe pump designed for demanding applications, offering more than double the linear force of the KDS 200 series. It is suitable for chemical applications and handling viscous fluids, featuring robust syringe holders and dual clamping mechanisms for various syringe sizes.
The KDS 410 is a high-pressure syringe pump designed for demanding applications, offering more than double the linear force of the KDS 200 series. It is suitable for chemical applications and handling viscous fluids, featuring robust syringe holders and dual clamping mechanisms for various syringe sizes.
Specifications
- Model: KDS 410
- Syringe Size: 10 µl to 140 ml
- Force: >100 lbs
- Voltage: US 110 - 125 VAC, CE 220 - 260 VAC
- Drive Mechanism: Microprocessor-controlled stepper motor
- Dimensions: 15 x 28 x 24 cm
- Weight: 6.4 kg
Features
- Quick setup and installation
- High-pressure syringe clamps
- Power failure indication
- RS-232 interface for remote control
- Power reduction mode
- Flow rate range: 0.826 µl/hr to 21.12 ml/min using a 10 ml syringe
Benefits
- High-pressure dispensing
- Automatic dispensing of small volumes
- Consistent fluid delivery
- Hands-free operation
Applications
- Continuous fluid delivery
- Pilot plant reactor dosing
- Dispensing viscous fluids
Flow Rates
The pump supports a wide range of flow rates depending on the syringe size, from 0.001 µl/hr using a 10 µl syringe to 146.7 ml/min using a 140 ml syringe.
The pump supports a wide range of flow rates depending on the syringe size, from 0.001 µl/hr using a 10 µl syringe to 146.7 ml/min using a 140 ml syringe.
Options
- Alarm indication at end of travel
- Foot switch
- Multi-step programming
Conclusion
The KDS 410 is ideal for high-pressure applications requiring precise and consistent fluid delivery, with features that support both laboratory and industrial needs.
The KDS 410 is ideal for high-pressure applications requiring precise and consistent fluid delivery, with features that support both laboratory and industrial needs.
See more

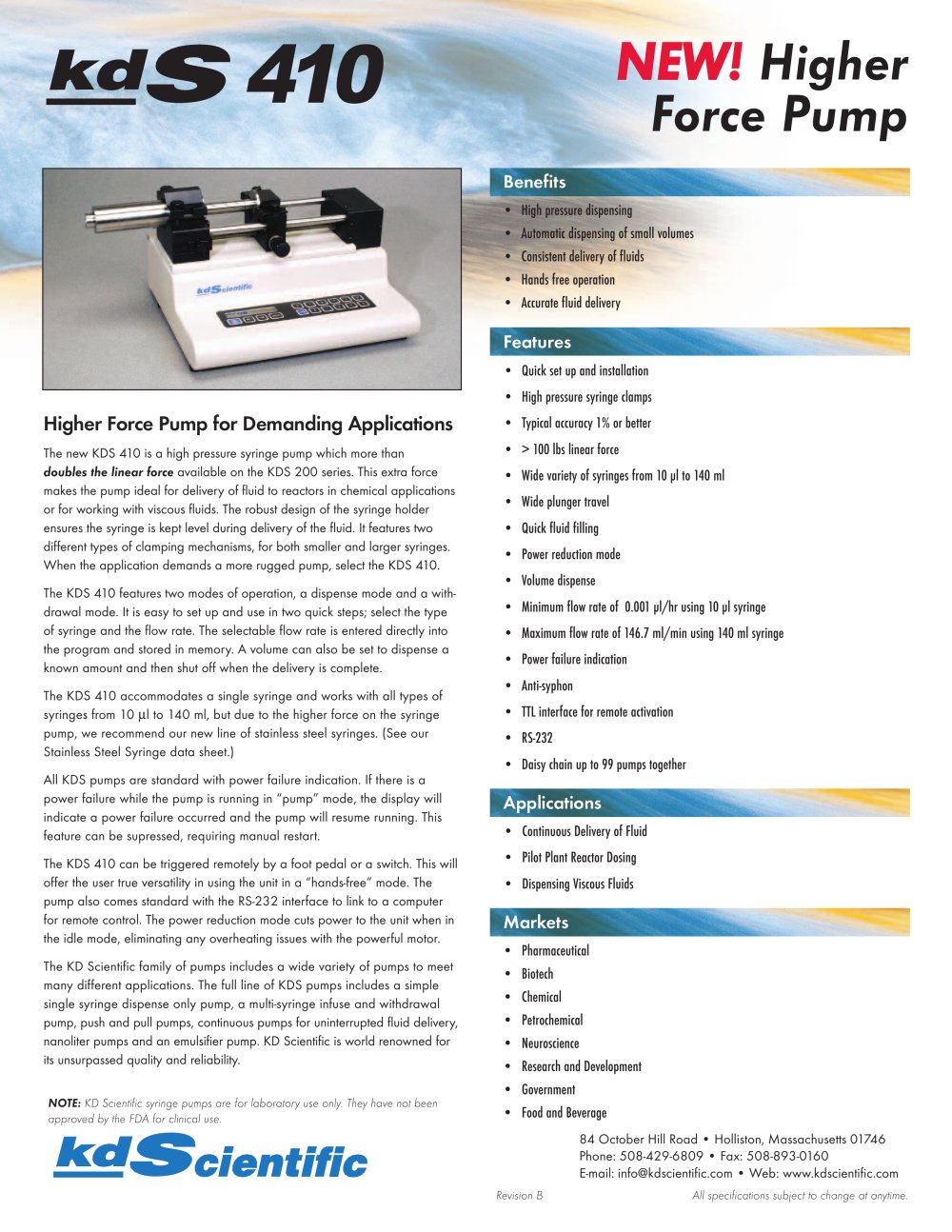

Catalog excerpts
ModelModel KDS 410 Syringe Size10 l to 140 mlFuse115 V, 5 x 20 mm, 250 V 0.25 A T slow blow 240 V, 0.125 A T slow blowVoltage Operating RangeUS 110 - 125 VAC, 0.25 A, 50/60 Hz CE 220 - 260 VAC, 0.125 A, 50/60 HzDrive MechanismMicroprocessor controlled stepper motor1/2 - 1/16 microstepping, driving a lead screw through a belt and pulley drive mechanism Force>100 lbsPusher Advance Per Micro Step1/16 step, 0.165365 micron or 0.0000065 in Volume per Microstep1/16 step with 60 ml BD syringe 0.0917 յl Speed Range2.56 x 10 > 4 :1Stepping Rate:Minimum1 step/120 seconds Maximum1600 1/2 steps/secondLinear...
